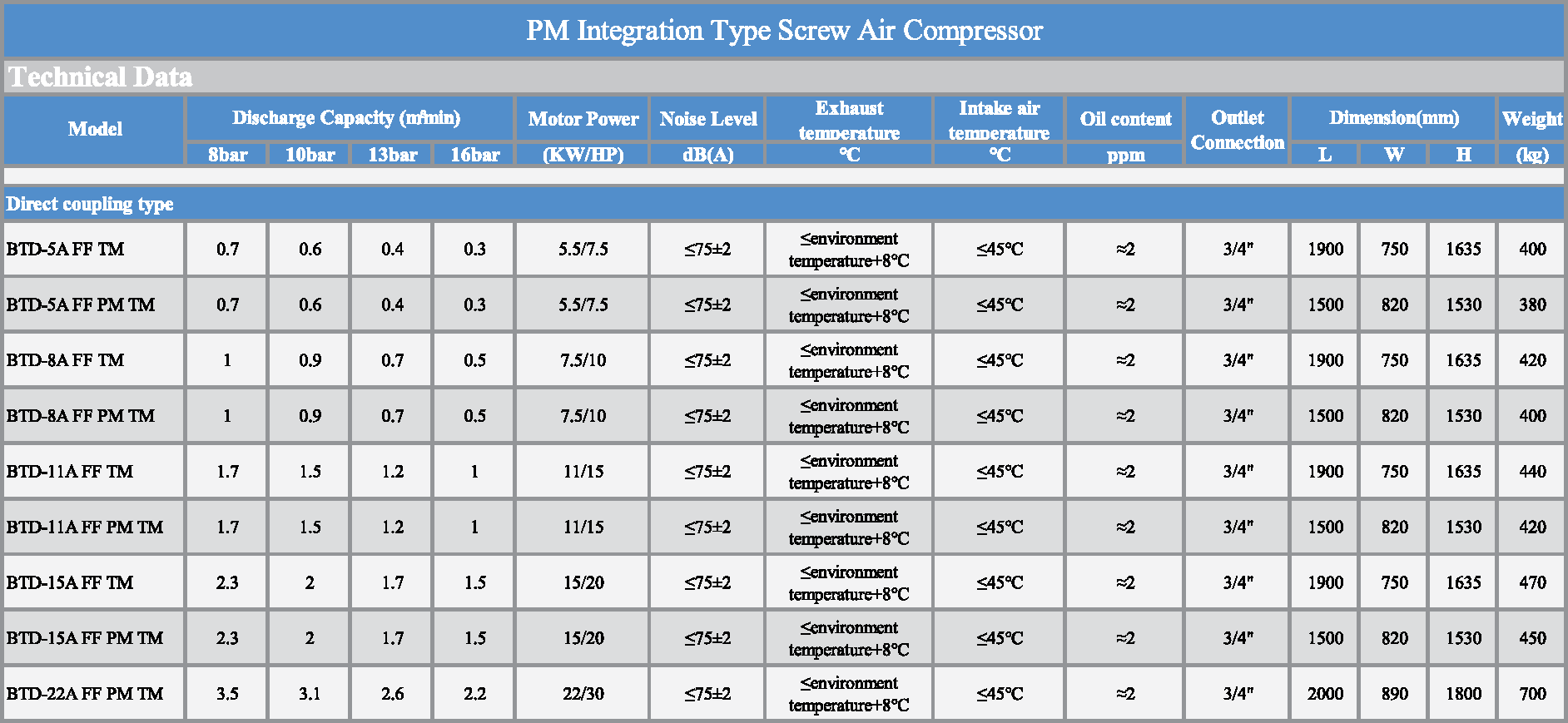

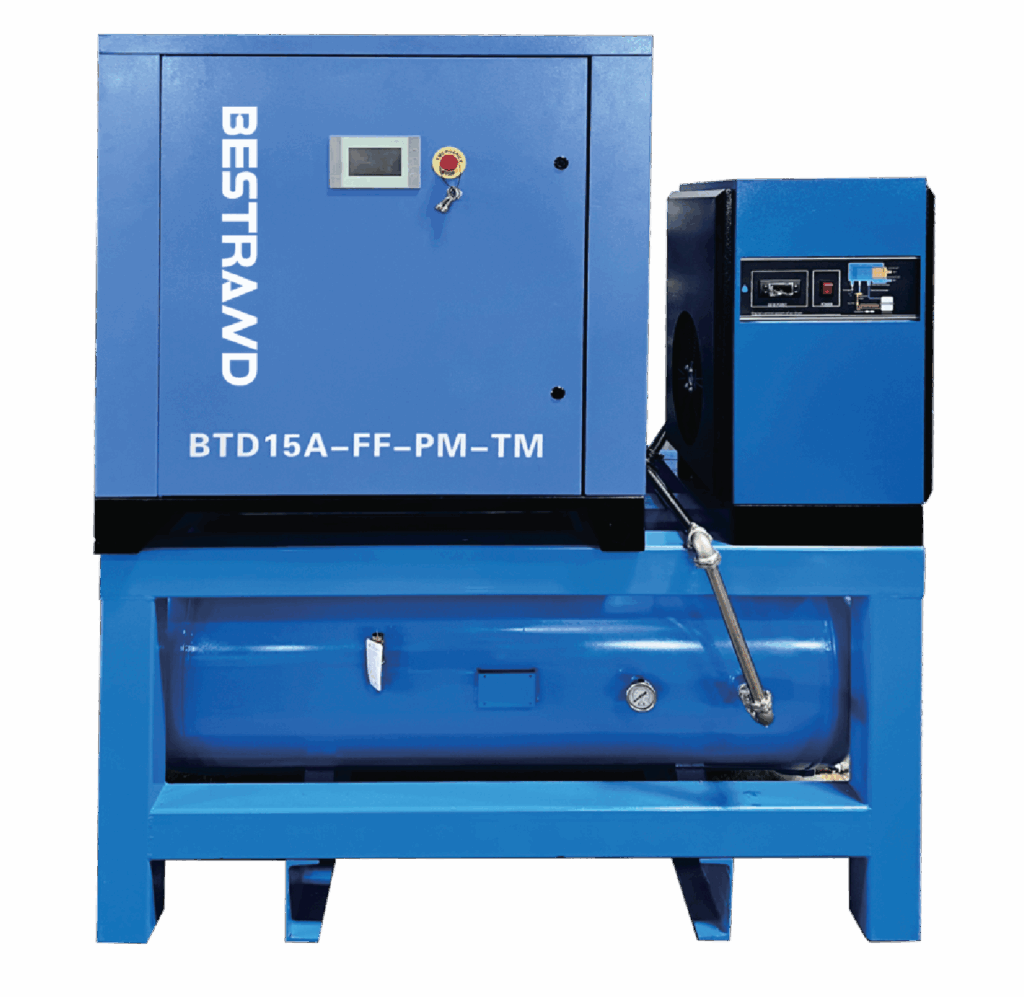

The displacement volume of the integration type unit series
of' BTD 5-22 A-TM with the cooling and drying machine:0.7-3.5m3,
pressure:7-16bar, motor power:5KW-22KW. The cooling and drying machine is set
up in the case of the compressor, and there is no extra room and extra
installation cost for the cooling and drying machine and it can be connected by
all the pipes and interior cables. The series of the compressor enjoys the
compact structure and little area. Its usage is very simple and convenient, and
the air pipe can be used only when the power source is turned, with no need of
allocating the cooling and drying machine and the pipeline again. The overall
performance design enjoys incomparable advantages;

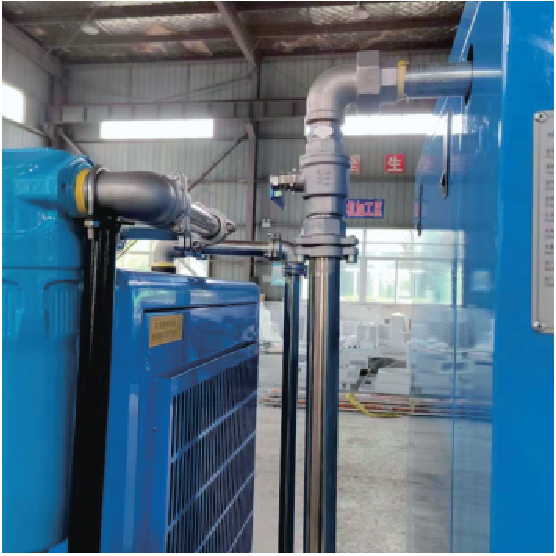

If necessary, the operation of the compressor can be set up
as the way without the cooling and drying machine, and it can be fulfilled by
the existing and simple bypasses in the system. If there is a failure for the
cooling and drying machine, the simple bypass can guarantee the continuous
operation of the compressor;

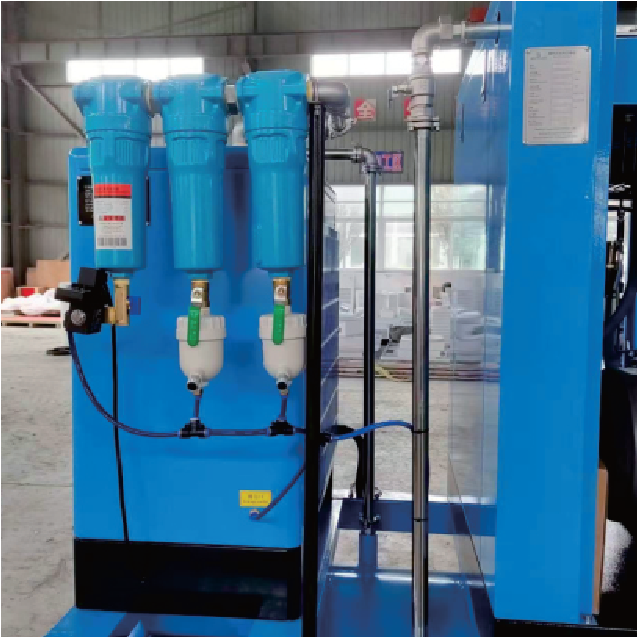

The whirlwind type separation o fair and water equipped with
the condensed liquid should be set up in front of the cooling and drying
machine, and the majority of the condensed liquid will be removed before the
cooling and drying machine. The cooling. and drying machine is equipped with an
electrical condensed liquid expeller of the liquid level control with no loss,

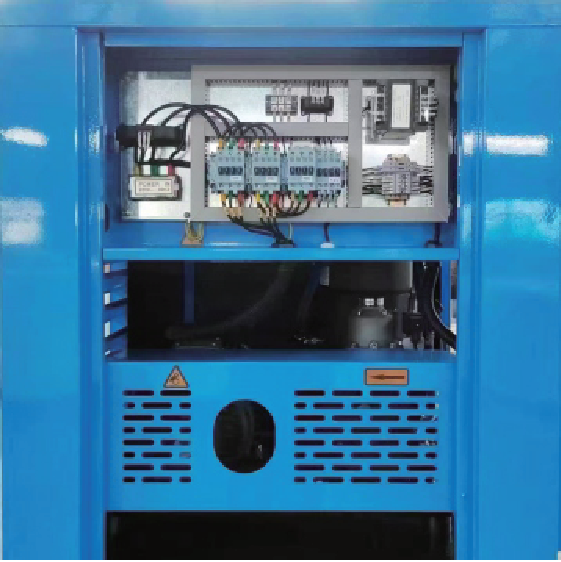

also as the standard equipment. he operation control and inspection display of
the cooling and drying machine will be clearly shown on the control panel of
the compressor. The daily maintenance of the cooling and drying machine and the
compressor is very convenient and will not influence each other.
