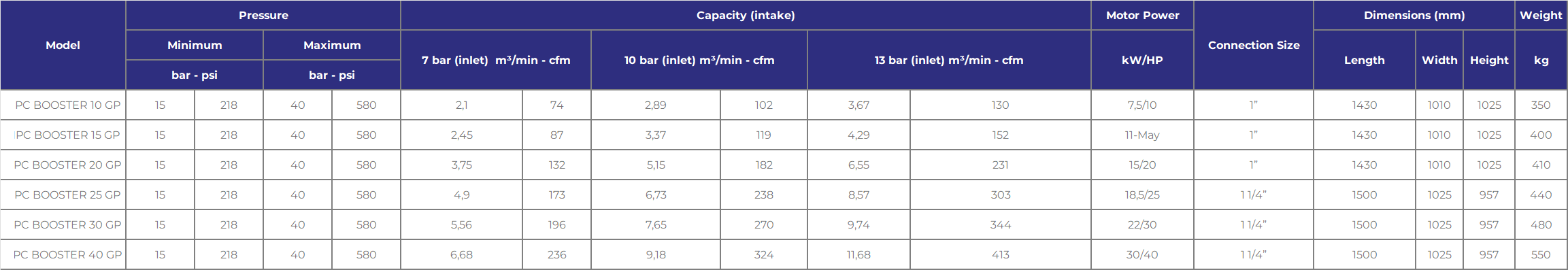

7,5-30 kW
40 bar
2,1-11,68 m³/min

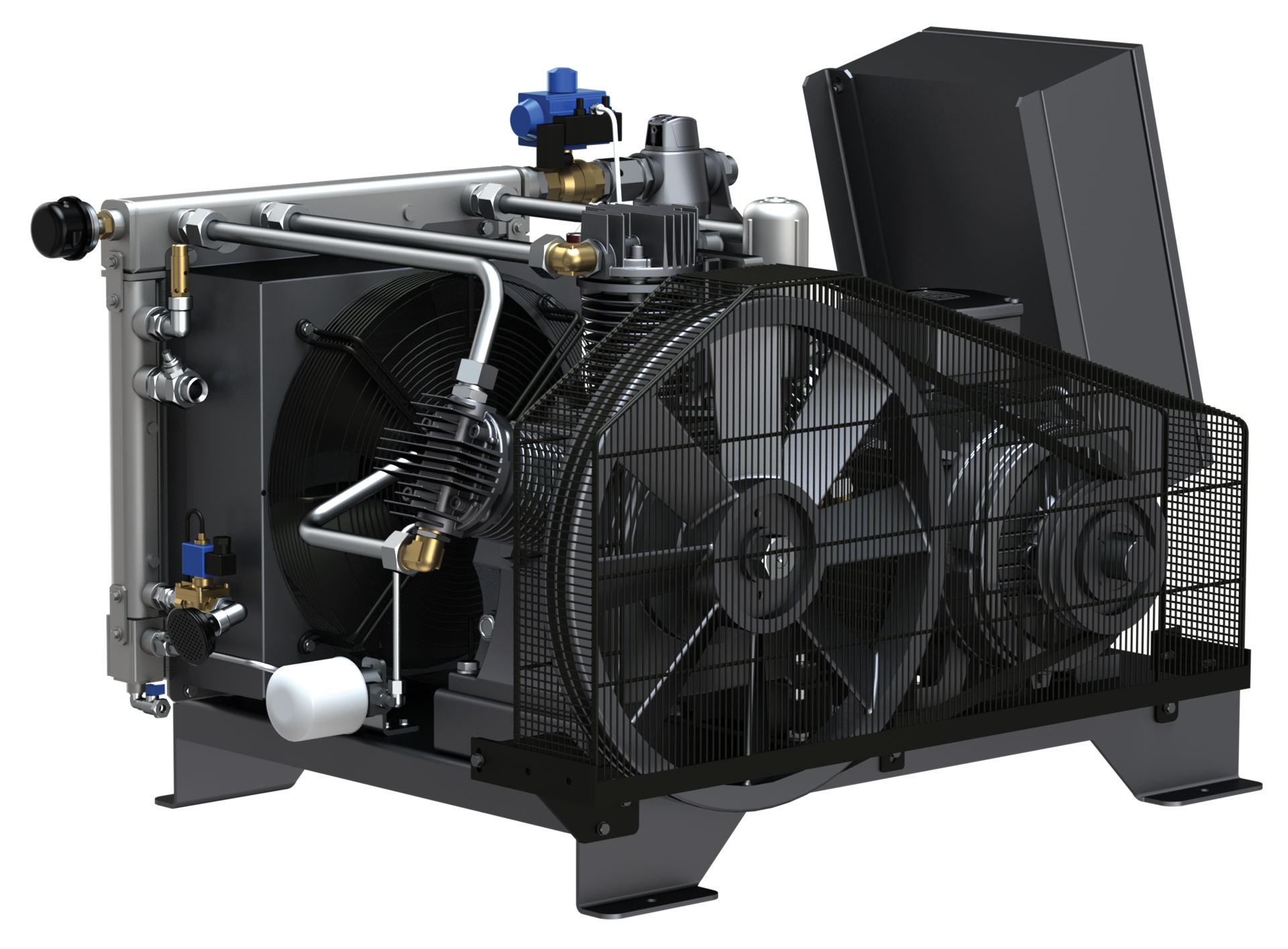

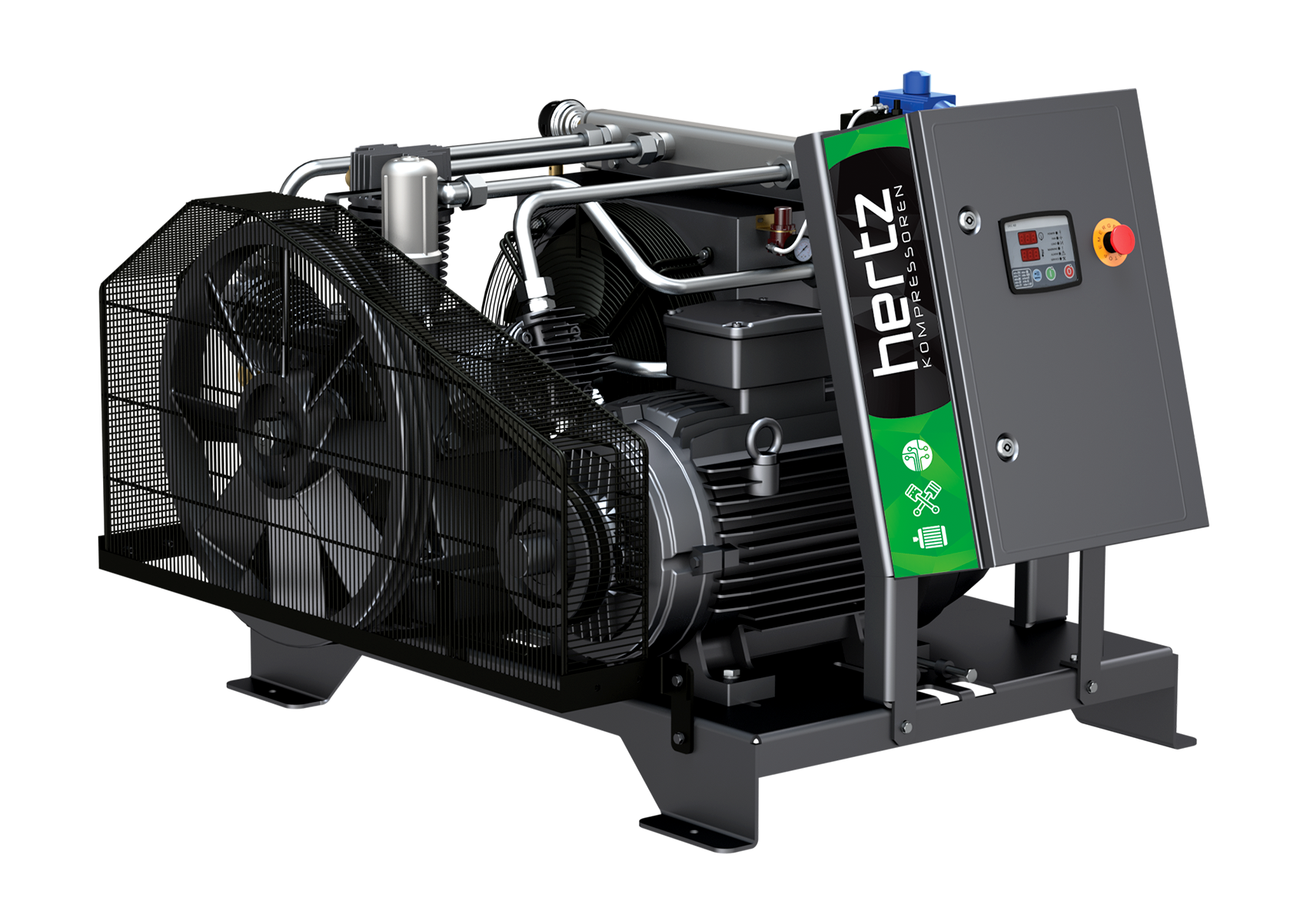

Oil Injected, Belt Driven
Reciprocating Air Compressors
We provide reliable and high-performance air solutions for the PET bottling and food and beverage industries requiring high compression.
Advantages
• Durable sliding bearings prolong maintenance periods and keep maintenance costs low.
• Next gen booster series offers high performance with the outstanding technology and design.
• Oil-trap air filtration system provides cleaner air.
• Energy-saving advanced cooling and lubrication systems.
• Integrated oil pump driven by the main motor lubricates the pistons, bearings and pins efficiently.
• Improved vibration level helps to keep maintenance costs down.
General Features
• Electric motor protection to prevent overload
• Dedicated discharge system to prevent oil discharge from blow-off valve
• Energy-saving Load/Unload System
• Integrated control panel for user-friendly operation
• Automatic discharge system for loadless start
• Air-cooled compressor units
• Gear-driven oil pump
• Star/delta motor starter
• Long life thanks to low speed operation
• Optional soft starter

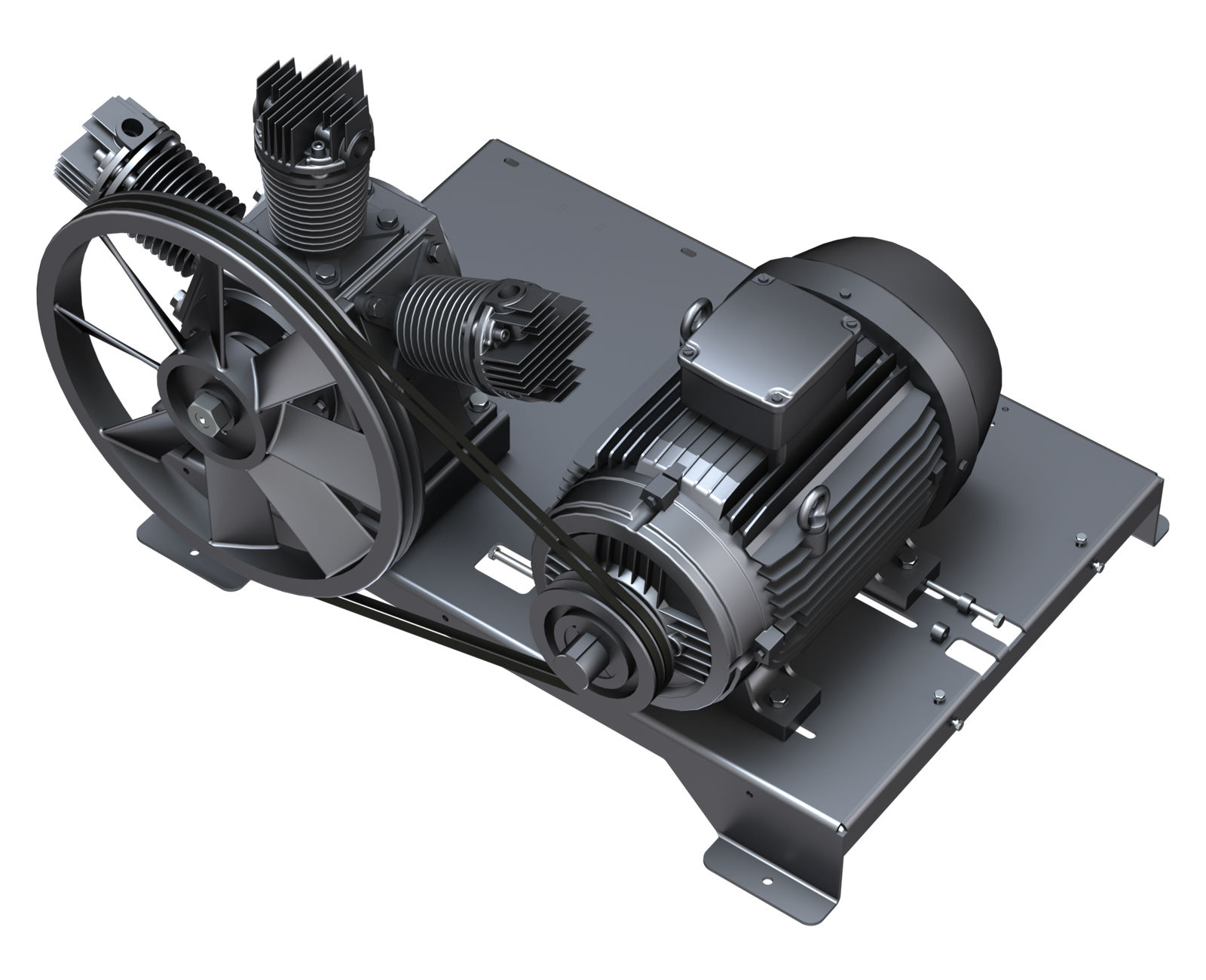

Main Motor and Drive System
• IE3 efficiency-class electric motors
• Belt pulley drive system
• Easy belt tensioning system
• Specially designed fan type cast pulley
• Star/delta motor starter
• Special loadless start system and automatic discharge system for loadless start
Compressor Block
• Cast iron cylinder with cooling fins and special aluminium alloy top heads
• Specially designed long-life and high-speed stainless steel concentric valves
• High-strength cast iron sump
• Dynamically balanced cast steel crankshaft and counterweight
• Special aluminium alloy pistons and iron cast connecting rods
Safety Systems
• Inlet air control system
• High-pressure switch
• Manual condensate drainage valve
• Integrated check valve in air outlet line
• Belt pulley housing fence
• Outlet pressure manometer
• High pressure relief valve
• Oil pressure control
• Integrated particulate filter in inlet air line
• By-pass line for protection against high oil pressure

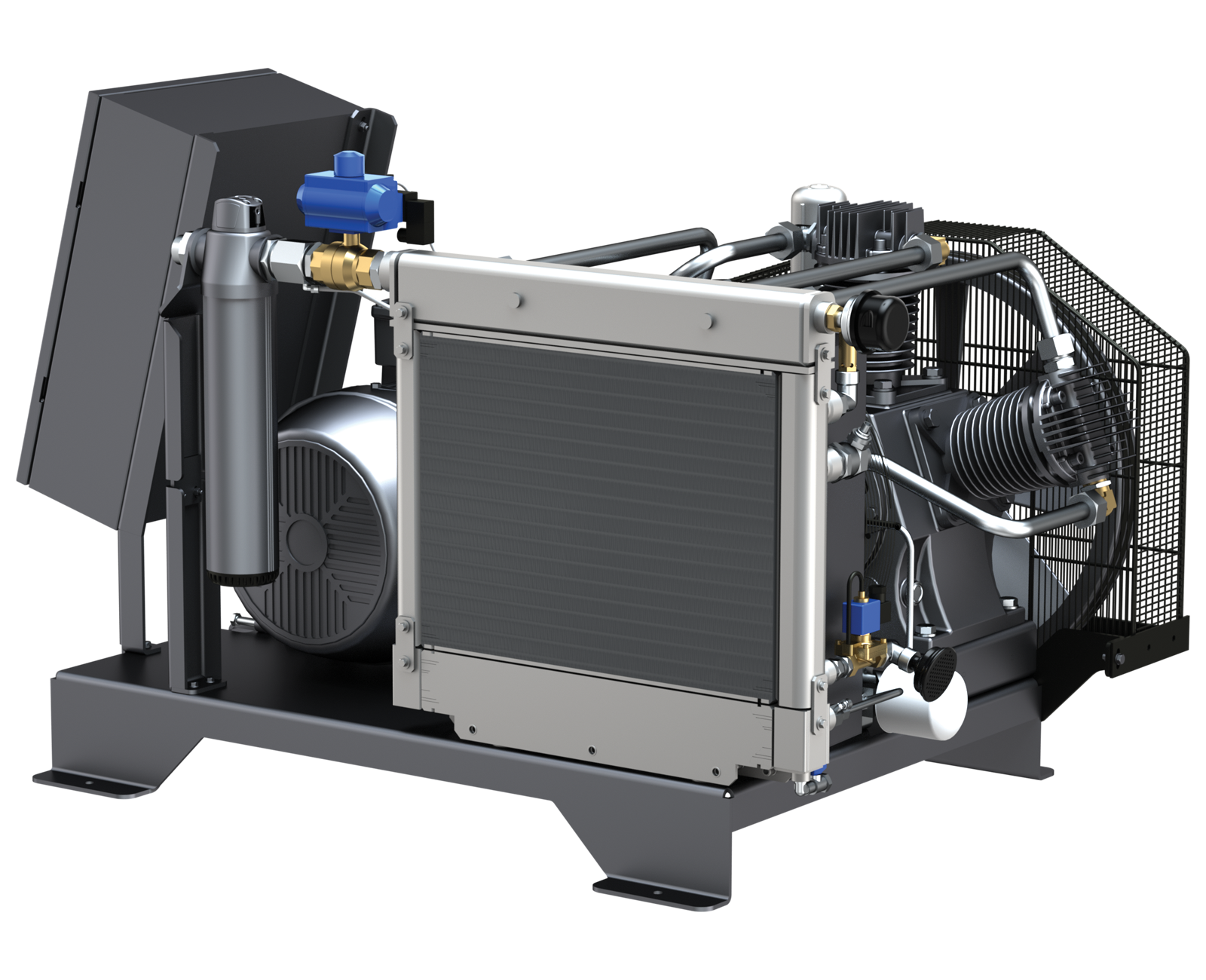

Cooling Systems
• 2-section aluminium radiator for air and oil cooling
• Bar-Plate outlet air cooling radiator
• Integrated oil and air cooler with inlet collector
