90-160 kW
7,5-10-13 bar
11-27,4 m³/min
Oil Injected, Belt Driven, Fixed Speed
Rotary Screw Air Compressors
Our well-designed powerful screw compressor series can be operated easily by all users.
Advantages
• Easily accessible parts for reduced maintenance costs.
• Protective covers can be removed and fitted quickly for easy servicing.
• Controllers allow ease of access and ease of use.
General Features • High-quality, easy-to-replace components with a long service life
• Next gen screw block and motor
• Electronic control
• Integrated dryer and heat recovery option
• Fully synthetic oil option suitable for food production

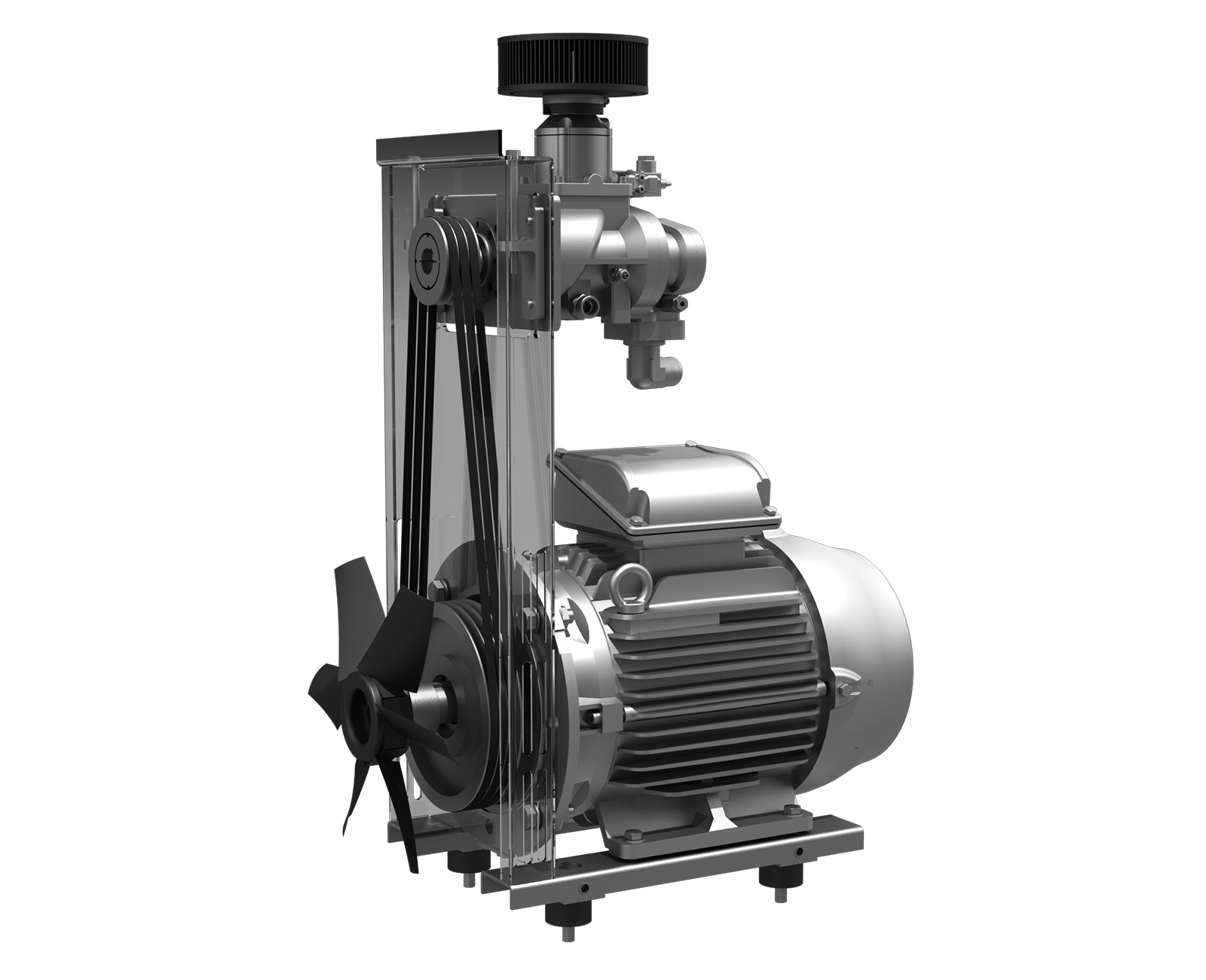

Main Motor and Drive System
• IE3 efficiency-class electric motor
• Star/delta motor starter
• Belt-pulley drive system
• Easy-to-use belt tensioner and pulley bushing for easy servicing, removal, and installation.
• Soft start option
Screw Block• Durable, patented screw block specially selected based on the capacity needs of each model provides high-capacity air
• New rotor profiles for reduced loss air production and lower torque requirements
• Next gen bearing design for improved load bearing capabilities
Controller
• Can run 2 compressors without the need for an external master controller M/S (Master/Slave- equal ageing)
• Automatic motor bearing lubrication system prolongs the service life of motor bearings
• Weekly scheduler for starting/ stopping the machine at 3 different time intervals can be individually set for each day of the week
• Built-in ModBus communication
• User-friendly display interface
• Built-in phase protection relay
• Alarm History records last 20 alarms
• Maintenance warnings and history
90-160 kW 7,5-10-13 bar 11-27,4 m³/min
TECHNICAL SPECIFICATION
