22-315 kW
7,5-10-13 bar
3,6-53 m³/min
Oil Injected, Direct Coupled, Fixed Speed
Rotary Screw Air Compressors
We offer optimum solutions for your industrial production needs with high efficiency and less energy consumption.
Advantages
• Advanced screw block and direct coupled motor ensures savingand high performance by minimizing power transmission losses.
• Service-friendly design reduces maintenance costs.
• Controllers allow ease of access and use.
General Features
• High-quality, easy-to-replace components with along service life
• Continuous operation for minimum stops
• Next gen screw block and motor
• Electronic control
• Integrated dryer (132 kW and below)
• Water cooled and heat recovery (optional)
• Full food grade oil option suitable for food production
Main Motor and Drive System
• IE3 efficiency-class electric motor
• Star/delta motor starter
• Belt-pulley drive system
• Easy-to-use belt tensioner and pulley bushing for easy servicing, removal, and installation.
• Soft start option
Screw Block
• Durable, patented screw block specially selected based on the capacity needs of each model provides high-capacity air
• New rotor profiles for reduced loss air production and lower torque requirements
• Next gen bearing design for improved load bearing capabilities
Controller
• Can run 2 compressors without the need for an external master controller M/S (Master/Slave- equal ageing)
• Automatic motor bearing lubrication system prolongs the service life of motor bearings
• Weekly scheduler for starting/ stopping the machine at 3 different time intervals can be individually set for each day of the week
• Built-in ModBus communication
• User-friendly display interface
• Built-in phase protection relay
• Alarm History records last 20 alarms
• Maintenance warnings and history
22-315 kW 7,5-10-13 bar 3,6-53 m³/min

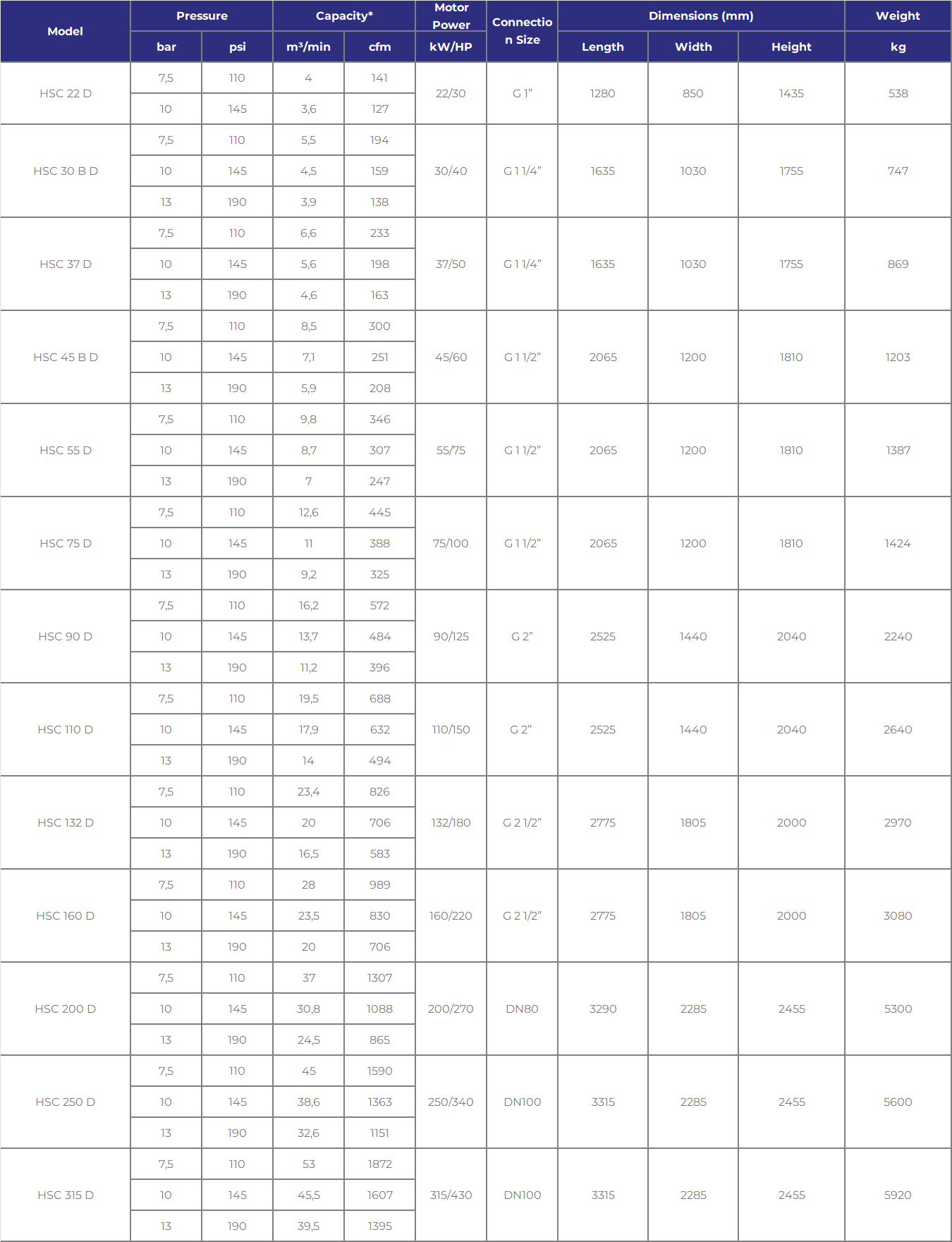

TECHNICAL SPECIFICATION
