2,2-7,5 kW
8 bar
410-1657 l/min
Oil Injected, Single & Double Stage, Belt Driven

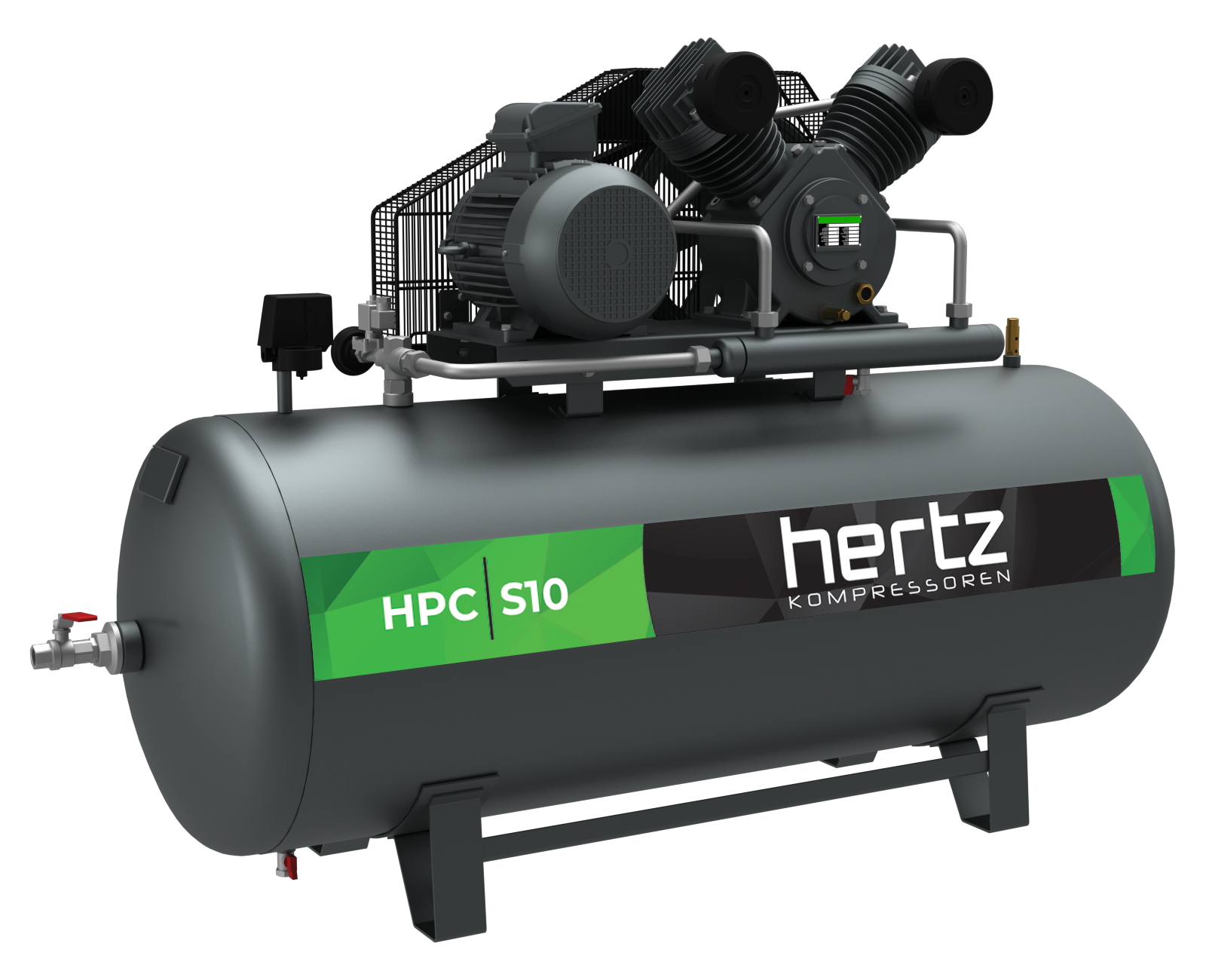

Reciprocating Air Compressors
Robust, reliable and long-lasting compressors offer ideal air solutions for small industrial businesses and workshops.
Advantages
• Reliable operation
• High-quality components for long service life.
General Features
• Suitable for operation even in the most challenging ambient conditions
• Easy to use and low noise levels
• Reliable and efficient compressed air production
Main Motor and Safety System
• IE3 efficiency-class electric motor
• Safe operation with pressure switch, check valve and safety valve
• Belt-pulley guard
• Manometer
• Ready-to-run electrical mechanism
Compressor Block
• Cast cylinder body
• Cast iron cylinder heads with cooling channels
• Special aluminium alloy pistons and connecting rod
• Cast pulley for fan-type efficient cooling
• Air intake filter
• Splash lubrication
• Oil level gauge
• Factory-filled oil
• Star/delta connectors (5.5 kW and above)
• External control panel (optional)
2,2-7,5 kW 8 bar 410-1657 l/min

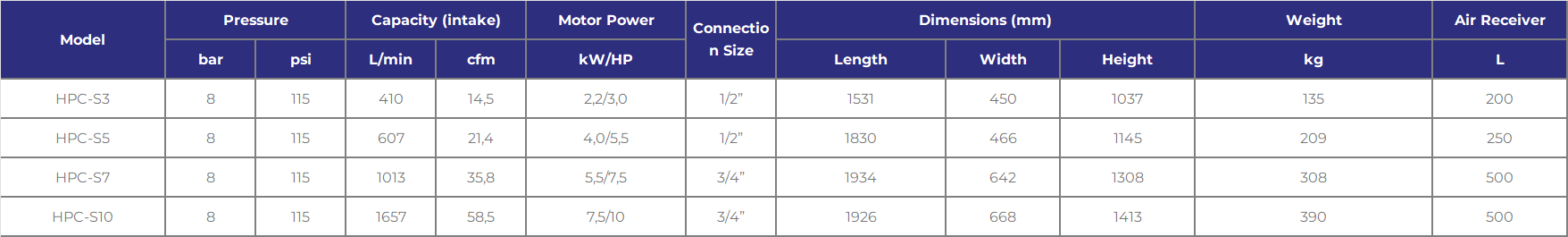

TECHNICAL SPECIFICATION
