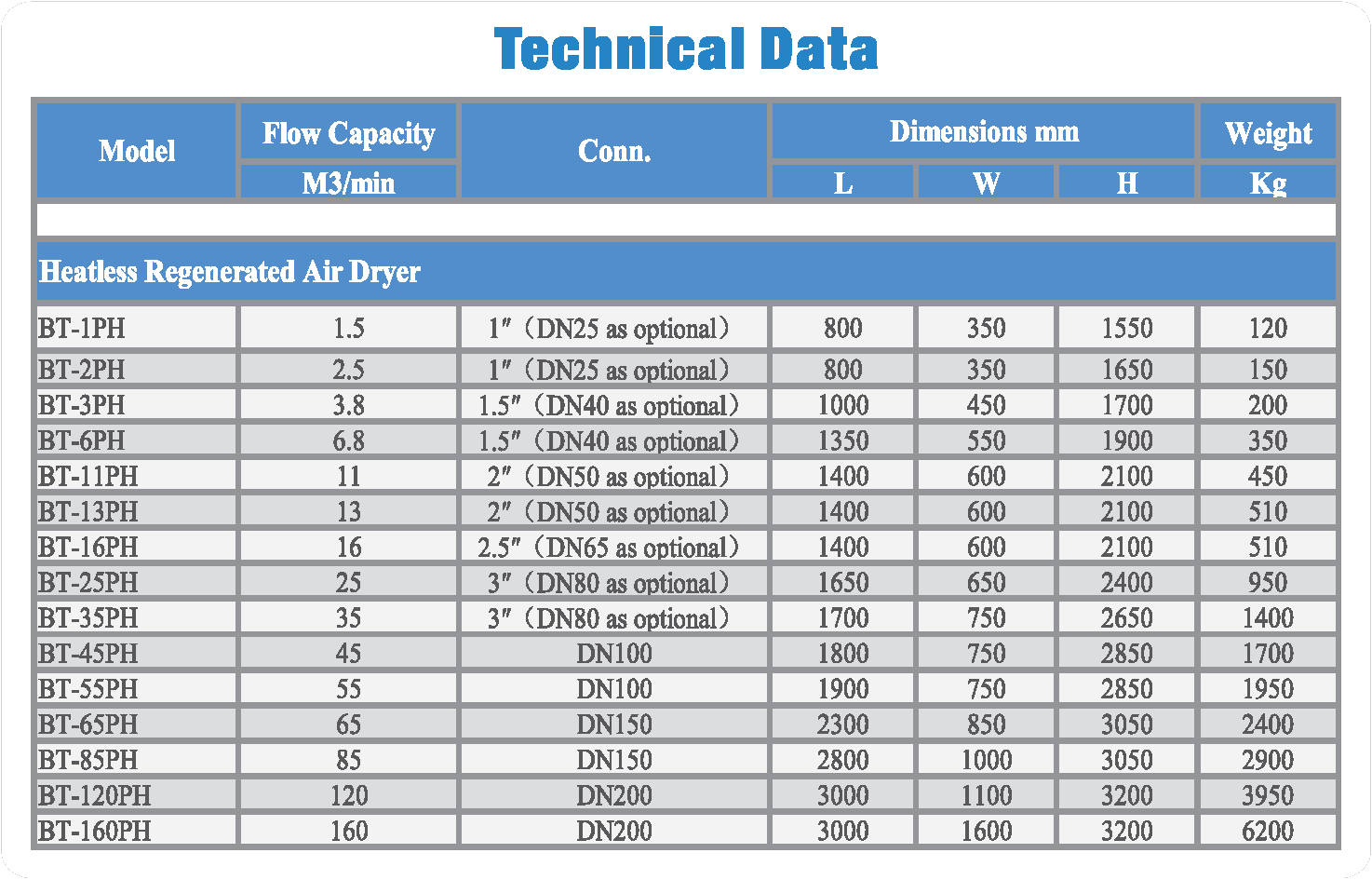

working condition and Technical data

Inlet temperature         : 0~45°C

Inlet oil content         : ≤0.01ppm

Working pressure         : 0.6~1.6Mpa

Dew point         : ≤-20°C~-70°C

Purge air         : ≤16%

Desiccant         : activated alumina & molecular sieve

Purge mode         : heatless purge

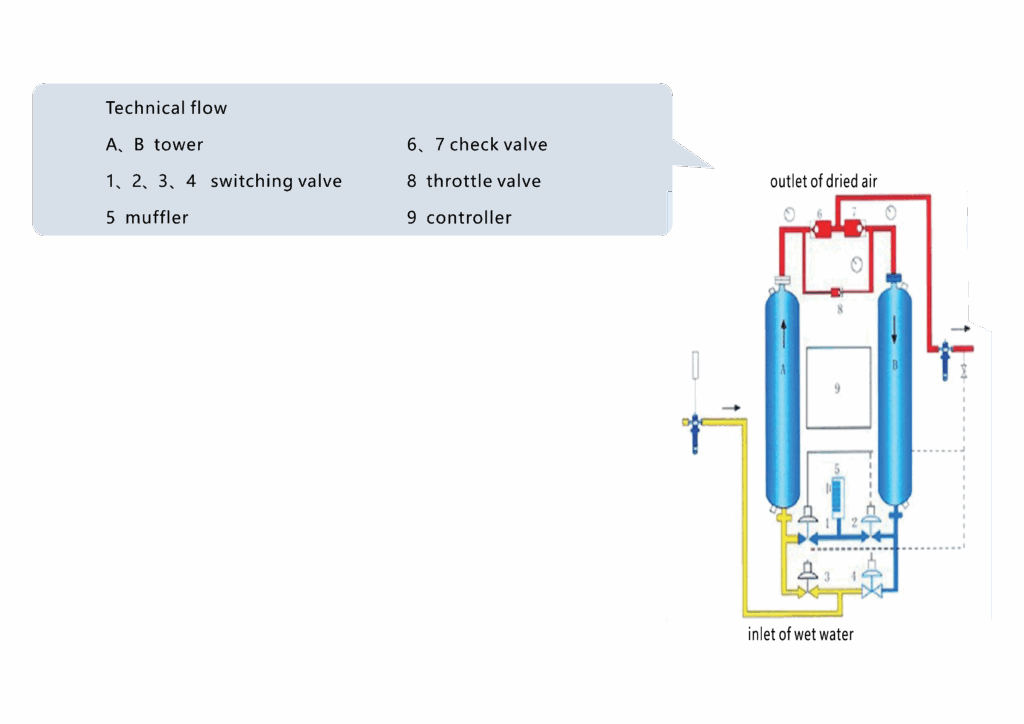

Working method : continuing alternative working between two towers

Working periods : T=10~20min

Control mode : micron computer auto controlling
