37-220 kW
16-40 bar
3,6-23 m³/min
Oil-Free, Water Cooled, Fixed/Variable Speed

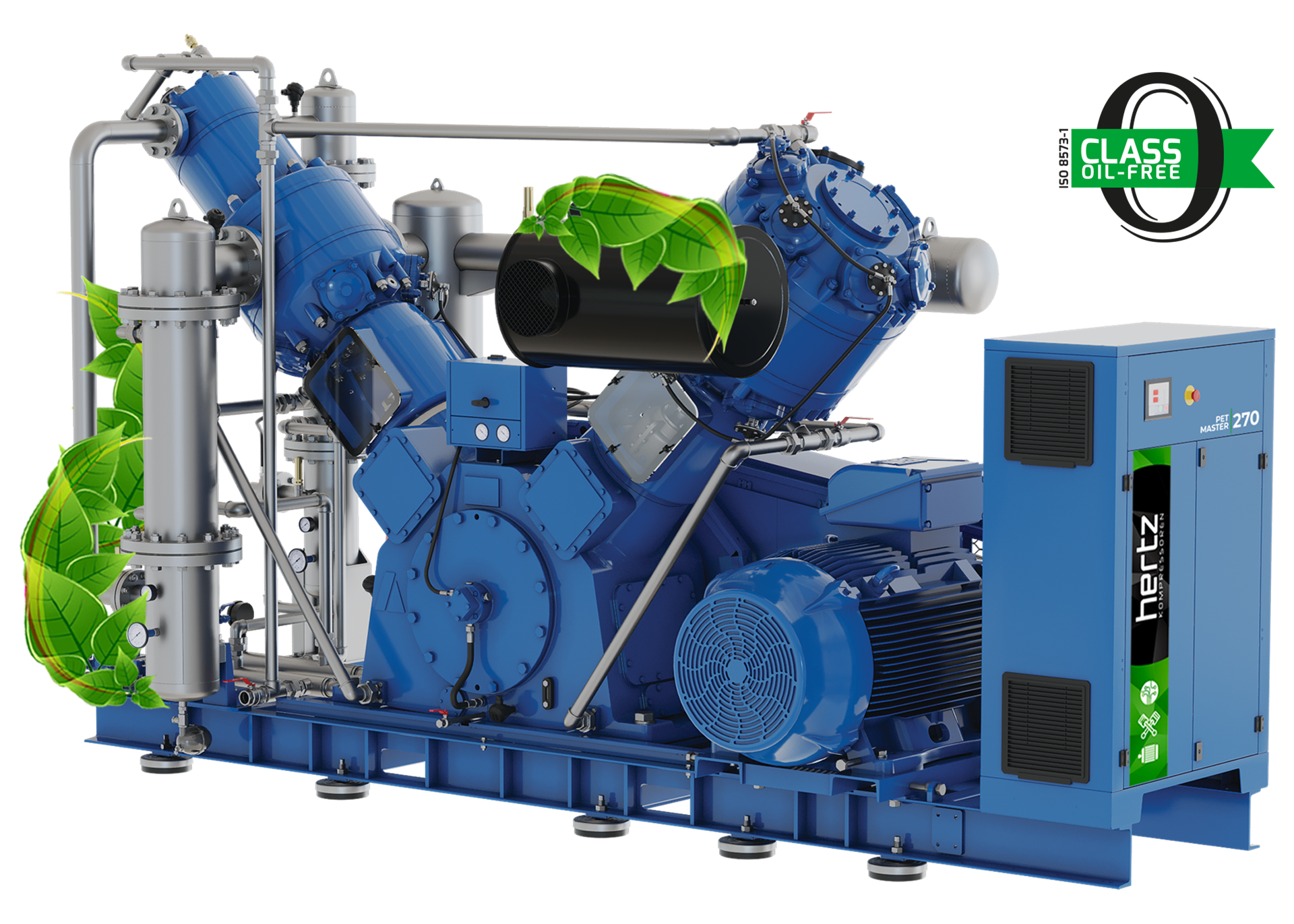

Reciprocating Air Compressors
We provide reliable and high-performance air solutions for the PET bottling, food and beverage industries requiring high compression.
Advantages
• Compact structure, easy to install and assemble.
• Takes up less room than other products in its class, providing maximum oil-free air capacity in minimum space.
• Wear due to friction is minimized. This positively affects maintenance times and costs.
• Stainless water separator increases corrosion resistance.
• Soft start prolongs component life.
General Features
• Reciprocating compressor providing 100% oil-free industrial air
• Electric motor protection to prevent overload
• Water-cooled design for high energy efficiency and ability to work in severe conditions
• Energy-saving Load/Unload System for efficient operation
• Integrated electrical system for user-friendly operation
• 20-40 bar operating range
Electric Motor
• IE3 efficiency-class electric motors
• Special loadless start system and automatic discharge system for loadless start
• Long life with low RPM thanks to 6 pole feature

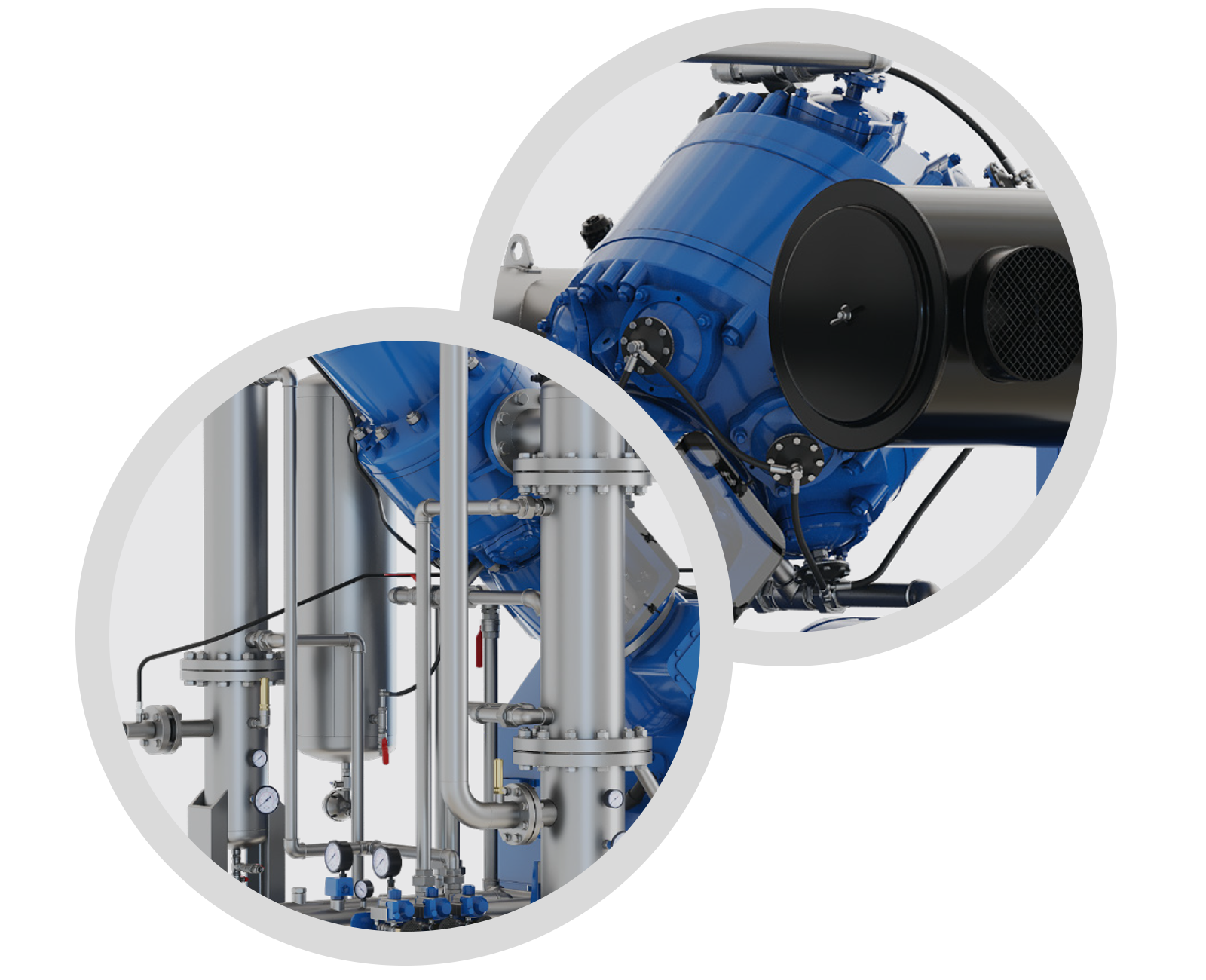

Compressor Block
• Water jacketed cast iron cylinders and bottom heads
• Specially designed high-speed stainless steel concentric valves
• High-strength cast iron oil sumps
• Dynamically balanced high-strength forged steel crankshaft and cast iron
• Special aluminium alloy pistons and forged steel connecting rods
Cooling System
• The intercoolers and aftercoolers use stainless steel pipes for more efficient heat transfer and better corrosion resistance.
• The coolers are designed to pass air through the pipe and water through the body wall.
• The compact design of the pipe-type coolers ensures easy maintenance and very efficient cooling
Electronic Control
• Advanced, high-definition, user-friendly 7” colour touchscreen display (HMI)
• High speed, robustly built industrial type PLC infrastructure
• Encrypted Access Protection system with various levels of authorization
• Display of relevant data on the screen clearly, trend graph recording and active monitoring
• Alarm History records last 100 alarms
• Ethernet / ModBus communication as standard
• Flexible programmable / expandable Input / Output structure
37-220 kW 16-40 bar 3,6-23 m³/min

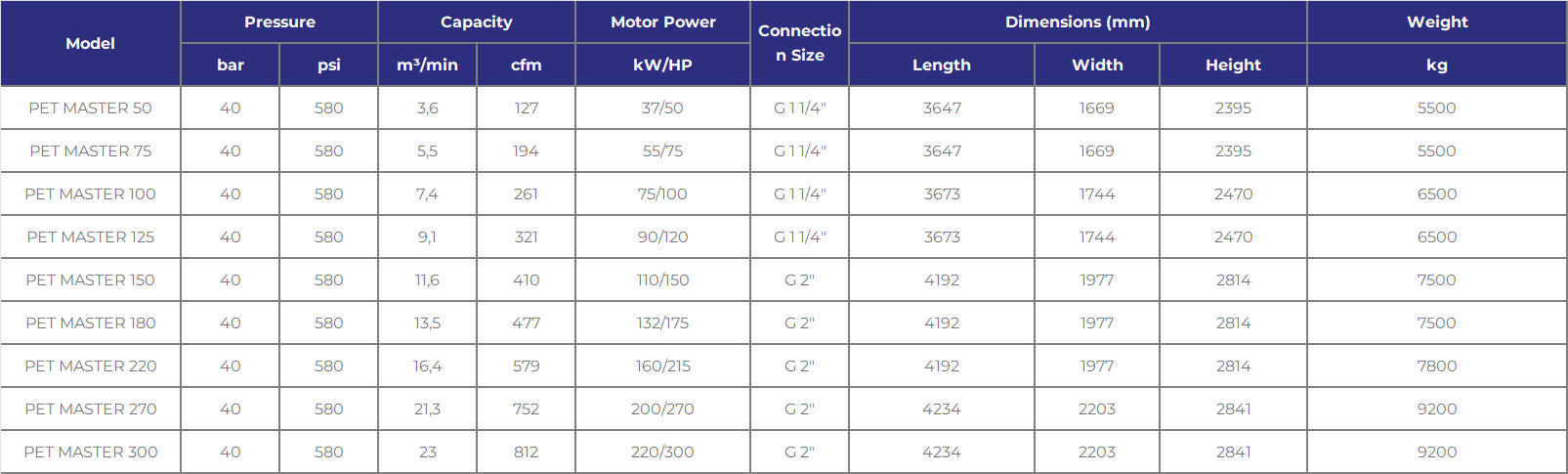

TECHNICAL SPECIFICATION
- Unit performances measured in reference conditions which are 1 bar absolute air Pressure, 0% relative humidity, 20°C inlet air temperature, 71°C thermostatic valve set temperature and use of Smartoil.
- Hertz reserves its rights to make changes in its products and specifications without prior notice.
- Unit performances measured in reference conditions which are 1 bar absolute air Pressure, 0% relative humidity, 20°C inlet air temperature, 71°C thermostatic valve set temperature and use of Smartoil.
- Hertz reserves its rights to make changes in its products and specifications without prior notice.

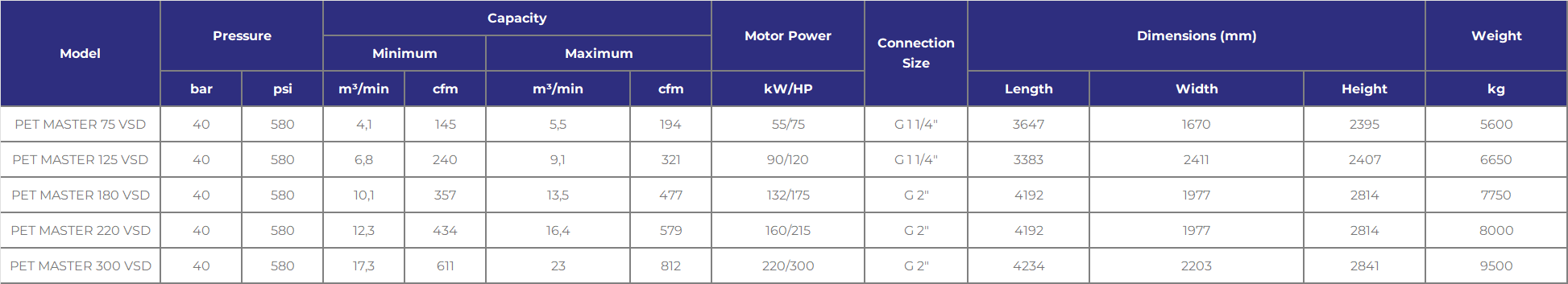

TECHNICAL SPECIFICATION (VSD)
- Unit performances measured in reference conditions which are 1 bar absolute air Pressure, 0% relative humidity, 20°C inlet air temperature, 71°C thermostatic valve set temperature and use of Smartoil.
- Hertz reserves its rights to make changes in its products and specifications without prior notice.
