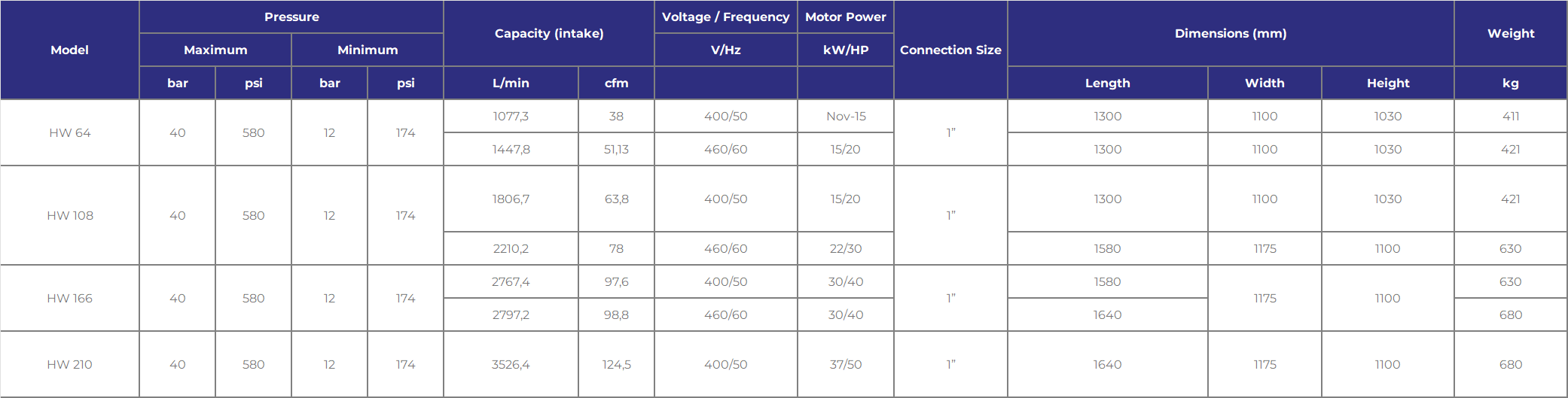

11-37 kW
12-40 bar
1077-3526 l/min
Oil Injected, Direct Coupled

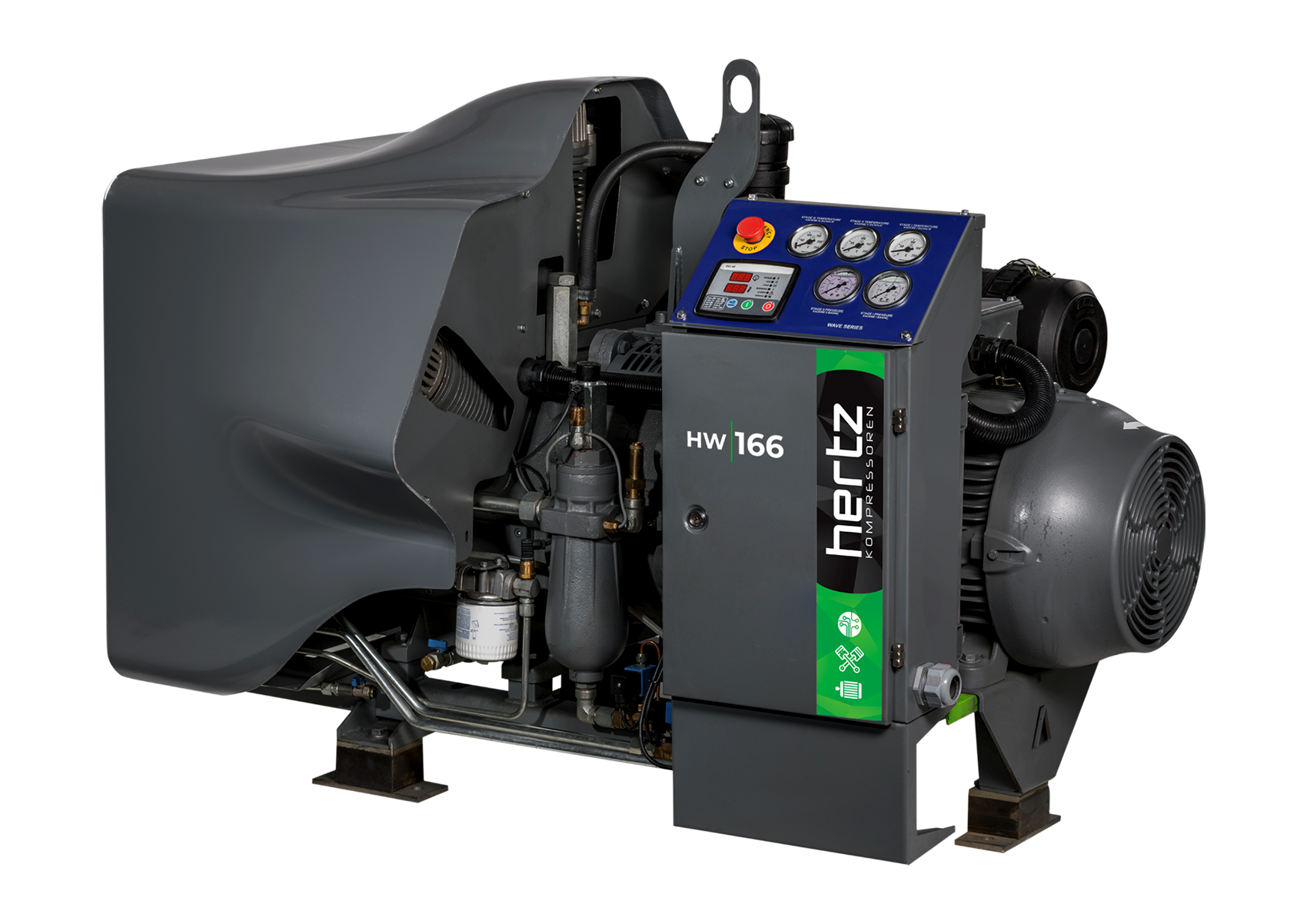

Reciprocating High Pressure Air Compressors
We offer ideal air solutions for high pressure applications for marine industry.
Advantages

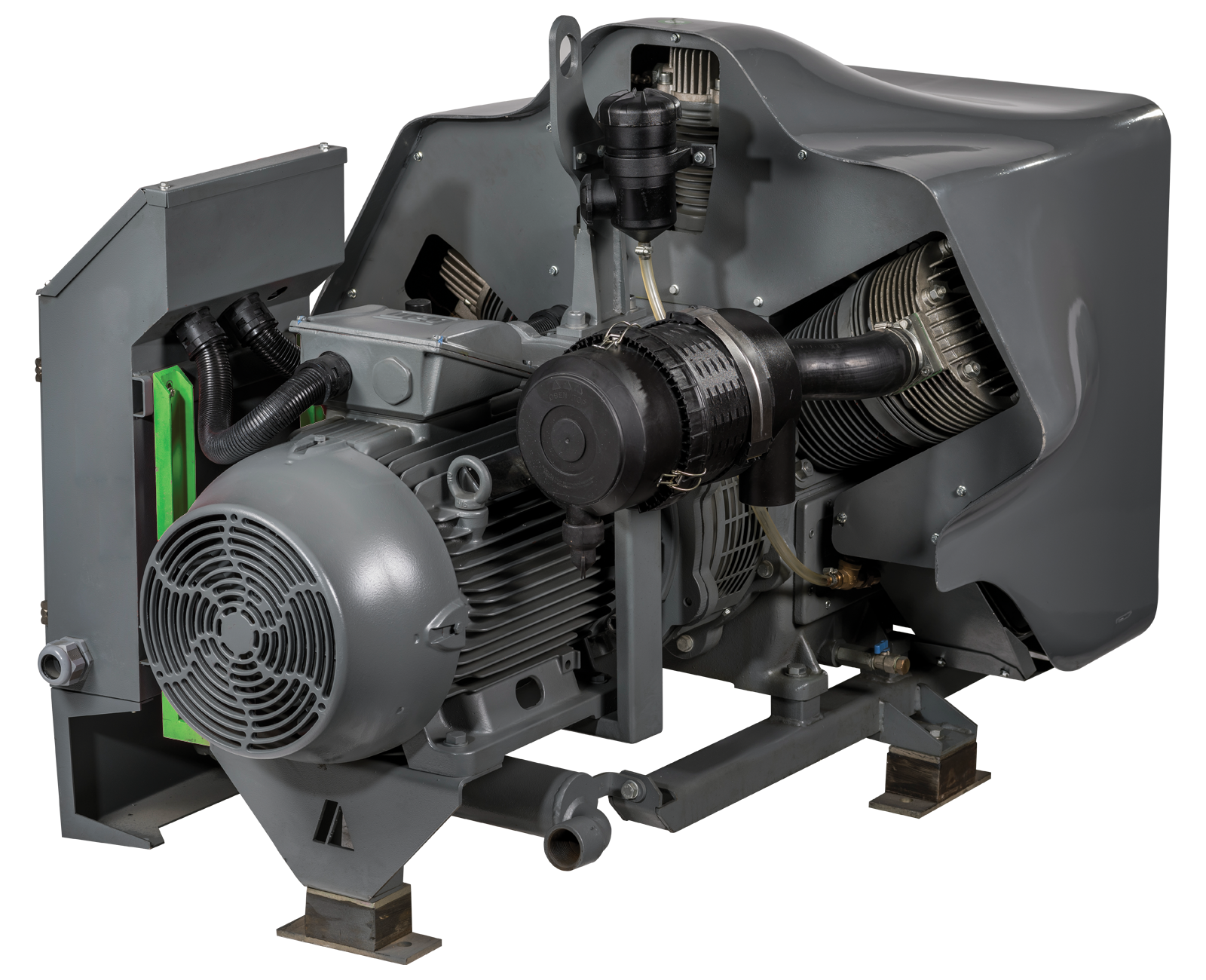

• Lightweight and robust composite cabinet provides high-performance cooling, protects the cylinder heads from impacts, and prevents the operator from coming into contact with moving and hot components.
• Ease of installation and strong components for longer uptimes and user-friendly operation.
• Safe, low-maintenance operation thanks to integrated flexible coupling
General Features
• PLC-based control and system monitoring with digital display panel
• High efficiency motor
• Oil trap air filtration system (Optional)
• Direct coupled
Main Motor and Drive System
• IE3 efficiency-class electric motor
• Direct coupled with elastic coupling
• Star/delta motor starter
• Special loadless start system and automatic discharge system for loadless start
• Soft starter (optional)

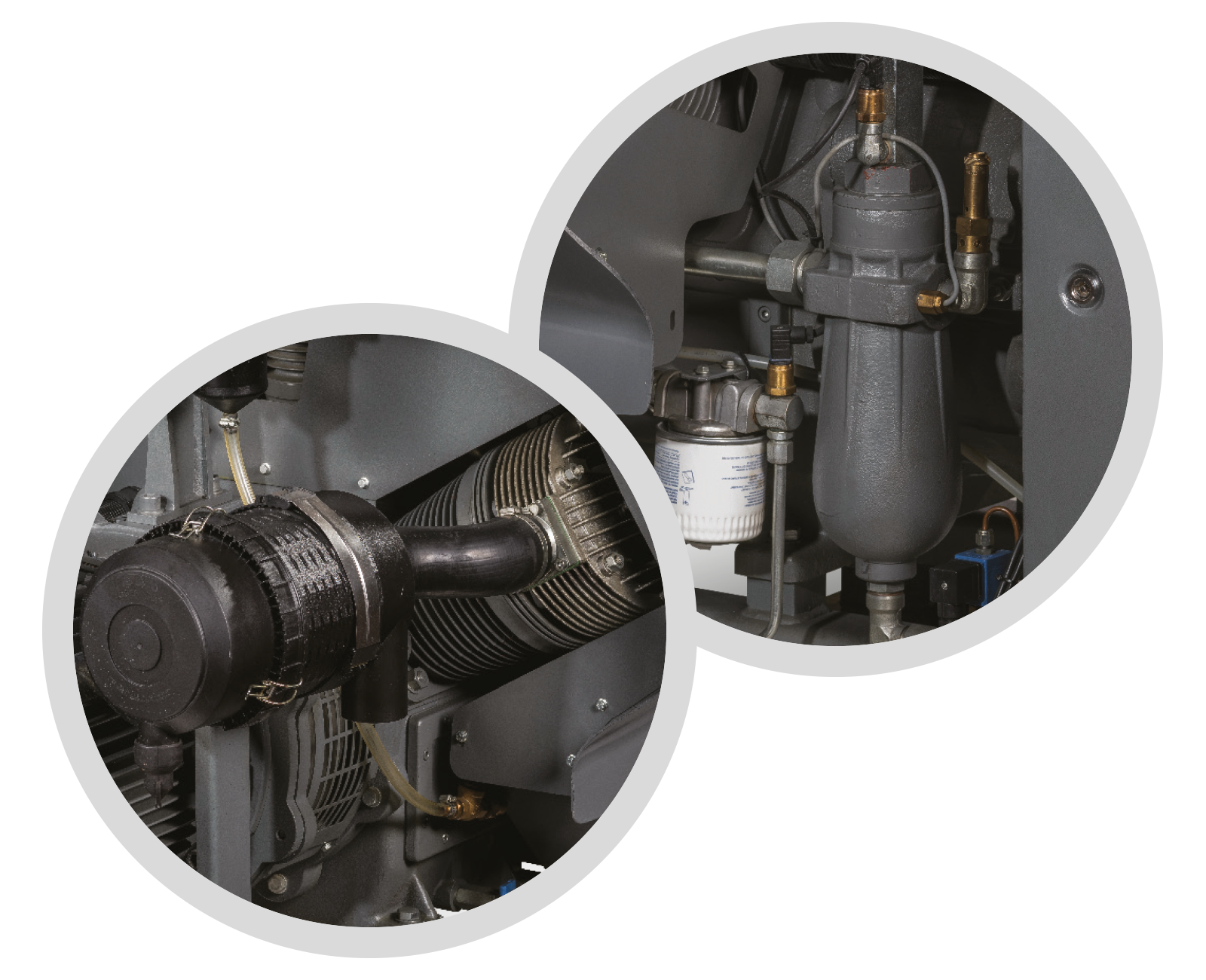

Compressor Block
• Cast iron cylinder with cooling fins and special aluminium alloy cylinder heads
• High-strength cast iron sumps
• Dynamically balanced steel crankshaft and counterweight
• Special aluminium alloy pistons and cast steel connecting rods
• Specially designed concentric-type, high-capacity stainless steel suction-discharge valves
Cooling System
• 4-stage radiator (3 stages for air, 1 stage for oil cooling)
• Cylinder and cylinder heads with cooling fins
• Cooling fan connected directly to the main motor
• Integrated oil pump driven by the main motor lubricates the pistons and pins
• Specially designed concentric-type, high-capacity stainless steel suction-discharge valves
Controller
• Mains voltage and frequency monitoring, protection at certain limits
• Multiple compressor control for up to 8 compressors without the need for an external master compressors
• Internal ModBus communication
• Alarm log records the last 9 alarms
