5,5-315 kW
7,5-10-13 bar
0,36-54,10 m³/min
Oil Injected, Direct Coupled, Variable Speed
Rotary Screw Air Compressors
Thanks to its high quality equipment and advanced engineering design, it provides an efficient and flexible use according to your industrial production needs.
Advantages
• Up to 65% energy saving*
• Operation at constant output pressure value
• Wide operating pressure range (5-14 bar)**
• Long component life cycle thanks to soft start
• Protection against the adverse effects of peak currents
• Effective and energy efficient compressed air production even in case of highly variable compressed air requirements
*When compared with compressors without an inverter for applications with variable requirements
** If requested, it is produced specially according to the need.

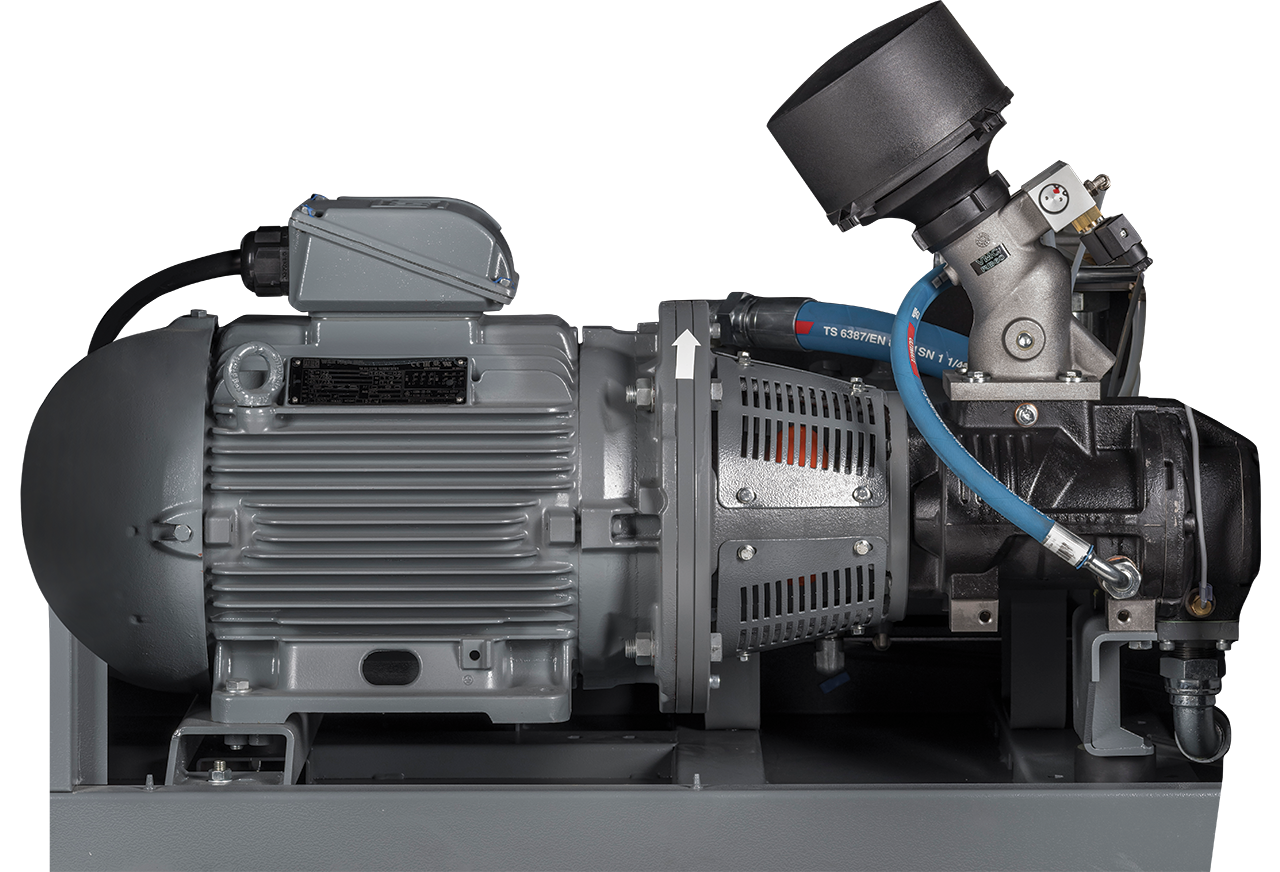

Main Motor and Drive System
• IE3 efficiency-class electric motor
• Direct coupled (1:1) with the elastic coupling
• Elasting coupling for a maintenance free long-lasting and efficient power transmission system
• Variable-speed starting with frequency converter
• High temperature protection for motor bearings (Frecon 15-315 Plus)
Screw Block
• A durable and specially selected patented screw block that provides high capacity air according to the capacity needs of each model
• New rotor profiles for reduced loss air production
• Next gen bearing design for improved load bearing capabilities
Cooling System
• Temperature controlled axial fan (Frecon 5-22 Plus)
• Optimum working temperature thanks to inverter controlled fans, provides additional energy efficiency (Frecon 30-315 Plus)
Controller
• Internal ModBus communication
• User-friendly on-screen interface
• Without the need for an external main controller, ability to co-aged work synchronized with Master/Slave for up to 2 compressors in 22 kW and below models,
• Multi-operation capability of up to 5 compressors in 30 kW and above models
• The ability to perform both pressure and temperature PID at the same time with its Dual PID feature (30 kW and above)
5,5-315 kW 7,5-10-13 bar 0,36-54,10 m³/min

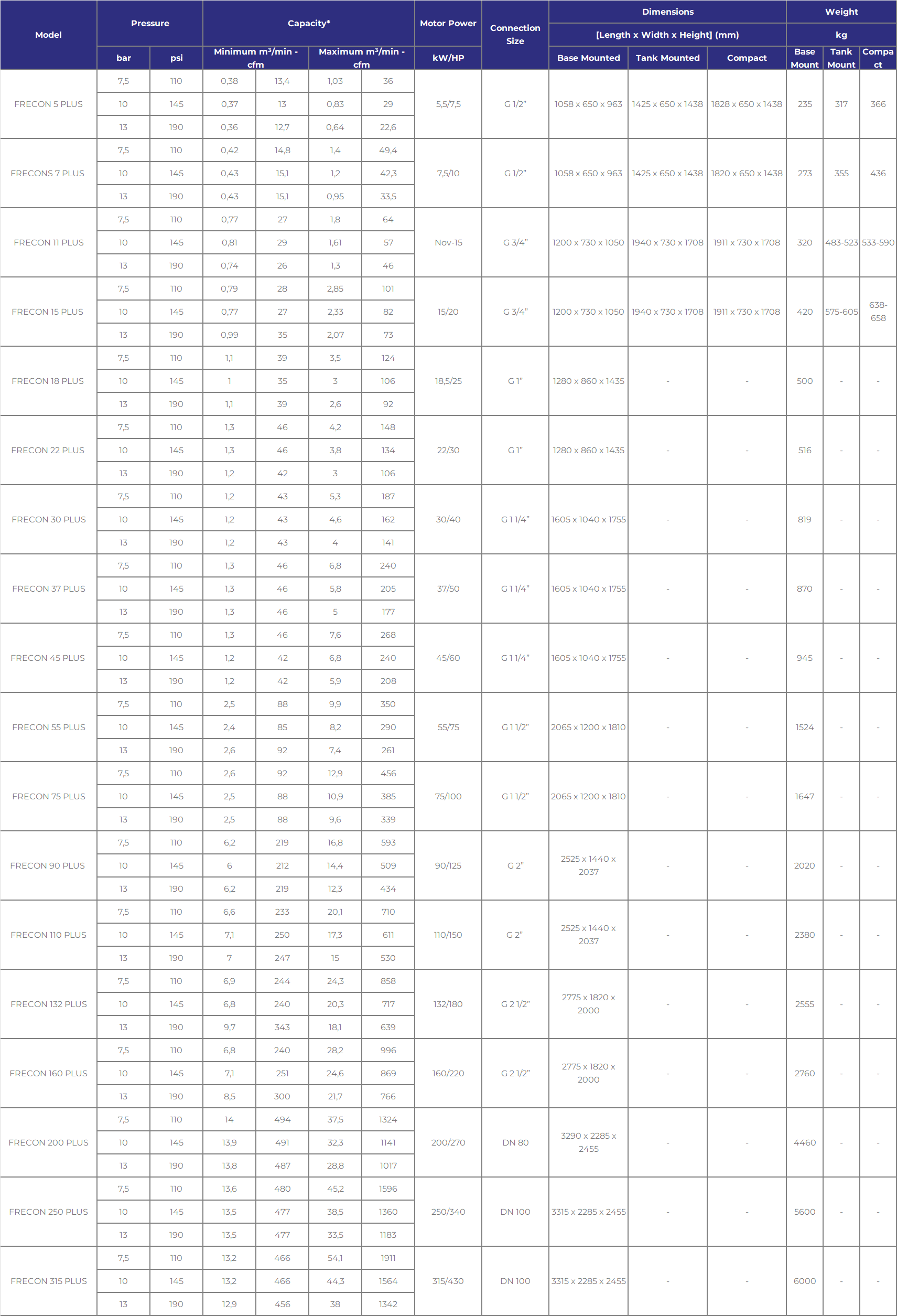

TECHNICAL SPECIFICATION
