1,5-11 kW
7-12,5 bar
145-1766 l/min
Oil Injected, Single & Double Stage, Belt Driven
Reciprocating Air Compressors
Reliable, Long-Lasting, and Durable: Preferred by Many Industries for its Versatility
Advantages
• Offers ideal solutions for small business enterprises.
• Service-friendly design reduces maintenance costs.
• Produces reliable and efficient pressure.
• Uses quality components for a long service life.
• Low noise levels.
General Features
• Reliable design
• Safe to use
• High-quality components and safety systems
• Energy efficient

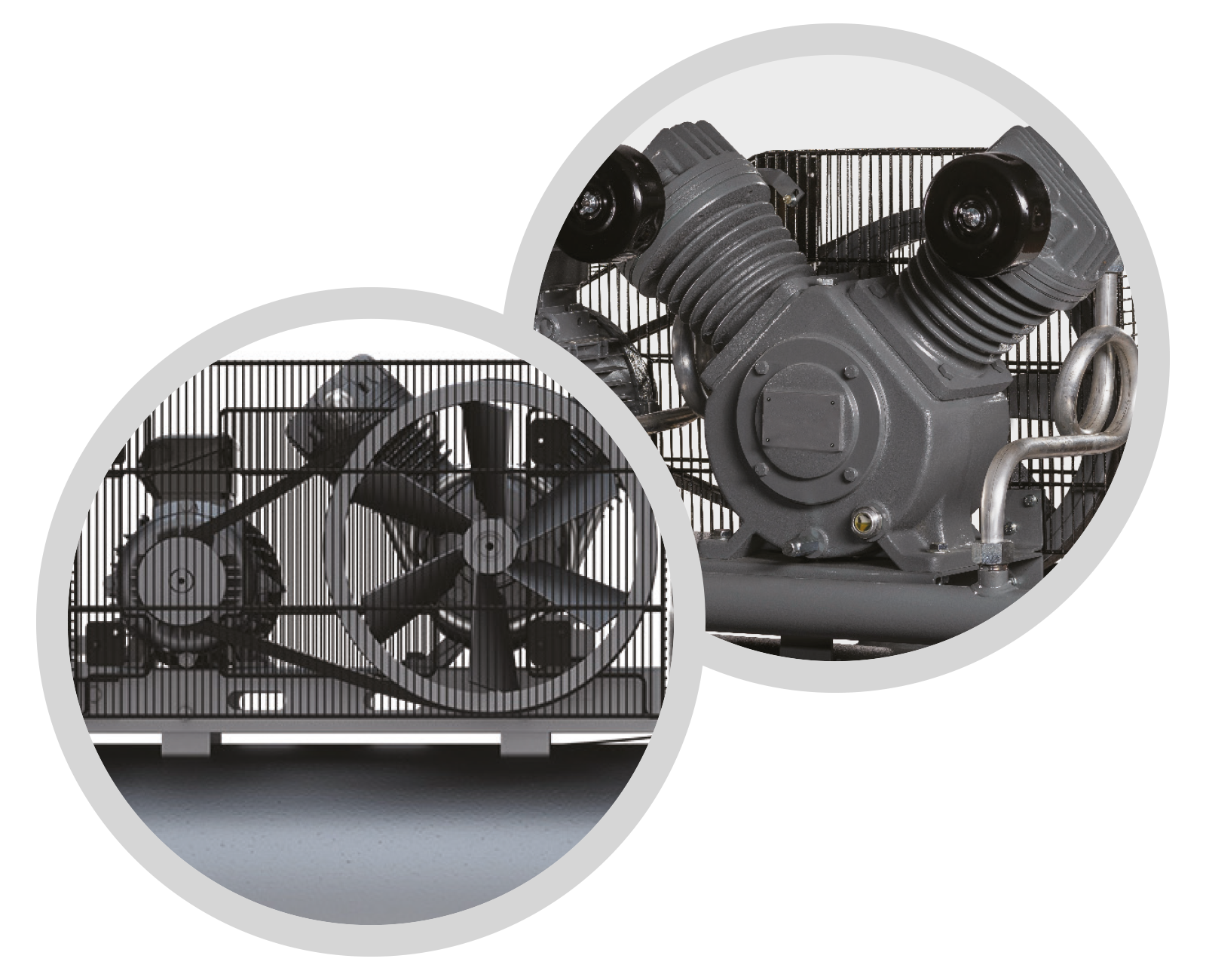

Compressor Block
• Cast cylinder body
• Aluminium injection-moulded cylinder head
• Special aluminium alloy pistons and connecting rod
• Cast pulley for fan-type efficient cooling
• Splash lubrication
• Oil level gauge
• Factory-filled oil
• Star/delta connectors (5.5 kW and above)
• External panel (optional)
Safety System
• Efficient electric motor
• Safe operation with pressure switch, check valve and safety valve
• Belt-pulley guard
• Manometer
• Ready-to-run electrical mechanism
1,5-30 kW 8-10 bar 0,16-3,4 m³/min

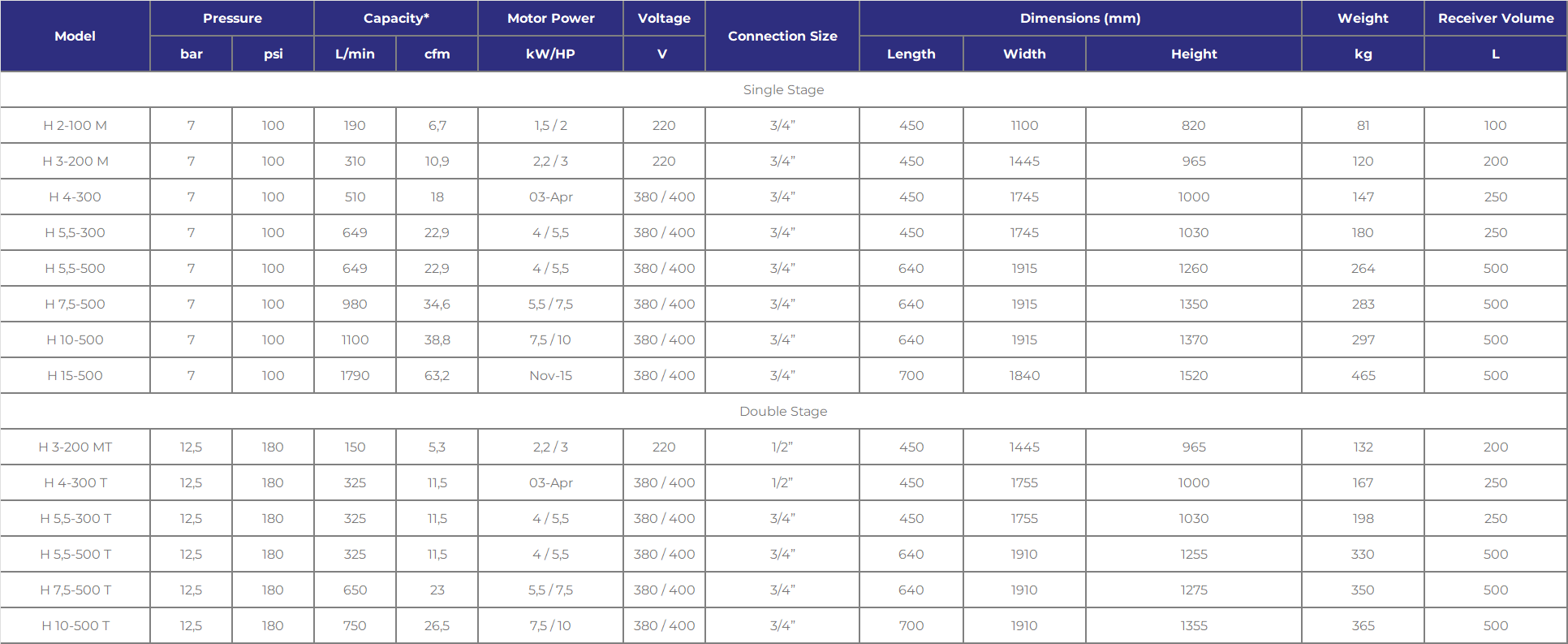

TECHNICAL SPECIFICATION
