2,2-75 kW
7,5-8,5-10-13 bar
0,2-12,5 m³/min
Oil Injected, Belt Driven, Fixed Speed

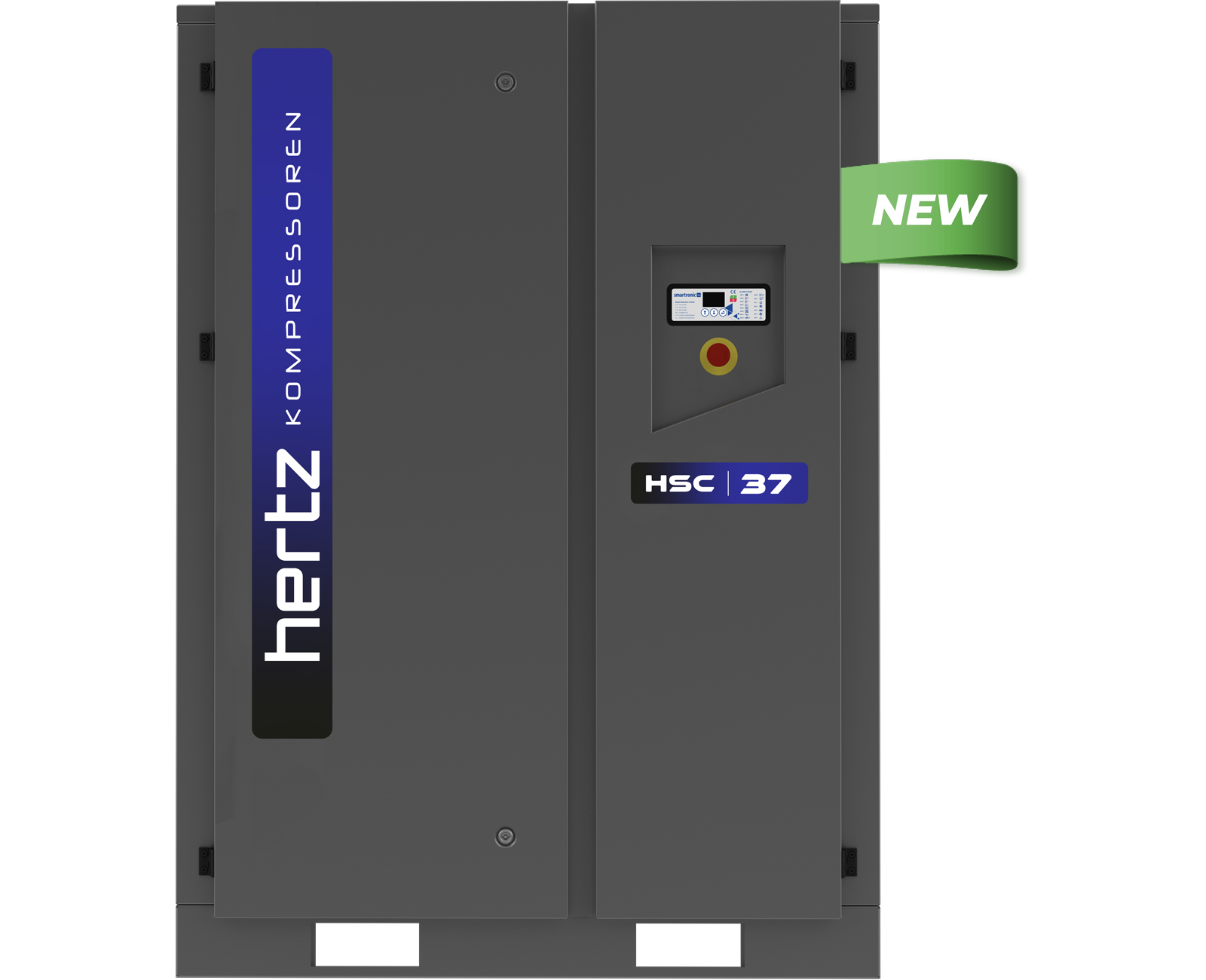

Rotary Screw Air Compressors
Compact and robust next gen HGS - HSC compressors ensure optimum solutions for small and medium-sized businesses and workshops.
Advantages
• One of the products in its class that takes up the least footprint.
• Blind cover allows you to place it up against the wall. Convenient placement makes for easy servicing, maintenance, and access. (22 kW and below)
• Optimized intake chamber and insulated cold air intake increase energy efficiency. (30 kW and above)
• Compact design has the compressed air widget and compressor in a single place meets your expectations and demands at the optimal level.
• Efficient motor keeps energy use and costs down.
• High-quality components for a long service life and low maintenance costs.
General Features
• Next gen screw block and motor
• Electronic control
• Designed for continuous operation
• Dryer & tank mounted option (2,2-22 kW)
Screw Block
• Durable screw block provides high-capacity air and is specially selected for each model’s capacity requirement
• Operated in high ambient temperatures and offers superior reliability
• Air production with less loss thanks to new rotor profiles
• Next gen bearing design which increased load-bearing capacity
• Low maintenance and replacement costs
Main Motor and Drive System
• IE3 efficiency-class electric motor
• Star/delta motor starter
• Belt-pulley drive system
• Easy-to-use belt tensioner
• Pulley bushing for easy servicing

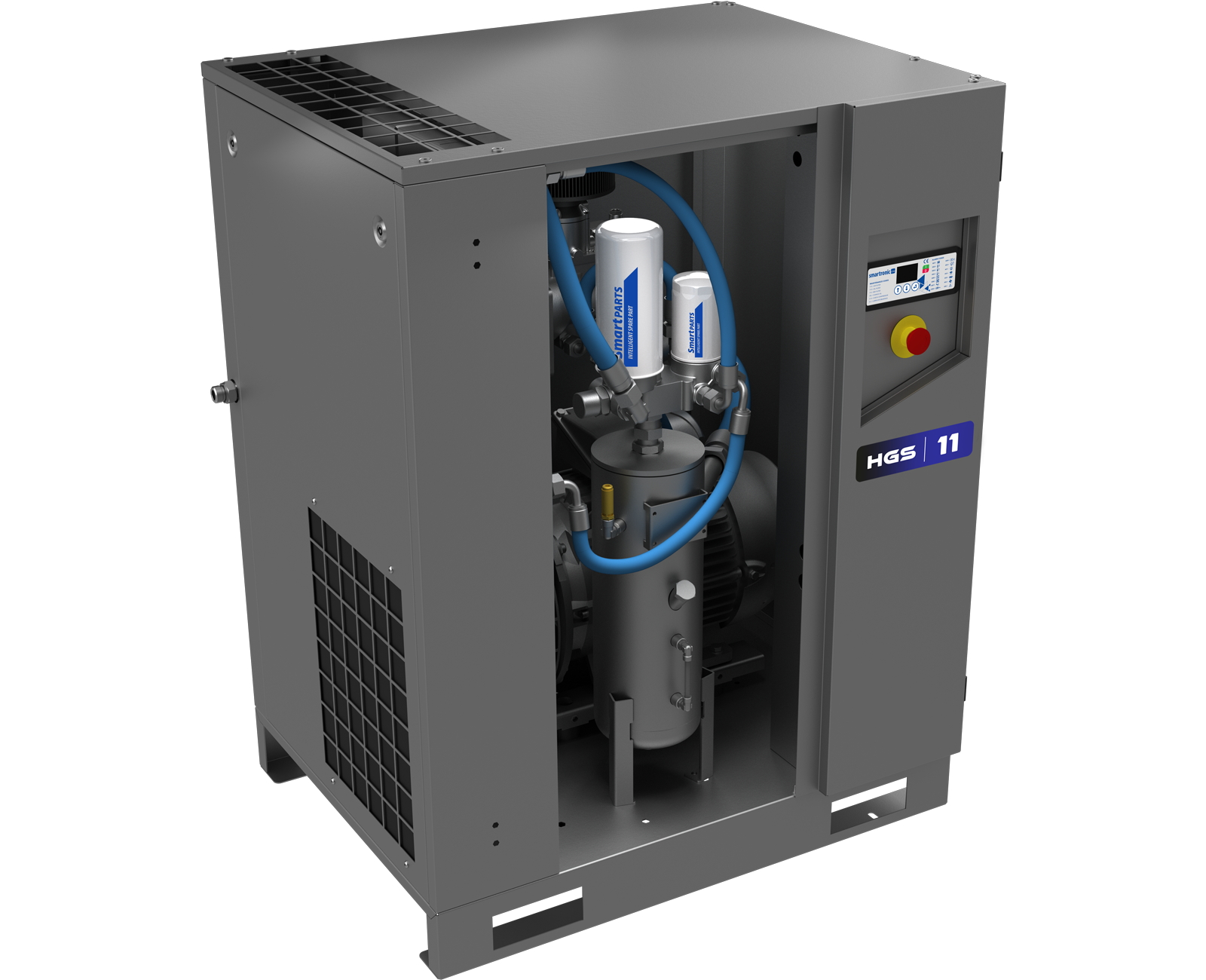

Intake System
• Optimized air intake chamber to separate cool air intake and hot air discharge
• Insulated cold air intake for energy efficiency (30 kW and above)
• Optimized noise levels
Air Filter
• Two-stage filtration (initial filtration/precision filtration) (18 kW and above)
• 99.9% efficiency in particle separation down to 3 microns
• Low pressure loss
• Easy maintenance
• Long service life

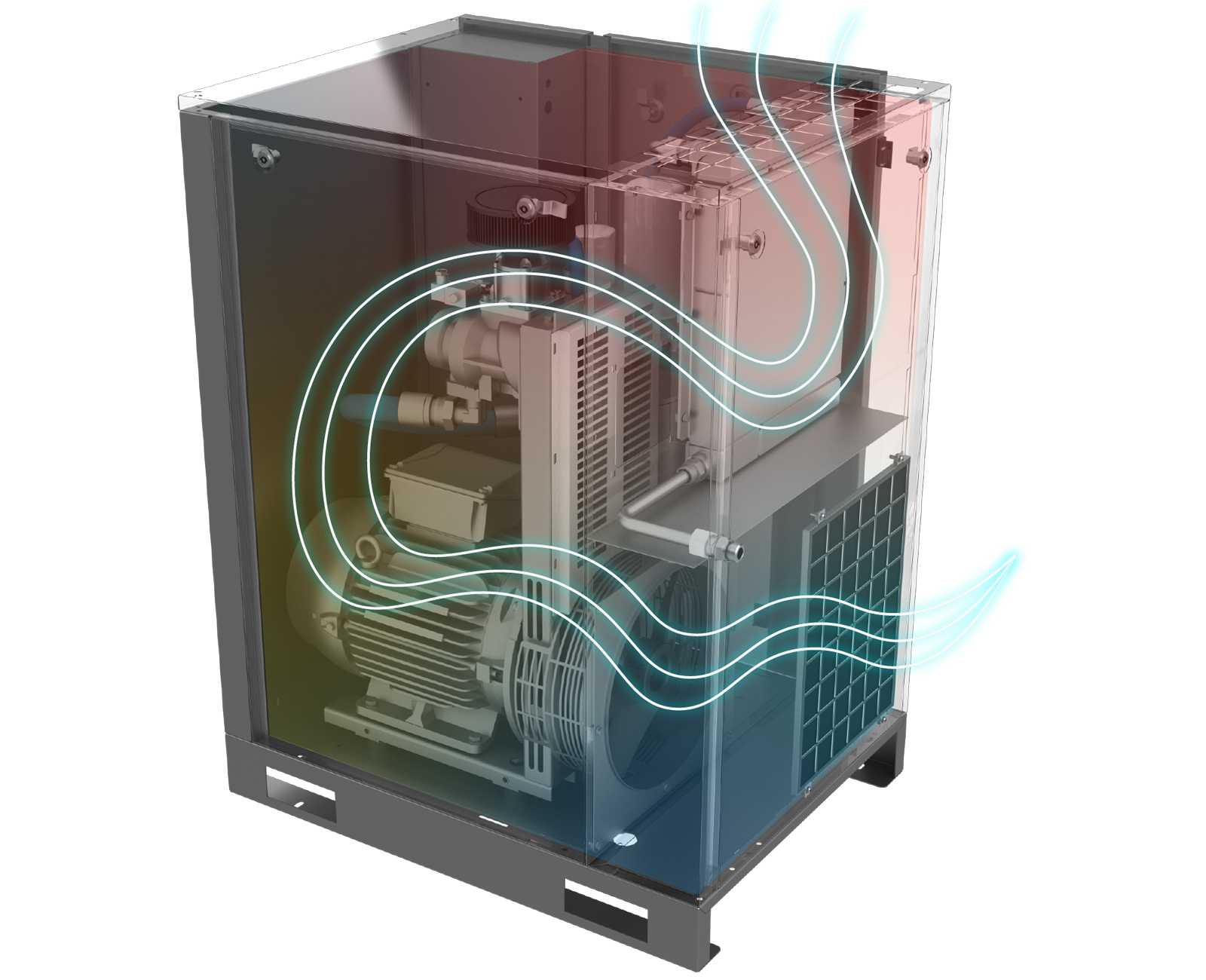

Cooling System
• High efficiency thanks to optimized cooling performance
• Temperature-controlled additional axial fan (30-75 kW)
• Minimum footprint with quiet and effective axial fan coupled directly to the main motor (2,2-22 kW)

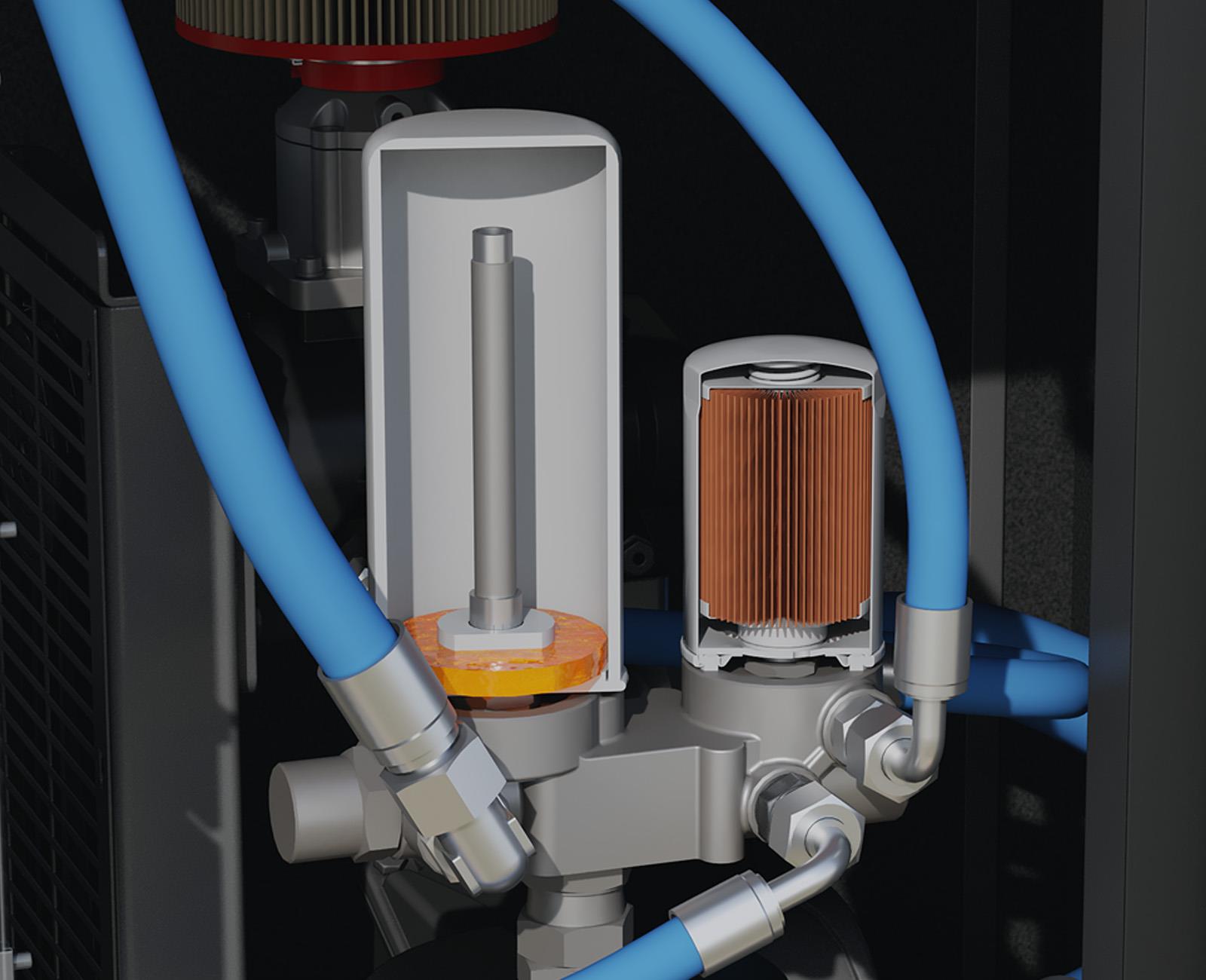

Oil Separator
• Longer lasting separators keep maintenance costs down
• Effective separator elements keep the amount of oil in the outlet air low (1-3 mg/m³) for highquality compressed air
Controller
• Without the need for an external main controller, ability to co-aged work synchronized with Master/Slave for up to two compressors
• Internal ModBus communication
• User-friendly on-screen interface
• Alarm log records last 20 alarms
• Maintenance warnings and log records
• Weekly scheduler for starting/stopping the machine at 3 different time intervals can be individually set for each day of the week (45 kW and above)
2,2-75 kW 7,5-8,5-10-13 bar 0,2-12,5 m³/min

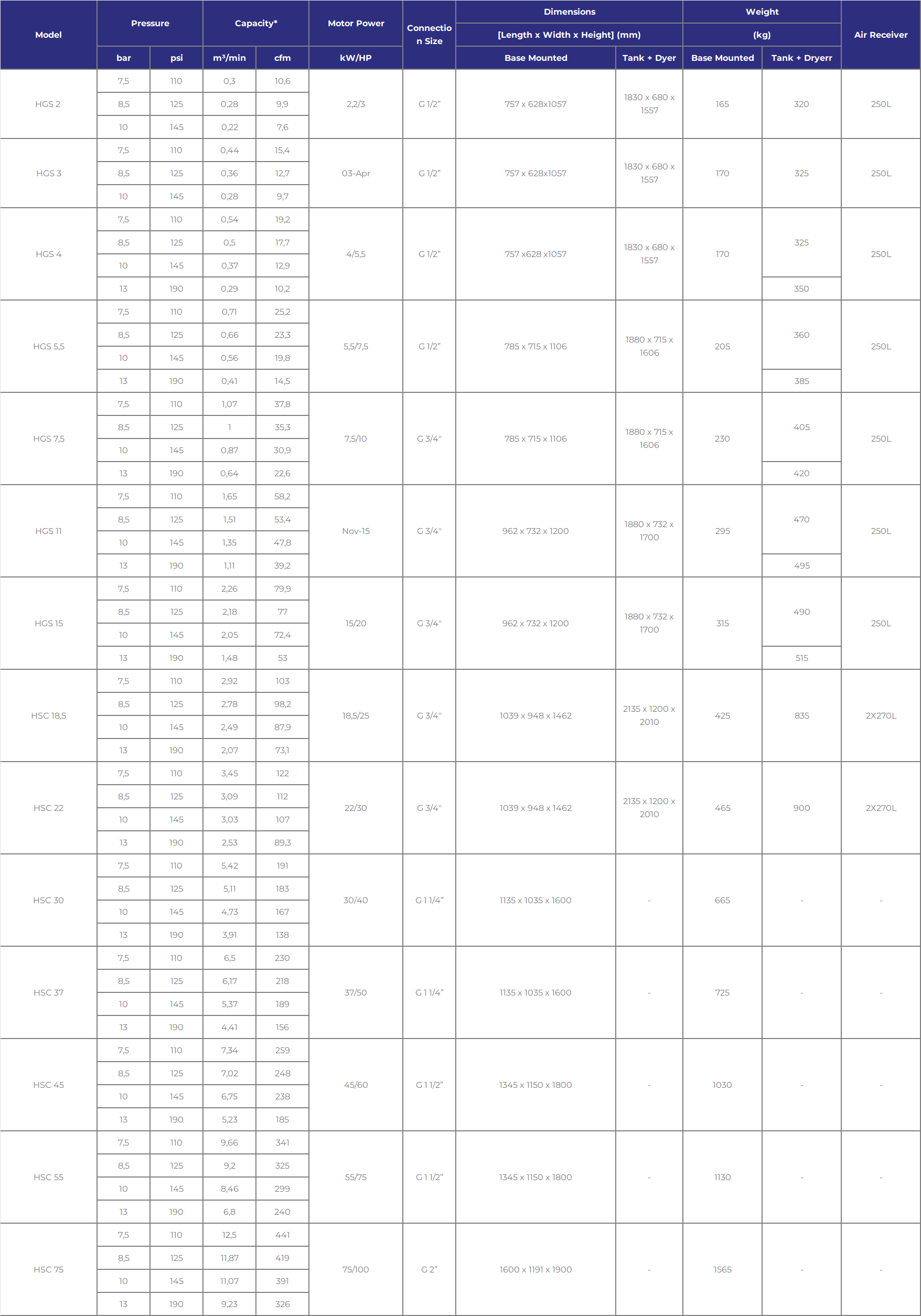

TECHNICAL SPECIFICATION
