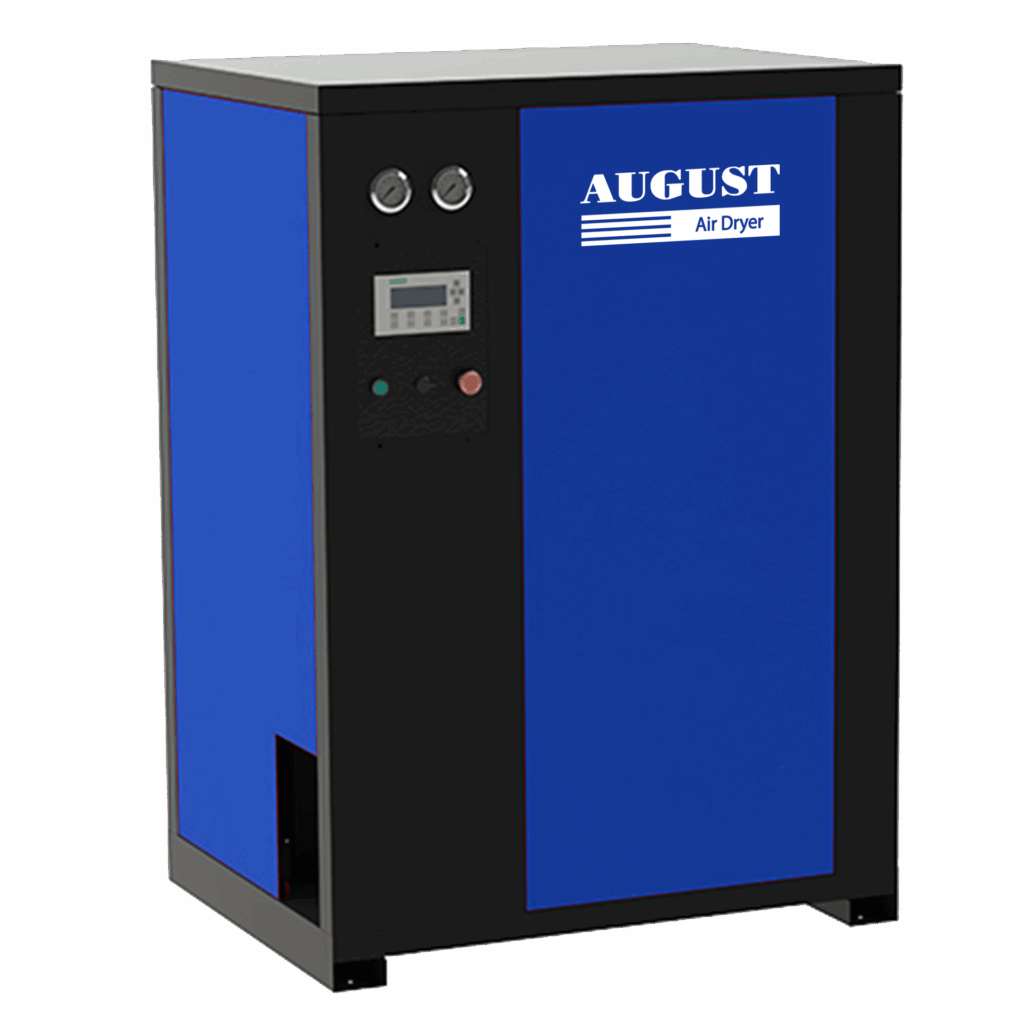

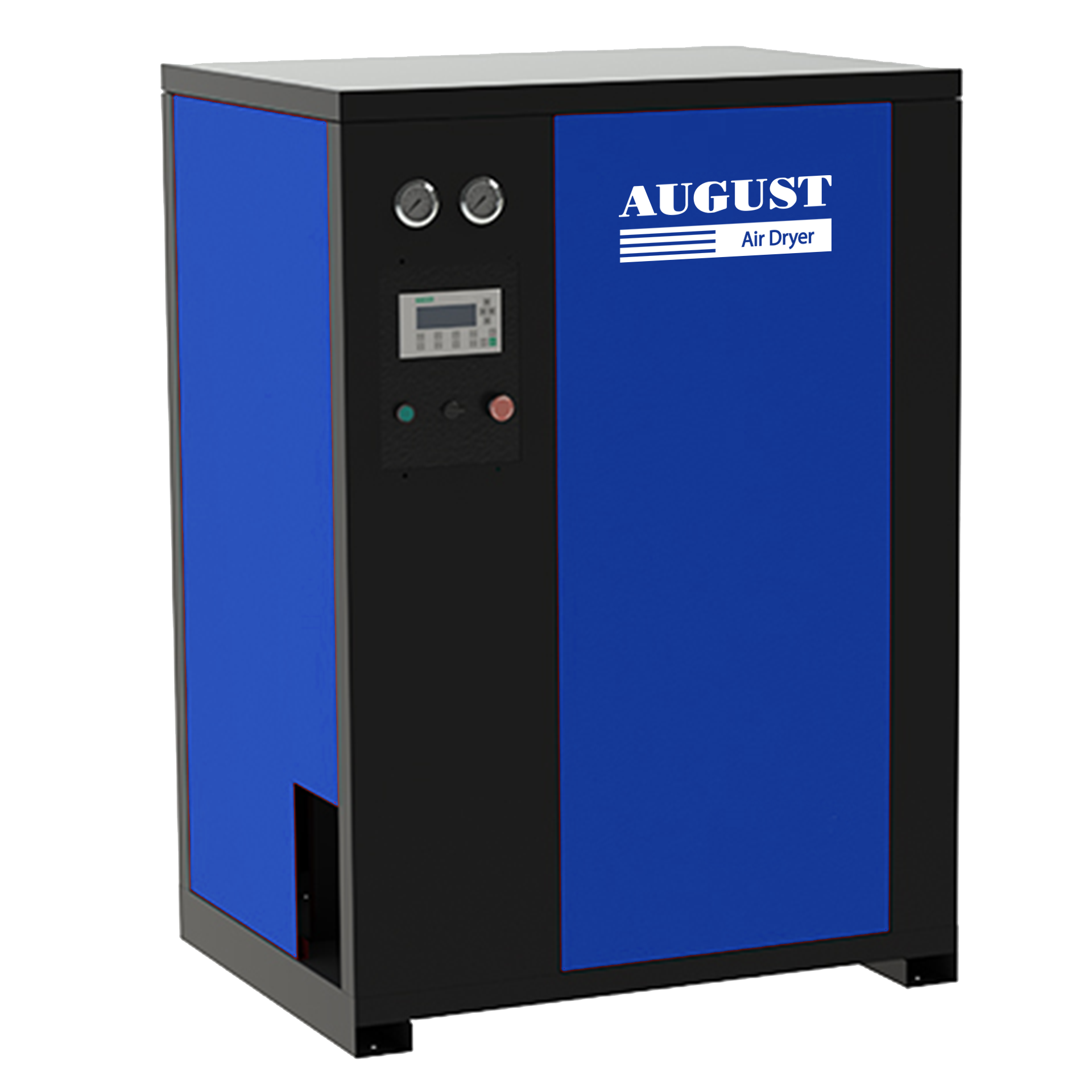

High Pressure RSLF Series
TECHNICAL  SPECIFICATION

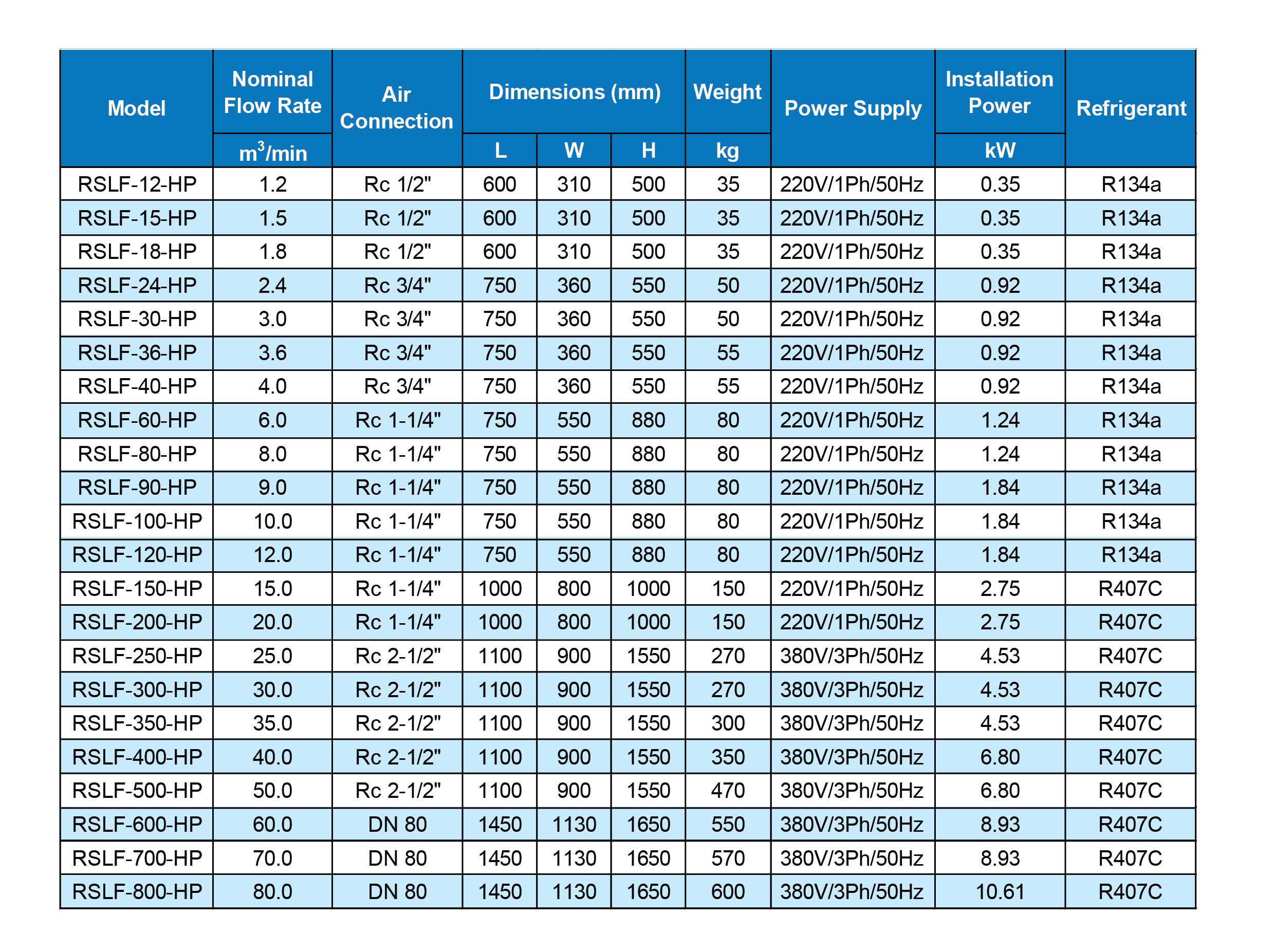

Technical Data RSLF High Pressure
Untitled-1 [Recovered]-03

'Nominal dryer flow rated at inlet pressure 40 barg, inlet air temperature 38°C .ambient temperature 38°C and pressure dew point 3°C to 10°C. Other power supply are available upon request.

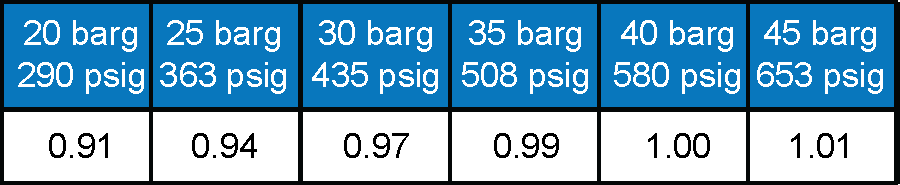

Correction factor for pressure (KA)

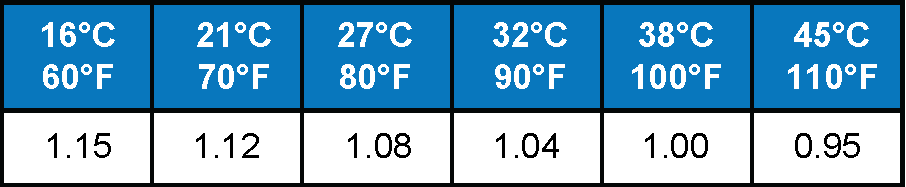

Correction factor for inlet temperature (KB)

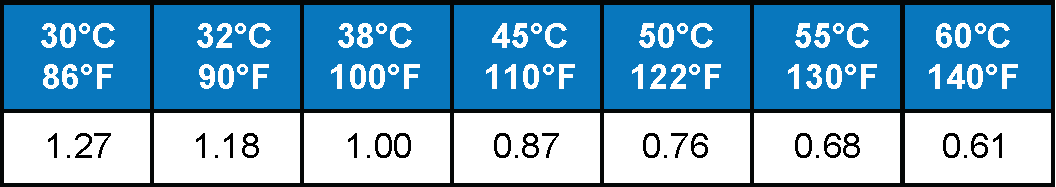

Correction factor for ambient temperature (KC)


1. Selected the correction factor (KA), (KB) and (KC).

2. Calculate the dryer capacity require using the following:              Actual flow rate = Nominal flow rate x KAx KB x KC
