HNG MOD Nitrogen Generato
Advantages
• Compact design, full automated operation
• Replaces manifold usage
• Touch Screen PLC for controlling the complete system
• New design silencer that operates at lower noise levels during pressurization and purge
• High performance

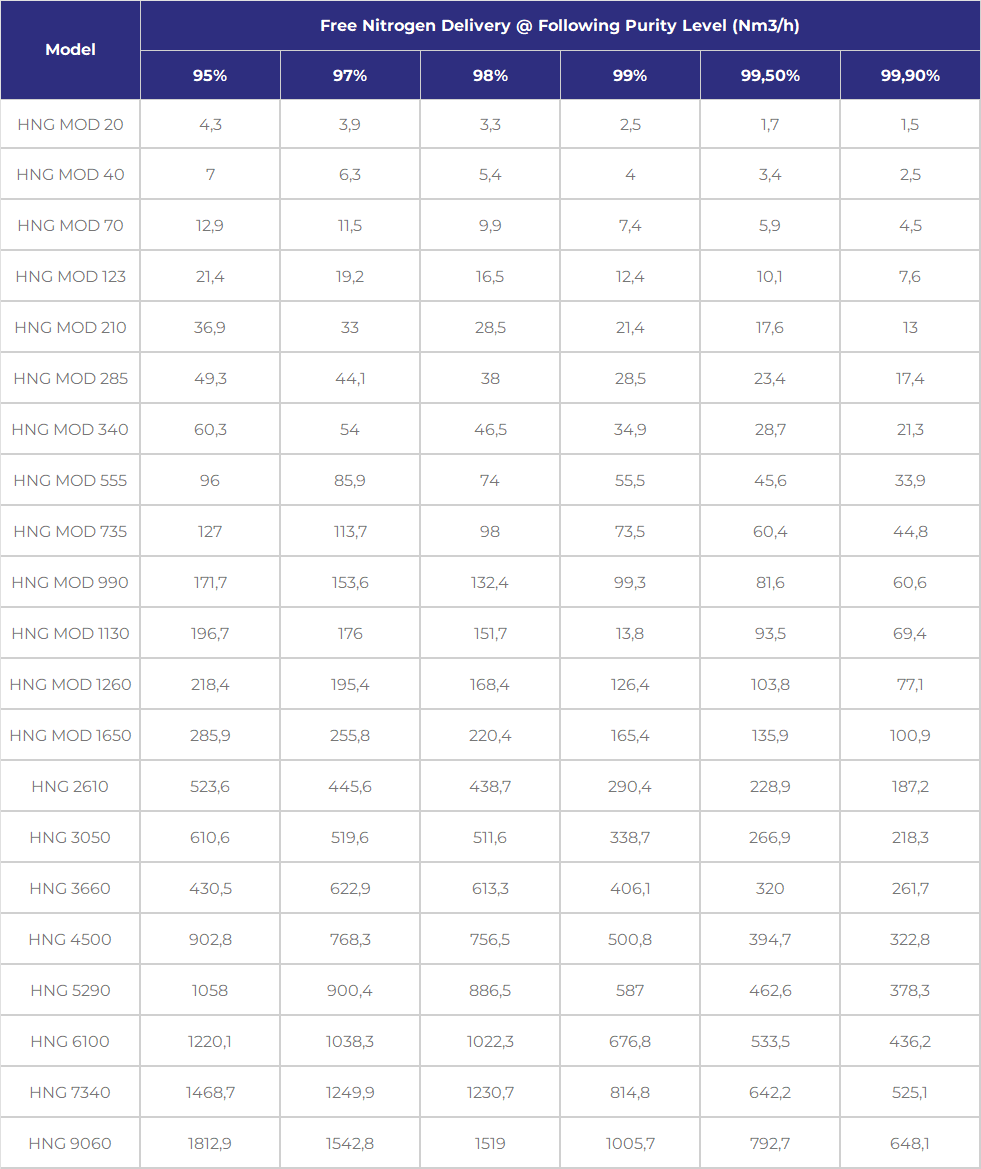

• The purity and capacity of nitrogen gas is designed to meet customer requirements (Nitrogen Purity 95%~99.999% is available)
• Durable piston valves for long-life operation
• Minimum maintenance cost
• Lower air-to-nitrogen (A/N) ratios and energy consumption
• High-sensitive sensor technologies
• Effective integrated filtration
Nitrogen is separated from oxygen and enriched with the Carbon Molecular Sieve (CMS) adsorbent used in Hertz Pressure Swing Adsorption (PSA) type Nitrogen generators.
Carbon Molecular Sieve (CMS) allows nitrogen to pass through the line by adsorbing oxygen and water vapor molecules under a certain pressure. Hertz Nitrogen Generator has a compact structure through multiple modules filled with Carbon Molecular Sieve.
Clean and dry air is directed to the modules in a sequential manner for the adsorption process. The Carbon Molecular Sieve (CMS) in the modules adsorbs oxygen and water vapor molecules and keeps them in its pores, allowing nitrogen molecules to pass through. Thus, nitrogen gas is produced (Purity levels can be between 95-99.999% depending on the areas of use and customer expectations).
Standard
• Nitrogen Modules • Silencer • Mini PLC • Manometers • Proportional Valve • Pressure Transmitter • ECO Mod • T Filter • Piston Valves • Valve Control Regulator
Optional
• Dew Point Sensor Kit • Flowmeter Kit • Carbolescer • Oxygen Analyzer Kit • Basınç Regülatörü • 3-Way By-Pass Valve Kit • HMI Color Touch Screen PLC • Buffer Tank • Oil Indicator
