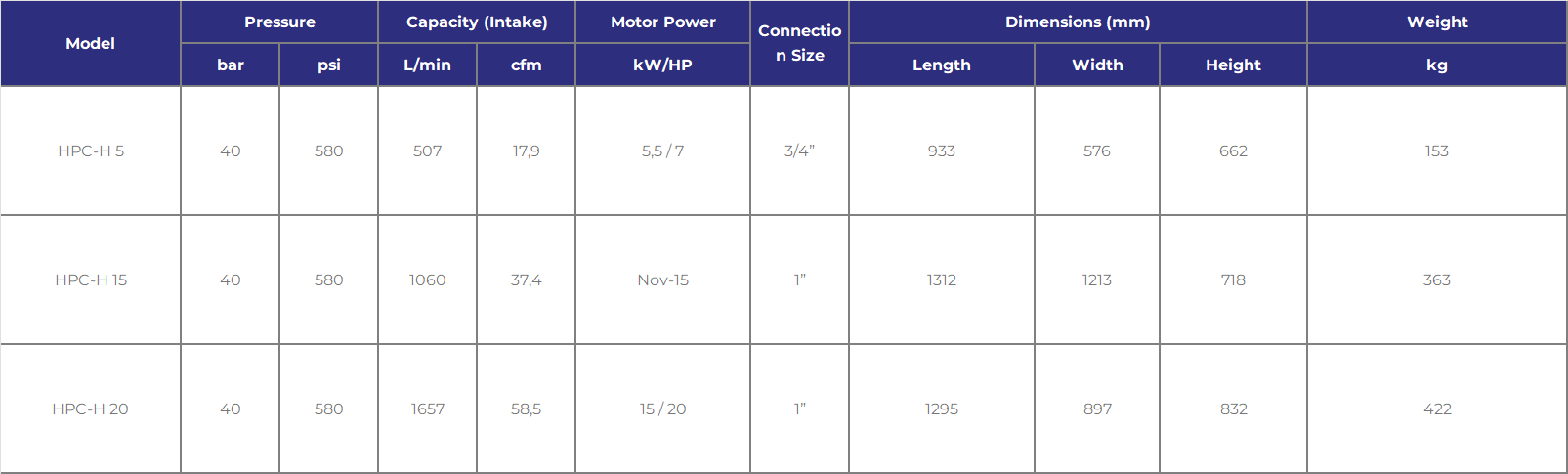

7,5-20 kW
40 bar
507-1657 l/min

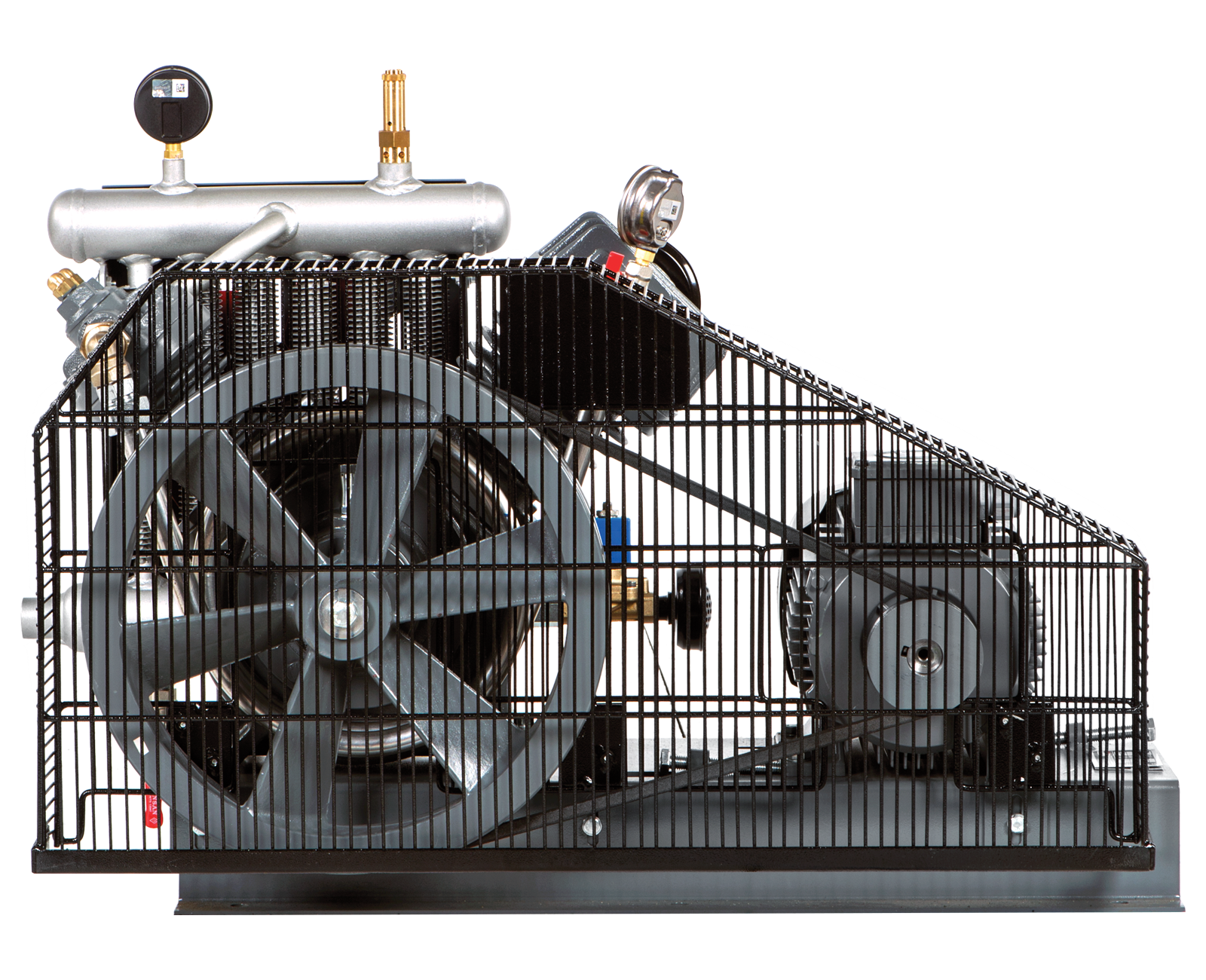

Oil Injected, High Pressure, Belt Driven

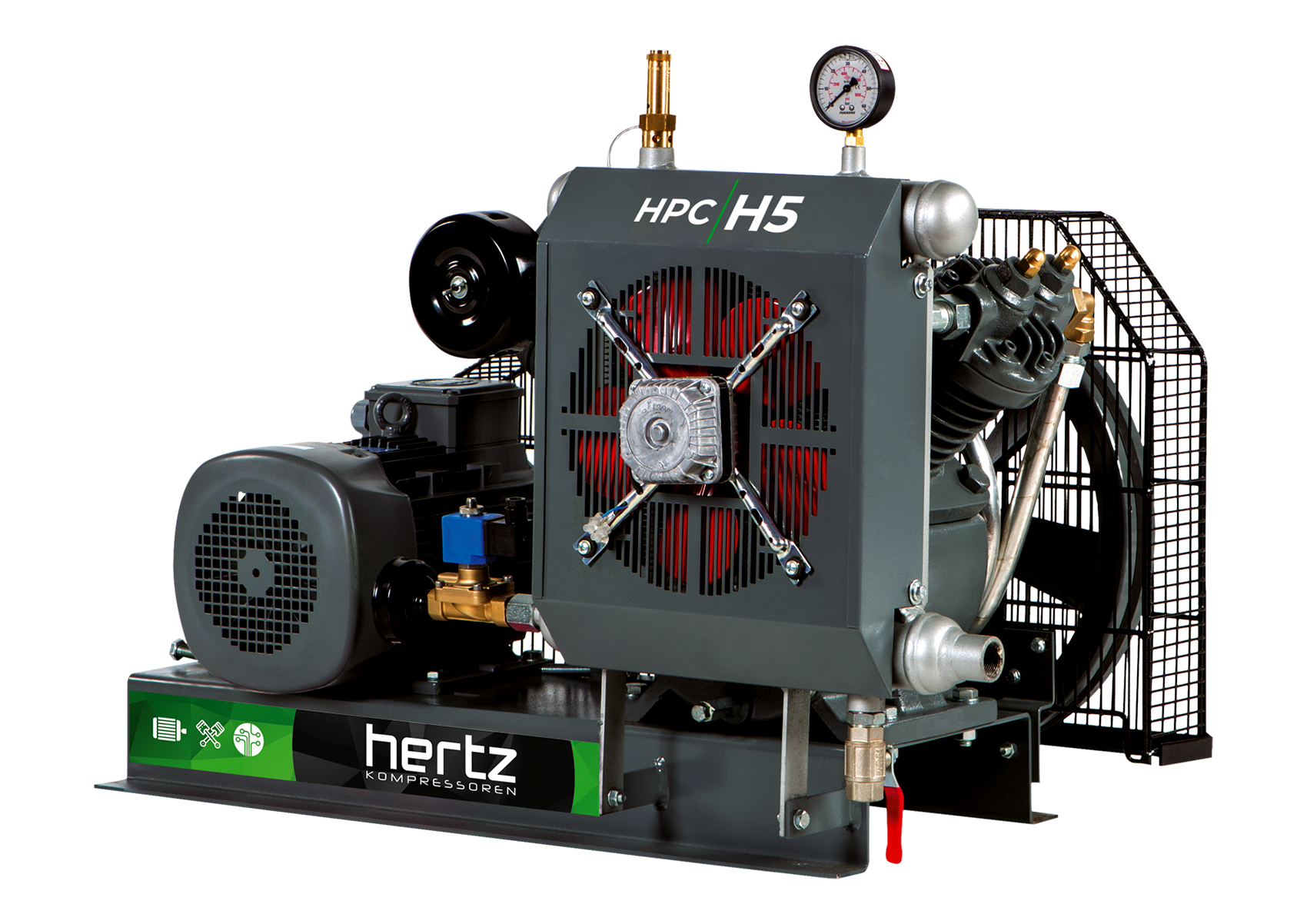

Reciprocating High Pressure Air Compressors
We offer ideal air solutions for high pressure applications.
Advantages
• Lightweight and robust composite cabinet provides high-performance cooling, protects the cylinder heads from impacts, and prevents the operator from coming into contact with moving and hot components.
• Ease of installation and strong components for longer uptimes and user-friendly operation.
• Safe, low-maintenance operation thanks to integrated flexible coupling
General Features
• PLC-based control and system monitoring with digital display panel
• High efficiency motor
• Oil trap air filtration system (Optional)
• Direct coupled

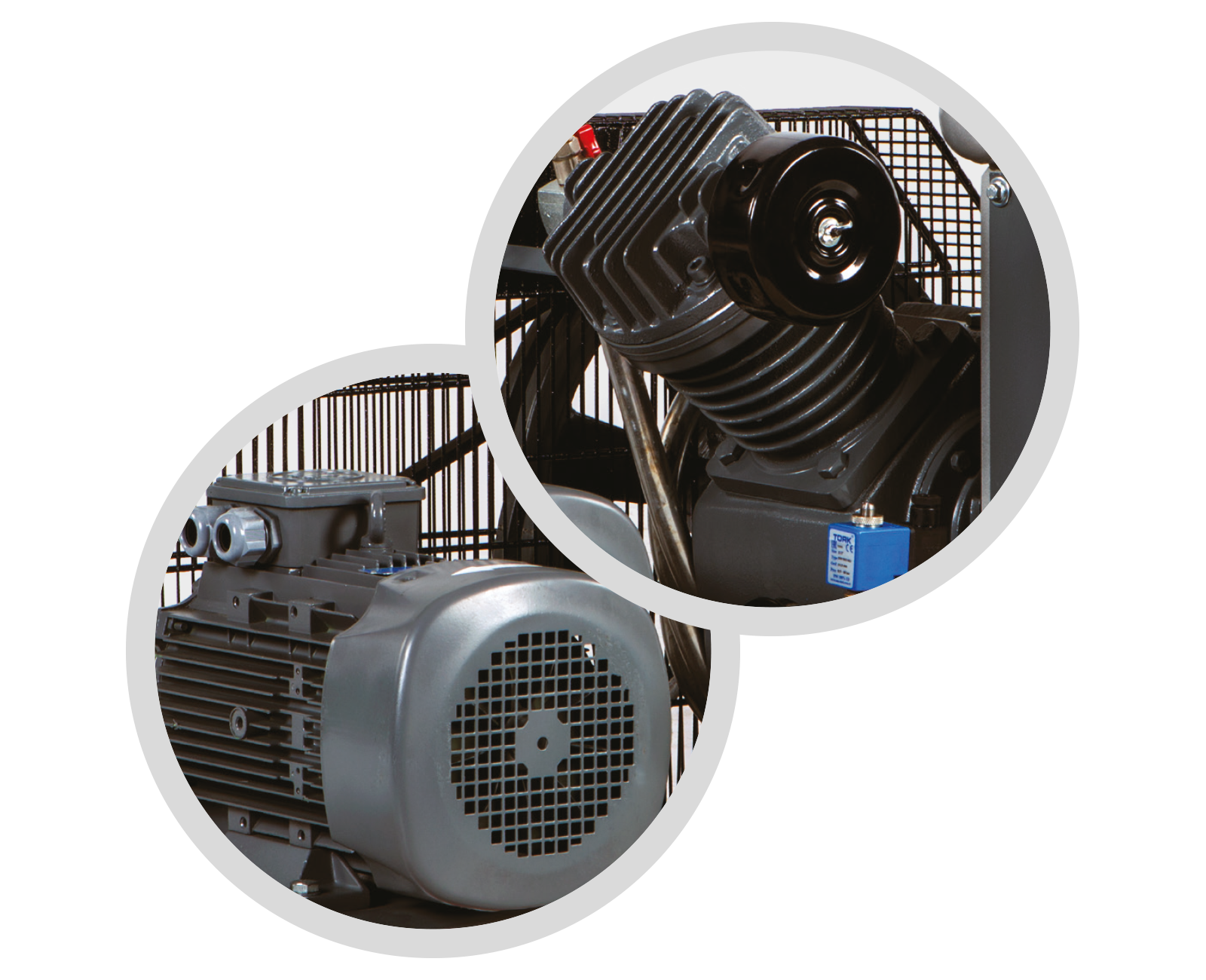

Main Motor and Drive System
• IE3 efficiency-class electric motor
• Direct coupled with elastic coupling
• Star/delta motor starter
• Special loadless start system and automatic discharge system for loadless start
• Soft starter (optional)
Compressor Block
• Cast iron cylinder and cylinder heads with cooling fins
• Specially designed high-speed stainless steel concentric valves
• High-strength cast iron oil sumps
• Dynamically balanced cast steel crankshaft and counterweight
• Special aluminium alloy pistons and cast steel connecting rods
• Stainless steel, high-pressure resistant specially designed suction-discharge valves
Safety System
• Integrated check valve in air outlet line

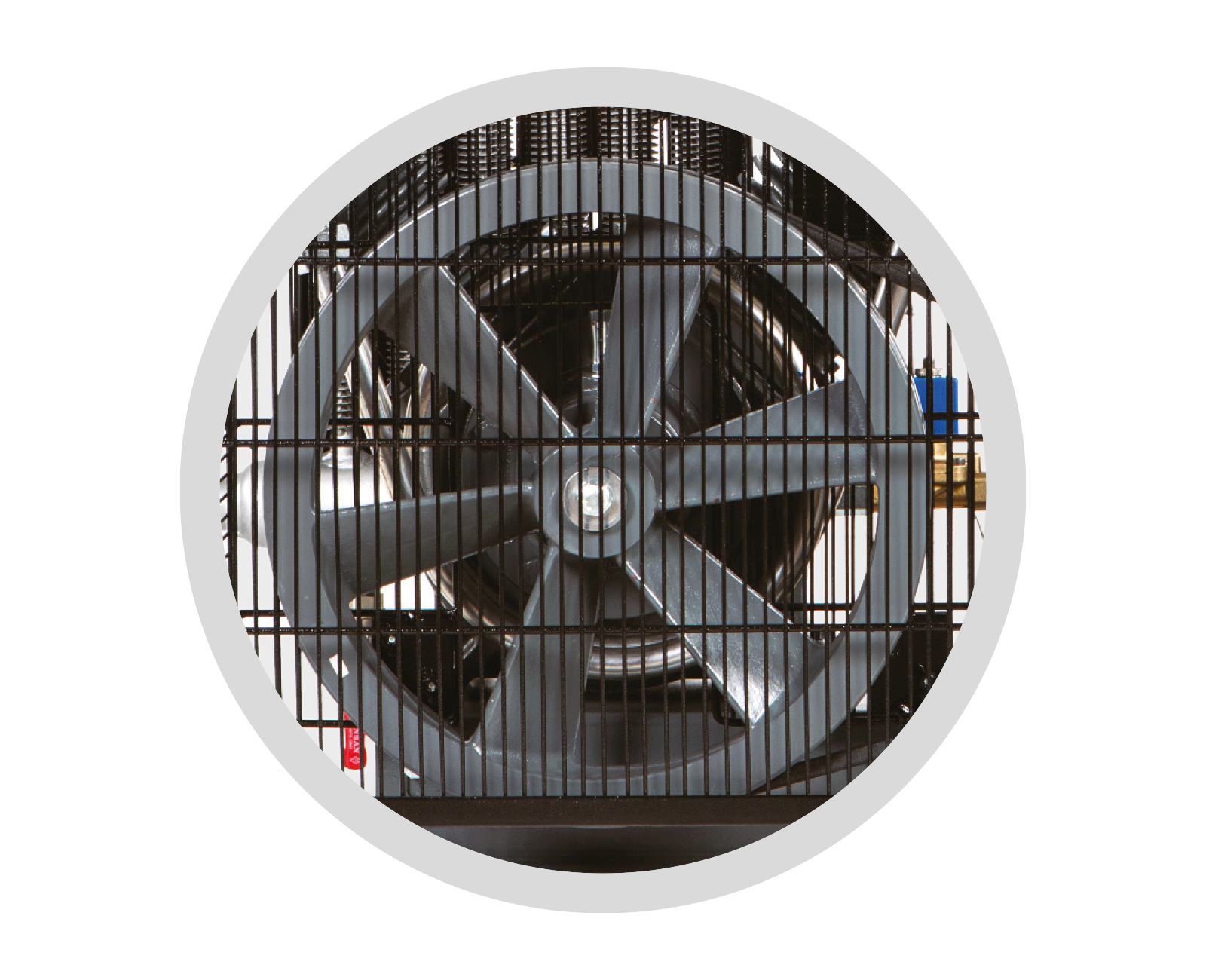

• Belt pulley housing guard
• High-pressure switch
• First and second stage relief valves
• Outlet pressure manometer
• First stage pressure manometer
