Compy

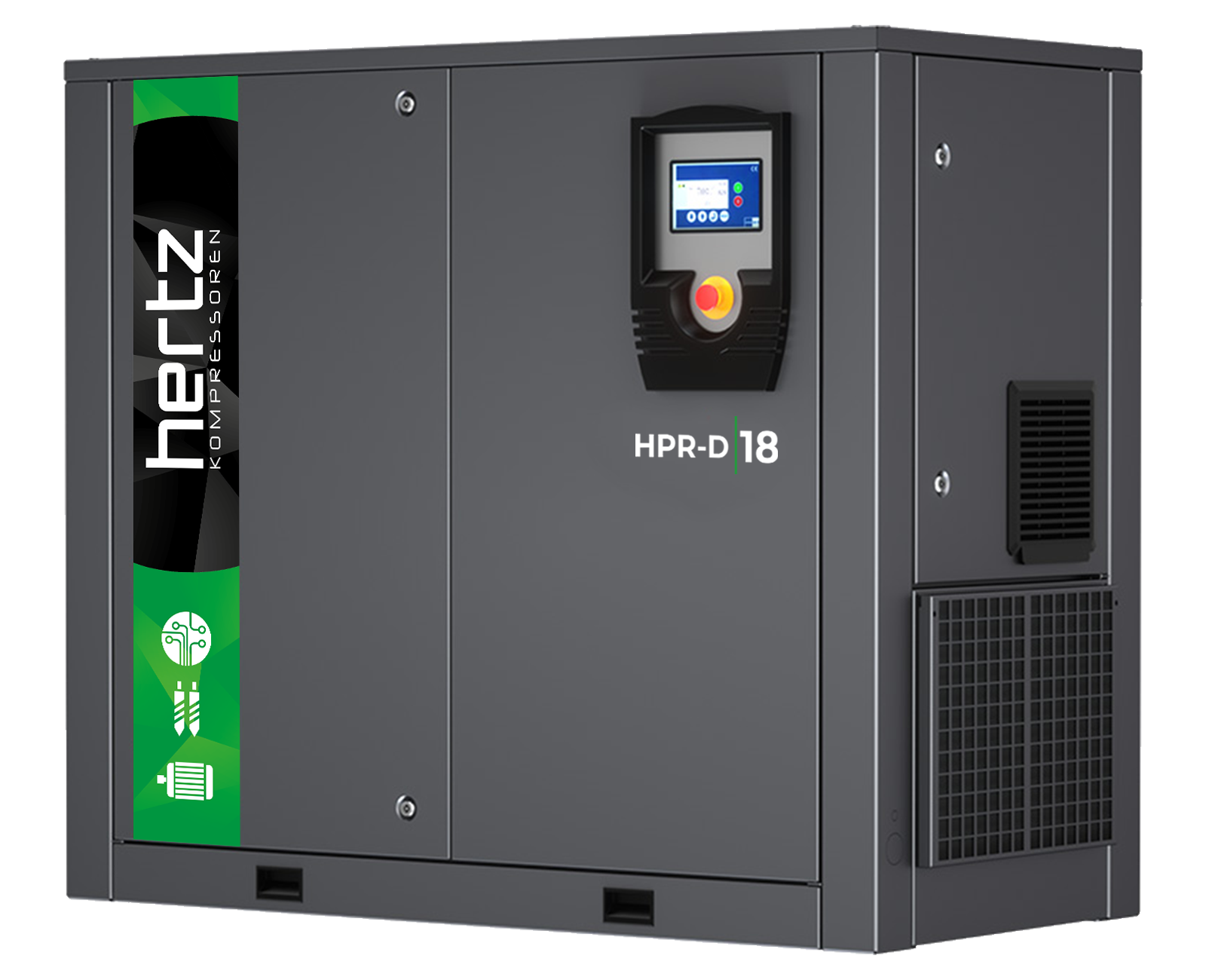

dprd-d-1-38

18-75 kW 7,5-8,5-10-13 bar 2,6-14,8 m³/min

Oil Injected, Direct Coupled, Fixed Speed

Rotary Screw Air Compressors

Hertz HPR D series compressors deliver high performance by reducing the power transfer losses with their directly-coupled motor and screw block. Operation expenses are reduced thanks to usage of the latest generation screw block and motor. Stops are minimized with continuously supplied air. HPR D series compressors are designed with a compressor design in compliance with European energy efficiency directives (2009/125/EC). Responds to all requirements between 18 and 75 kW.
✔ IE3 efficiency class
✔ Motors with class B temperature increase
✔ Motor design suitable for 50 °C ambient temperature
✔ Low vibration

18-75 kW 7,5-8,5-10-13 bar 2,6-14,8 m³/min

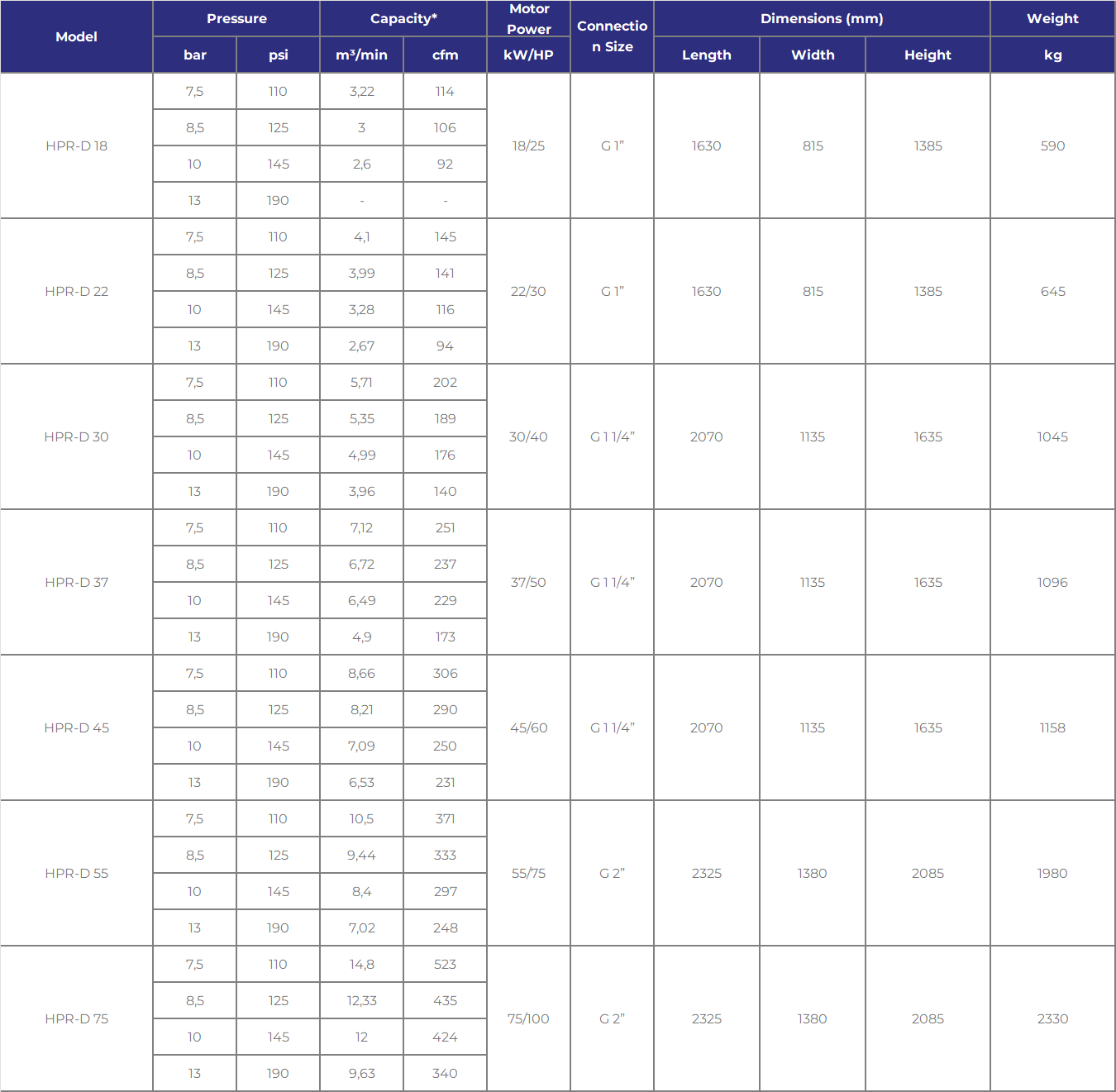

TECHNICAL SPECIFICATION

- Unit performances measured in reference conditions which are 1 bar absolute air Pressure, %0 relative humidity, 20°C inlet air temperature, 71°C thermostatic valve set temperature and use of Smartoil.
- Hertz Kompressoren reserves its rights to make changes in its products and specifications without prior notice.
* Refers to free air delivery measured according to ISO 1217:2009, Annex E standard.
