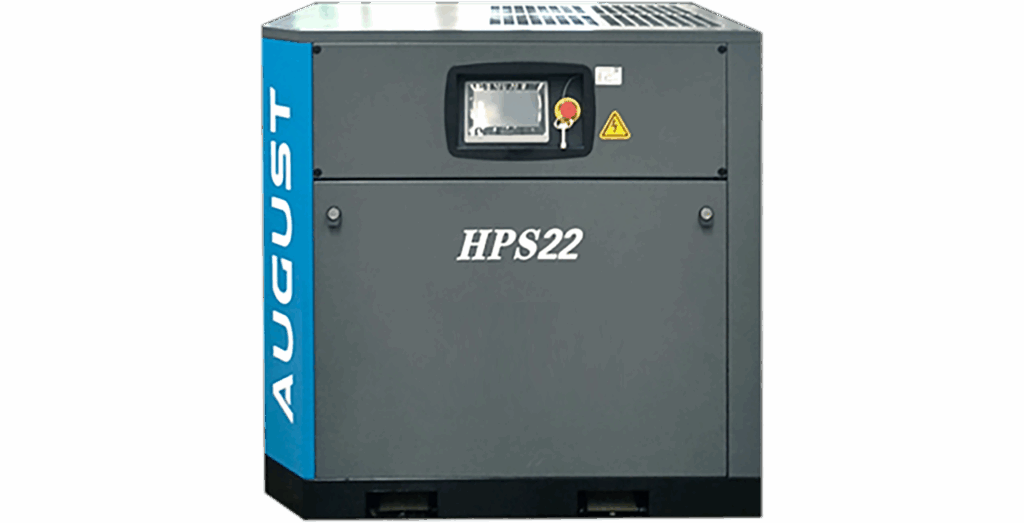

Special For Laser Cut HPS Series
· Air compressor, storage tank, air dryer ,
precision filter integrated in one , 5 levels of precision filtration
(air-water separator +P class +M class +S class +H class), efficient water
removal, dust removal and oil removal, to ensure the stable operation of laser
machine;
· High efficiency and energy saving aluminum alloy
three-in-one heat exchange air dryer,multi intelligent monitoring of
temperature and pressure, R134A environmental refrigerant, standard
anti-freezing constant pressure expansion valve;
· Simple installation, convenient, save space.

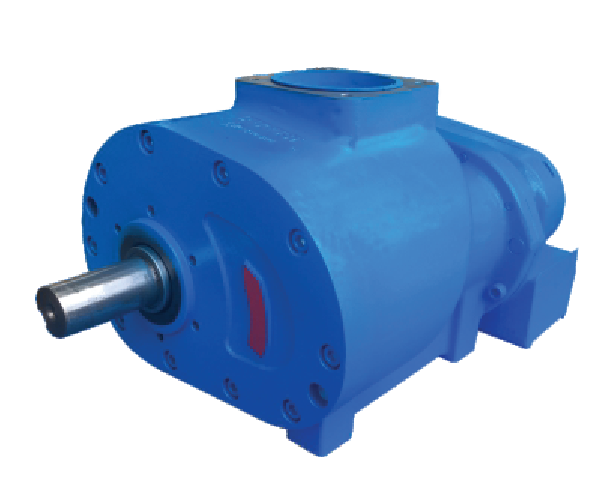

16 bar high pressure air end Air End
· Germany imported Klingelnberg rotor grinding
machine 0.01mm grade grinding process,to ensure the processing accuracy of the
screw;
· High efficiency SKF/NSK imported 6 pcs
bearings,bearing design life 50, 000 hours;
· The air end and motor are directly connected by
the coupling, which has high transmission efficiency; Split type design, easy
maintenance.

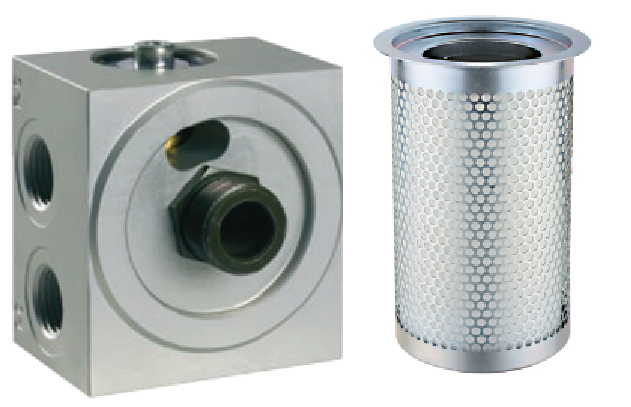

Special temperature control valve, high pressure separator element
· Standard high pressure, high temperature type
temperature control valve, to prevent oil emulsification;
· 2, 16 bar high pressure type separator element,
2 times the processing
· capacity design, compressed air oil content＜2ppm.

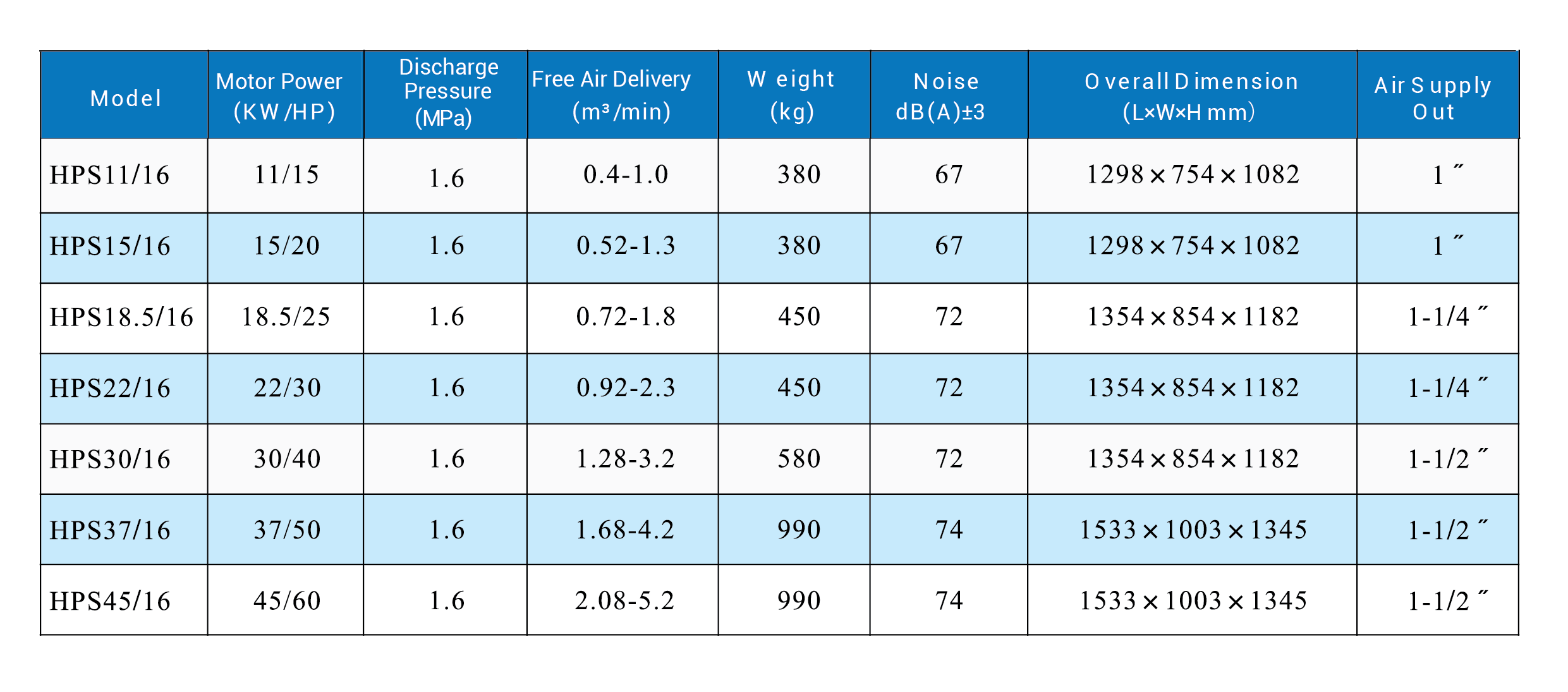

TECHNICAL SPECIFICATION
HPS Series Spesification
