Key Features
• Very low pressure losses
• Design suitable for tropical climates
• R-134a Refrigerant
• Operates at 60°C inlet temperature and 50°C ambient temperature
• Compact design
• Minimum footprint
• Digital controller for energy savings
• High efficiency
• Ease of access
• Separate electrical and cooling sections
What is a refrigerated air dryer?
They cool the compressed air passing through them and keep that air dry down to the dew point of +3°C.
Inlet and outlet filters integrated into the dryer (up to the HRD 210 model) reduce the particle level by 0.01 microns and the oil particle level by 0.01 mg/m³.

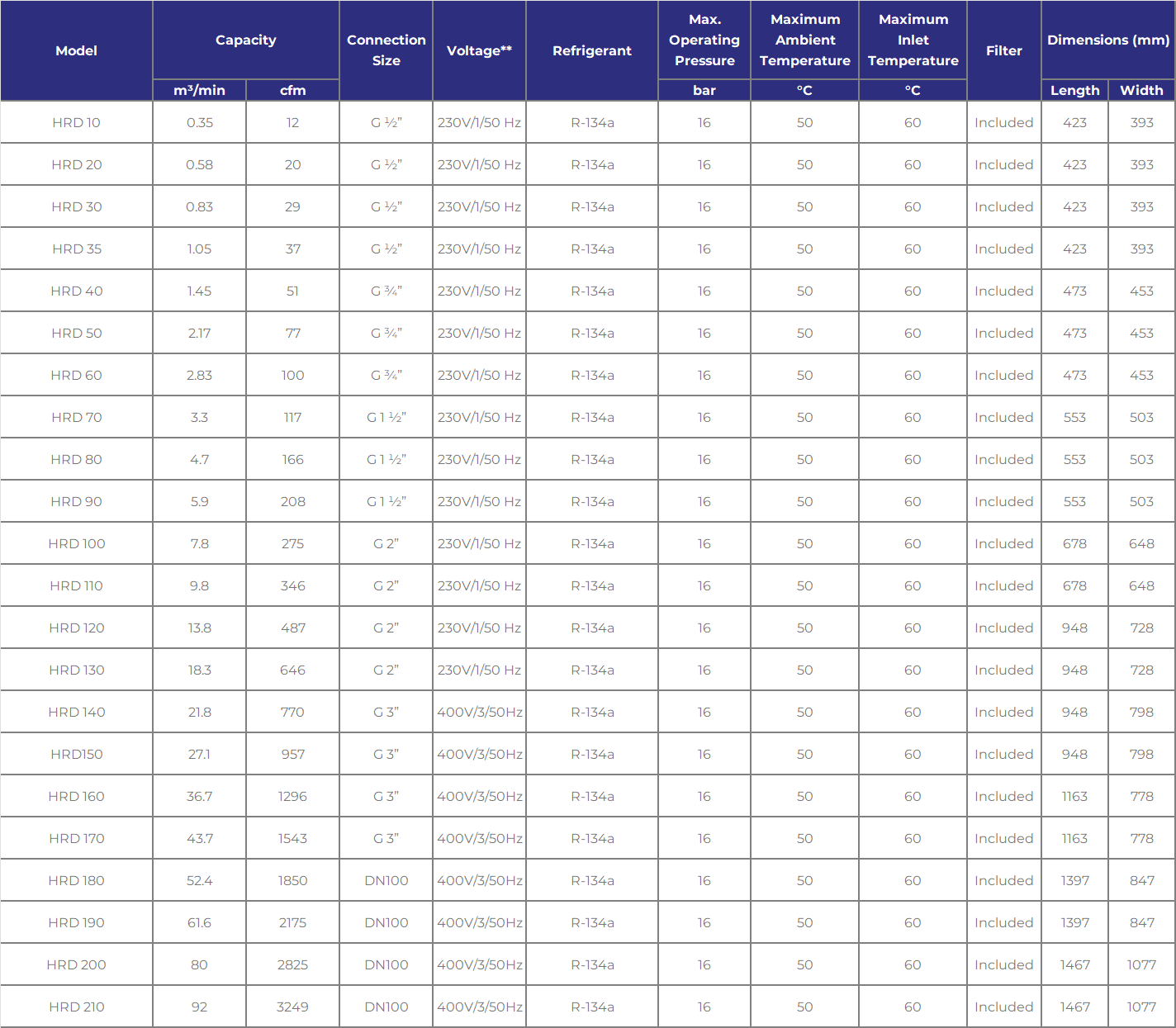

TECHNICAL SPECIFICATION
- Hertz Kompressoren reserves its rights to change the specifications without any prior notice.
* Capacity is given at atmospheric Pressure at 20 °C (ISO 1217) in accordance with norms ISO 7183-8573-1 and Pneurop 6611- Class 4-7 bar -35 °C inlet - 25 °C ambient.
** Consult sales representative for optional voltages
