scroll-hertz-vars-1-e4

 1,5-30 kW   8-10 bar  0,16-3,4 m³/min

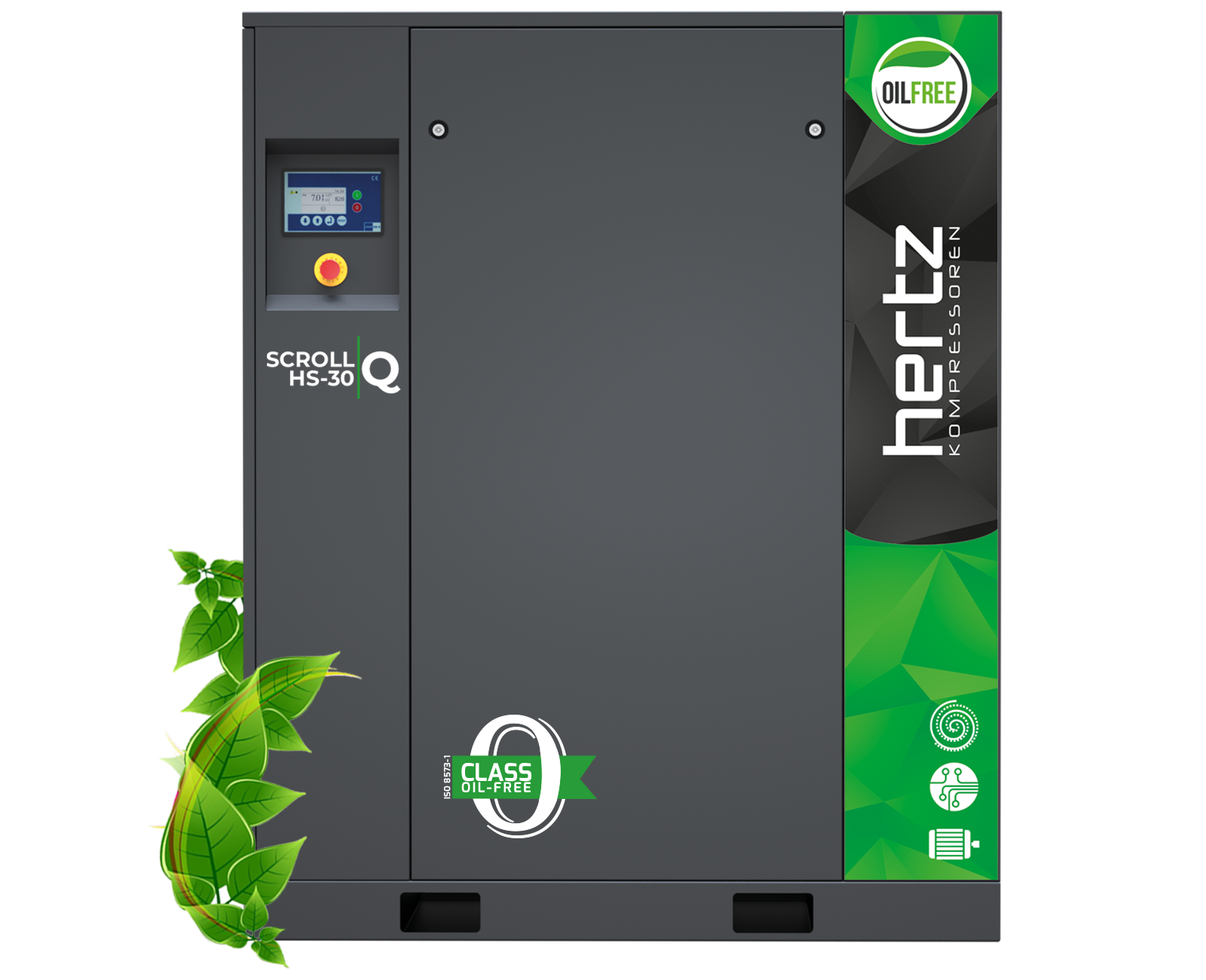

Scroll Air Compressors
Your solution partner specially designed to meet 100% of the air needs in the food and beverage, chemical, pharma, and healthcare industries where oil-free air quality is essential.

 Advantages

 Low noise level thanks to low-vibration operation.

 User-friendly, robust and long-lasting microprocessor control device with communication features based on the product smooth operation and interruption-free production.

 Component placement specifically designed to reduce downtimes during maintenance process.



Hertz water separators are designed to remove liquid water and some particulates in compressed air at the compressor outlet.

Their unique centrifugal effect separates heavier-than-air matter and the low pressure drop makes them energy-efficient.

tank-mounted-dryer-1-ed

 General Features

 Compact design

 Soundproofed canopy

 Internal air cooler(s), water separator, and stainless pipes

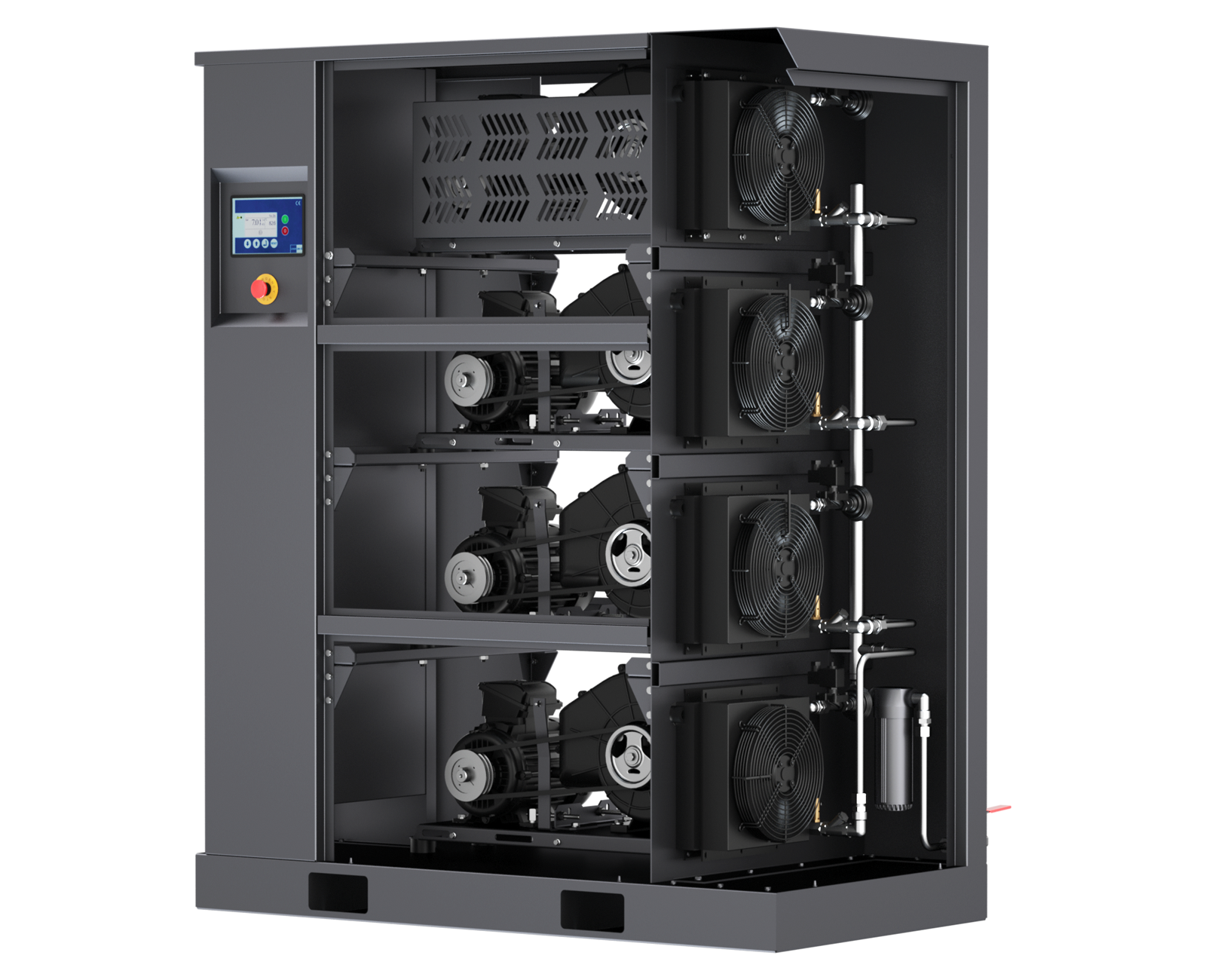

 Robust and durable single unit or stacked design

 Main Motor and Drive System

 IE3 efficiency-class electric motors

 Belt-pulley drive system

 Easy belt tensioning system

 Compressor Block

 Effective and oil-free scroll design

 Integrated cooling fan on the scroll unit for effective cooling

• Star/delta connection (3,7 kW and above)

scroll-drive-sysytem-1-f2
scroll-engineering-1-74

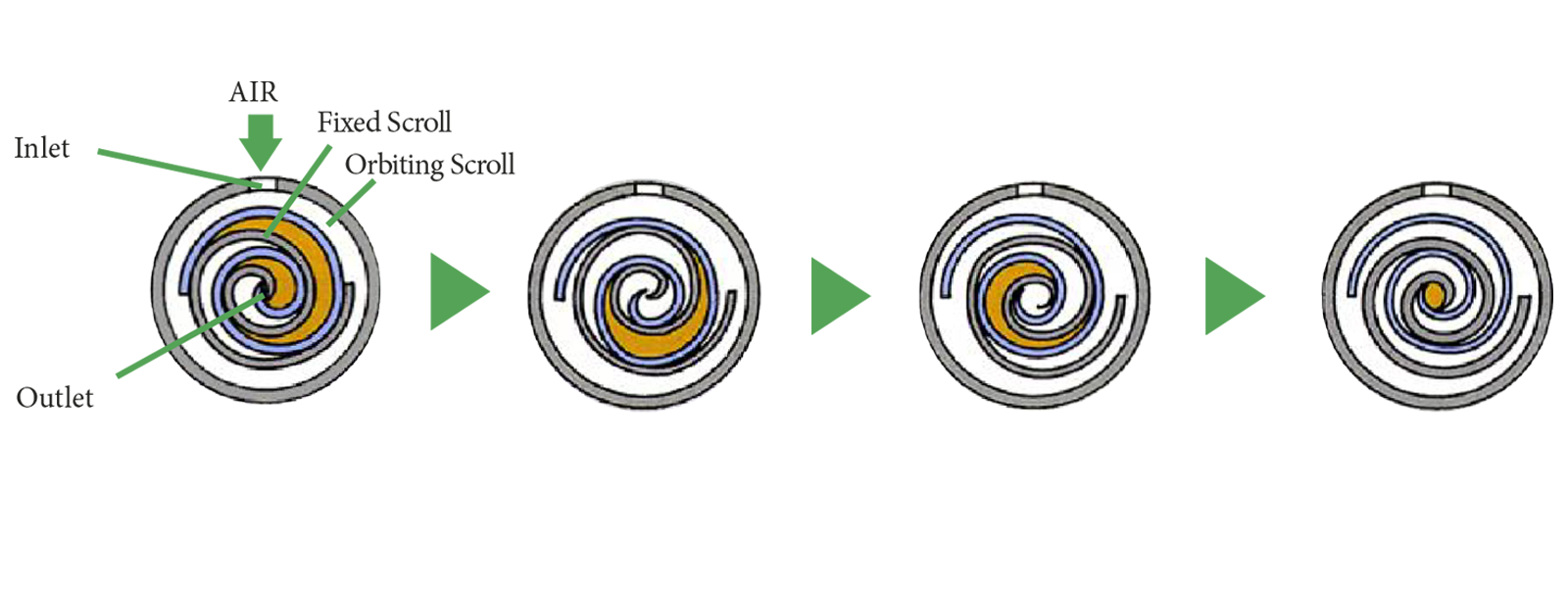

 Scroll Type Compression Principle

Orbital and fixed spiral elements align to create compression chambers.

The continuous movement of the orbital spiral compresses air from the atmosphere producing oil-free and pollutant-free air.

 100% Oil-Free Compressed Air

 It is designed in accordance with sensitive and accurate production conditions.

 It protects the environment and saves energy.

 It is produced in accordance with all global standards and regulations.

 It prevents damage to your products and the contamination of your production lines.

 Therefore, it eliminates unnecessary machine downtime.

 It guarantees the high quality compressed air you need.

green-oil-free-1-27

 Controller

 Without the need for an external main controller, ability to co-aged work synchronized with Master/Slave for up to two compressors

 Internal ModBus communication

 User-friendly on-screen interface

 Alarm log records last 20 alarms


For double stage and above

 Weekly scheduler for starting/stopping the machine at 3 different time intervals can be individually set for each day of the week

 Maintenance warnings and log records

• Equal ageing through scroll units

• Automatic start/stop of units according to air demand

tank-m-1-c9

 1,5-30 kW   8-10 bar  0,16-3,4 m³/min

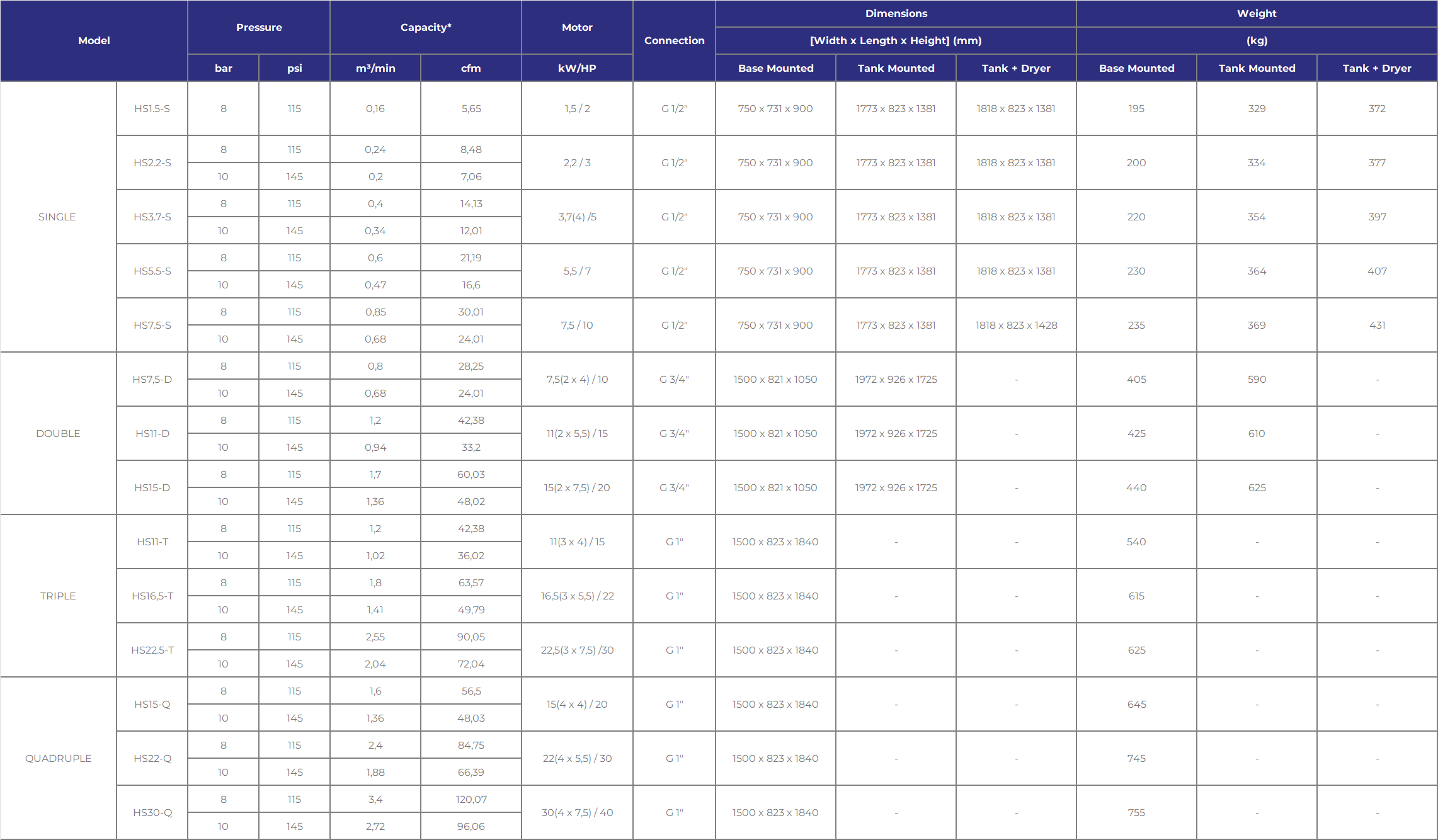

TECHNICAL  SPECIFICATION

- Unit performances measured in reference conditions which are 1 bar absolute air Pressure, 0% relative humidity, 20°C inlet air temperature, 71°C thermostatic valve set temperature and use of Smartoil.
- Hertz reserves its rights to make changes in its products and specifications without prior notice.
