Screw MP Series
Intelligent Control System
Direct display: discharge temperature, discharge pressure, operating frequency, current, power, operating state. Realtime monitoring of discharge temperature, discharge
pressure, current, frequency fluctuations. The Internet of things module is optional, the intelligent management system of cloud terminal, The operation status can be mastered in real time through mobile terminal, can achieve remote start and stop, remote online monitoring functions.
·
Air Cooled
·
Twin Screw Single Stage Air End — August-
Brand
·
5 Year Rotor Warranty
·
45,000-50,000 Working Hours Engineered
Lifetime
·
Energy Saving Micro Control System, Fully
Automated Operation
·
Easy Maintenance
·
Low-noise Operation, Closed Cabinet
Structure,
·
Noise Reducing Dumping Mats Made Of Fire Retardant Materials
·
Belt Drive, Direct Coupling, Gear Drive
· Efficient, Safe and Reliable Fully Enclose Motor Drive (ipS4, F Class / IPSS Optional)
·
Double variable frequency system and independent
fan control : permanent magnet motor
variable frequency + cooling fan
variable frequency + independent fan control
·
Constant paressure air supply: air supply
pressure is accurately controlled within 0.01MPa
·
Constant temperature gas supply: the general
temperature is set at about 85℃, so that the oil lubrication
effect is good while avoiding high temperature jumping
·
No empty load, reduce energy consumption by 45
%, eliminate excess pressure
·
The range of variable frequency is 30%- 100%,
larger than
·
general variable frequency
·
Vector air supply,accurate calculation, to
ensure that the air compressor production and customer system air demand at all
times to maintain the same

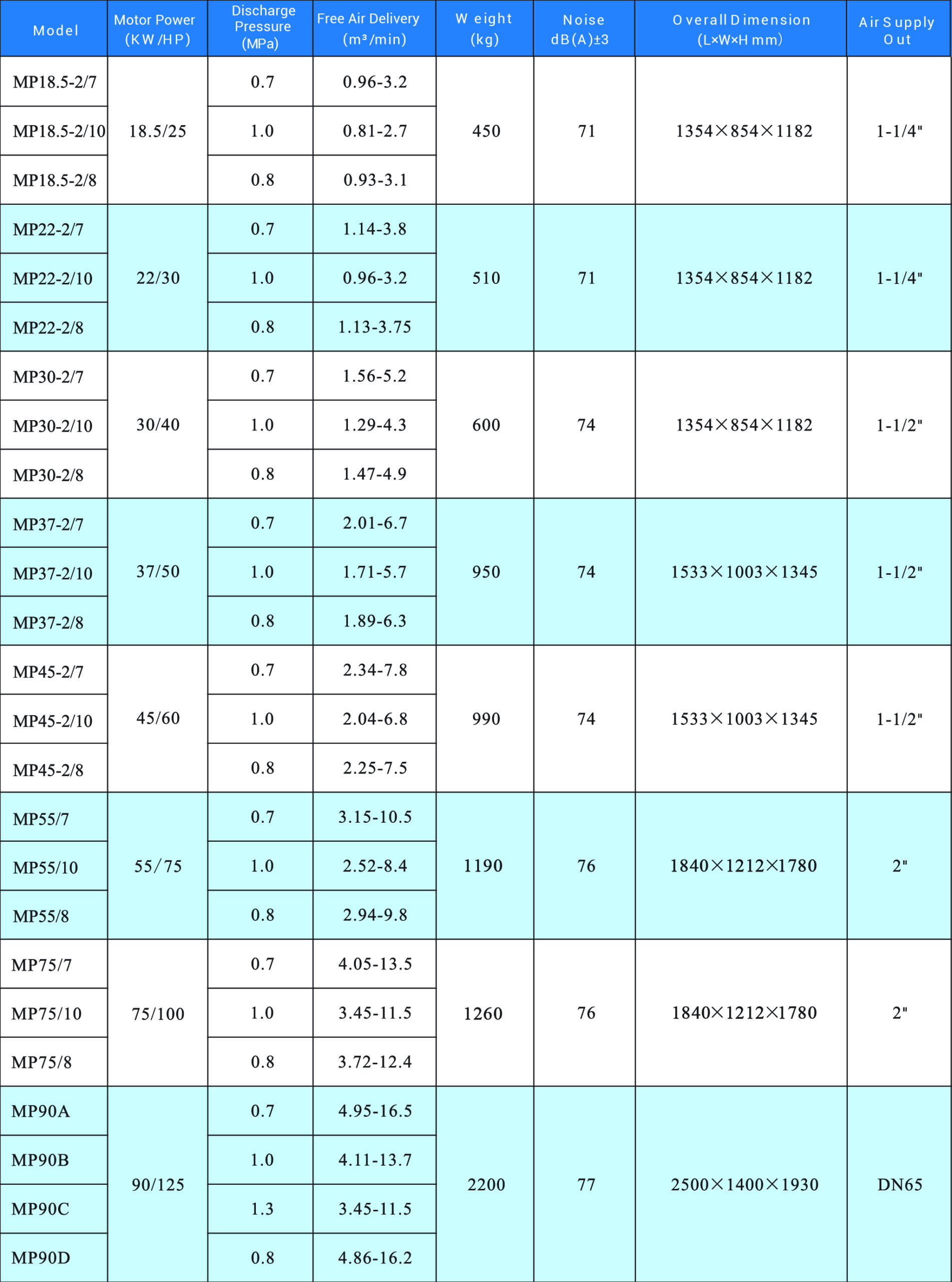

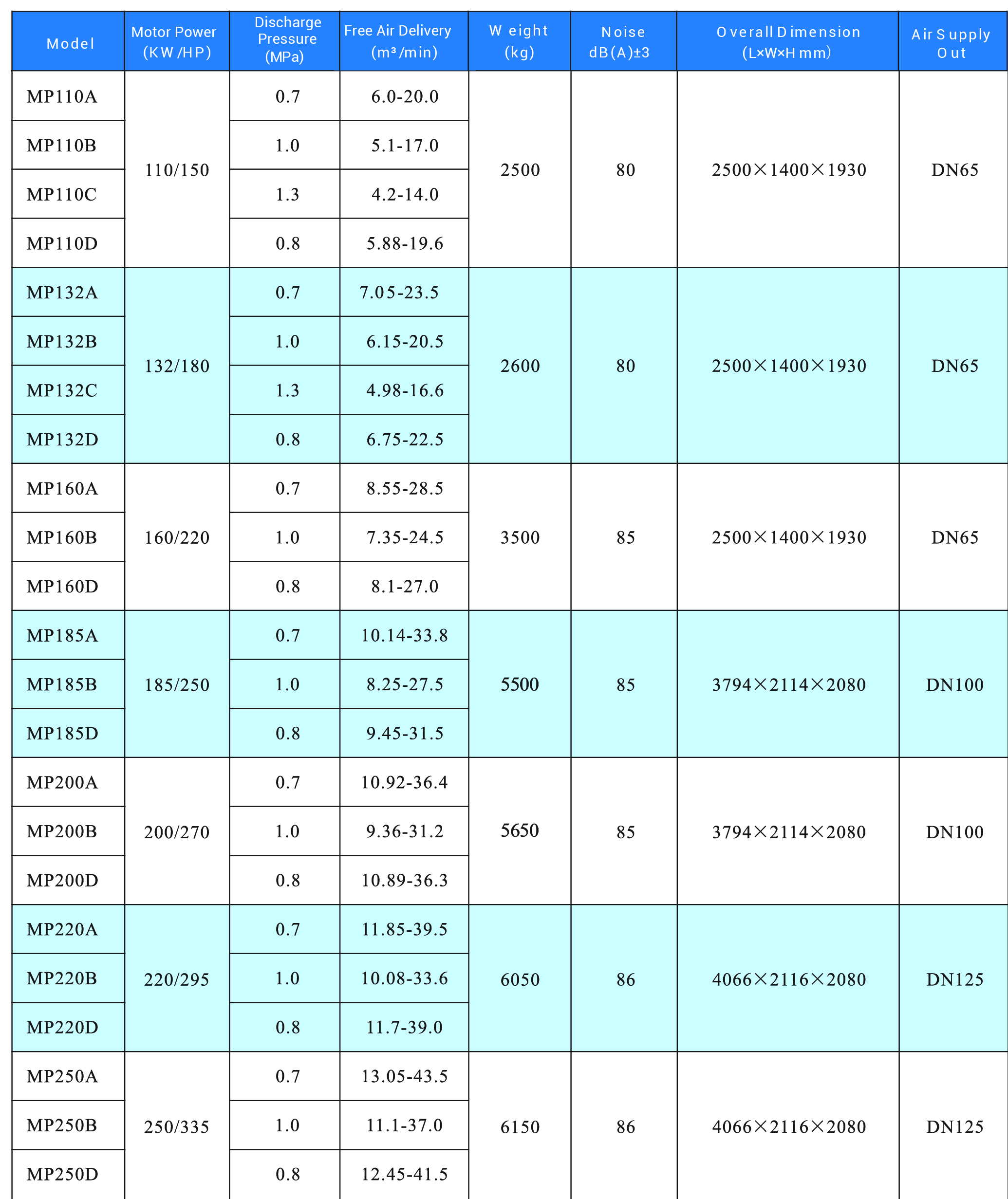

TECHNICAL SPECIFICATION
