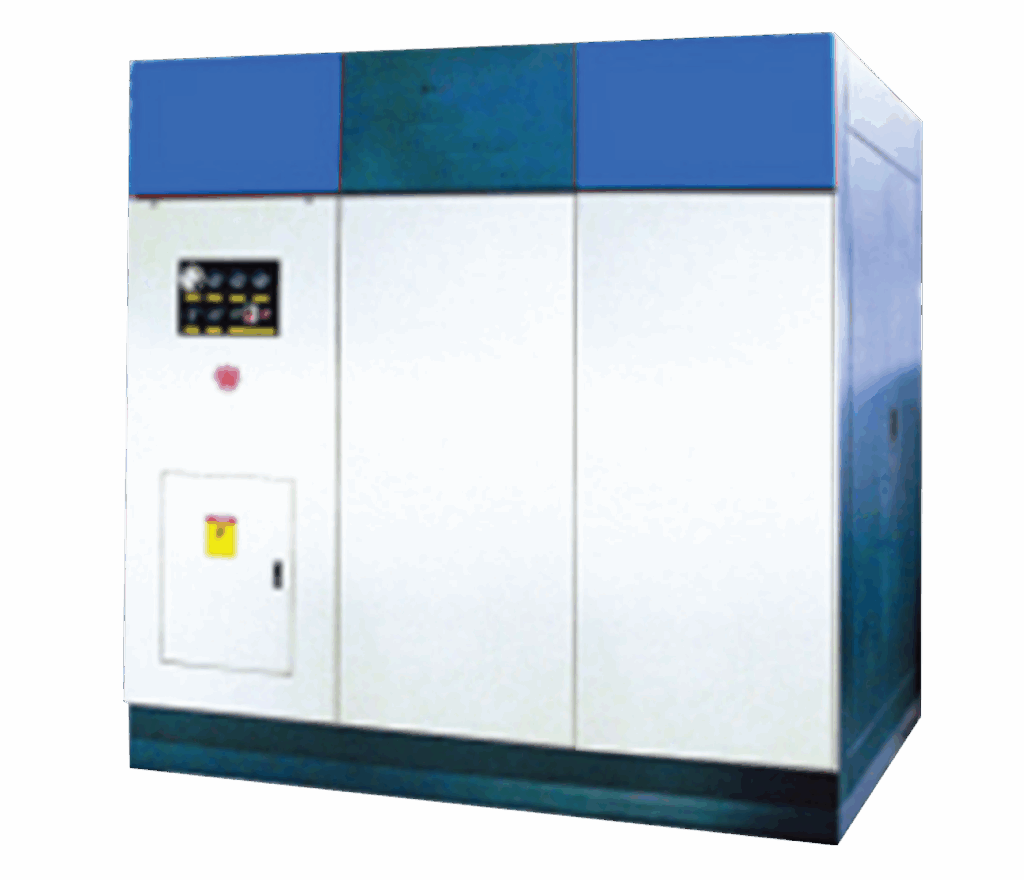

Combine Compressed Air Dryer RSC Series
Rated conditions
Working pressure :
O.7MPag (1OOpsig)
Inlet temp :
38°C (1OO°C)
Ambient temp :
38°C(1OO°C) Cooling type : Water
Refrigerant :
R407C
PDP :
-4O°C
Working Range
Max. Inlet temperature :
45°C (113°C)
Max. Ambient temperature :
45°C (113°C)
Min. Ambient temperature :
5°C (41°C)
Available Option
For pressure > 1.OMPag(145psig), please contact us
Different power supply available
Air cooling type available PDP -2O°C and -7O°C available
Vessel Standard: GB,ASME,PED,etc

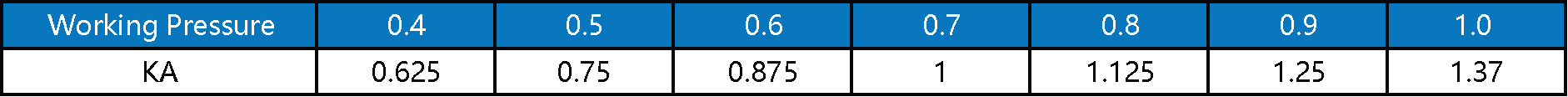

Correction Factors
To obtain dryer capacity at actual conditions, nominal
capacity x KA

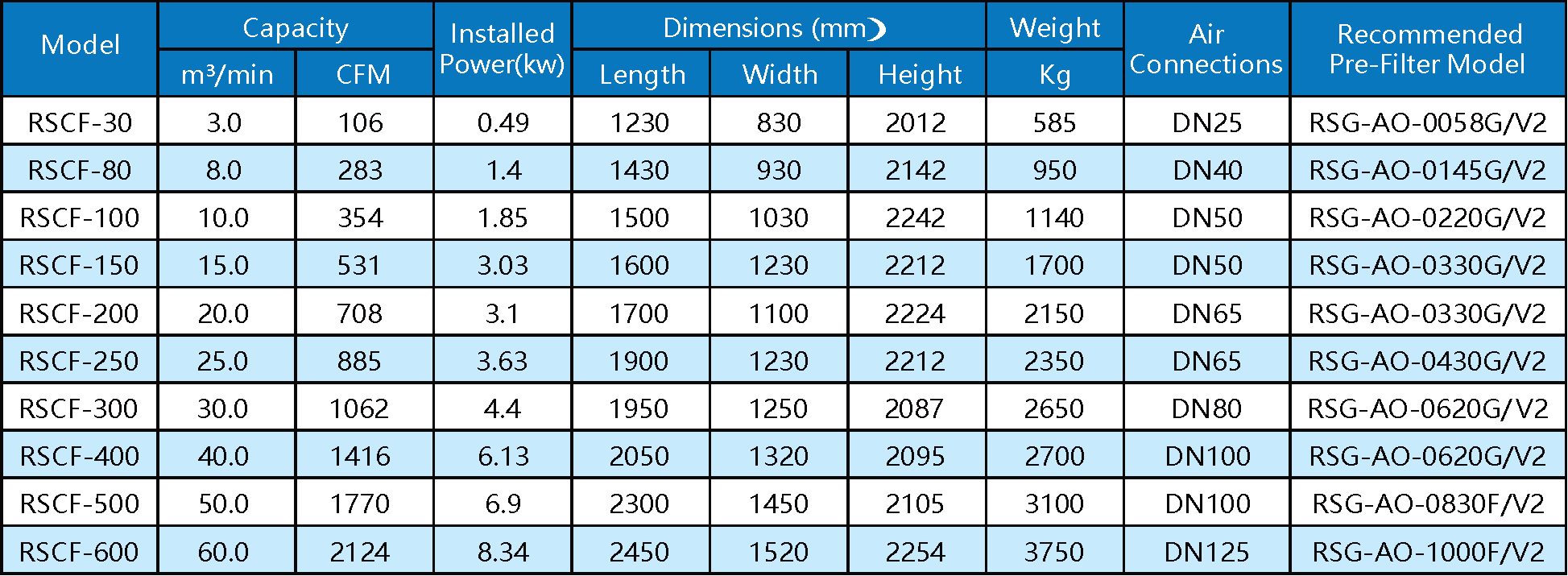

TECHNICAL SPECIFICATION
Technical Data RSC
