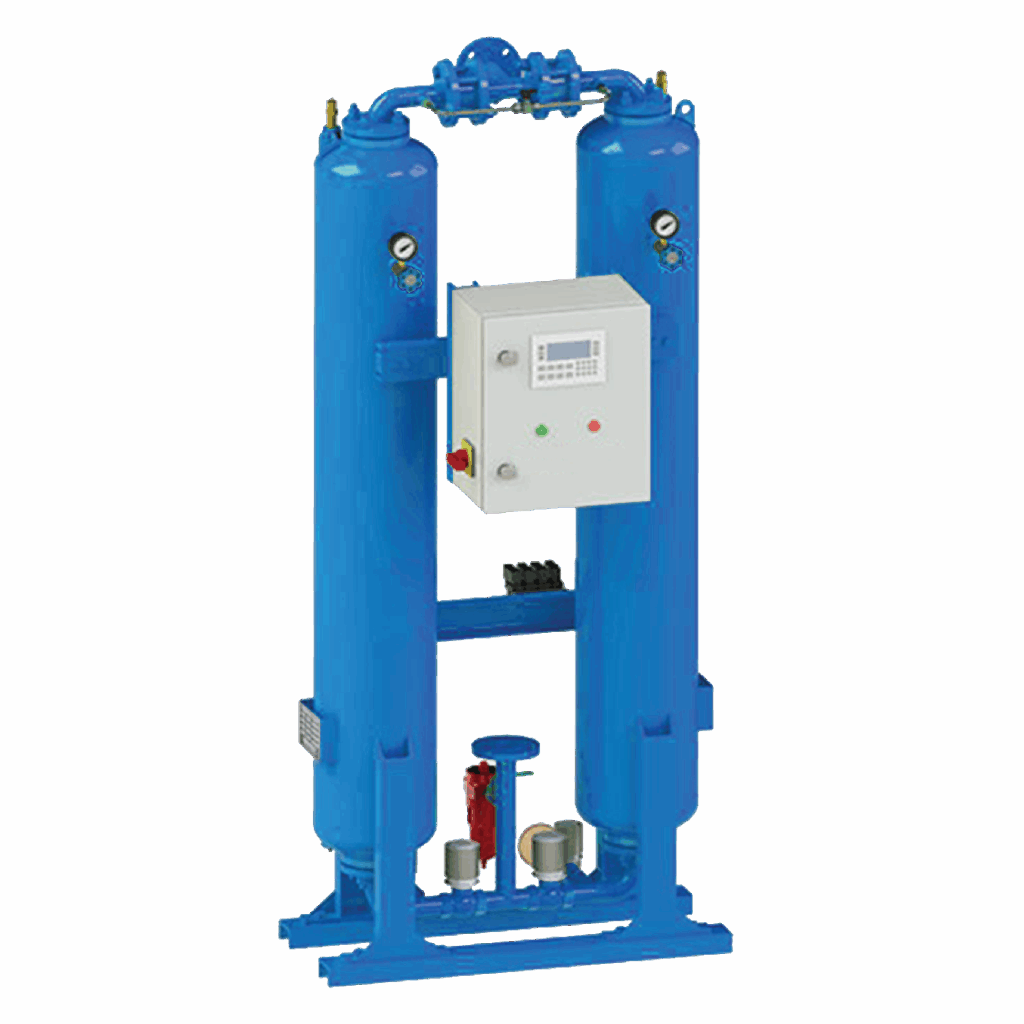

Heated Dessicant Air Dryer RSXJ Series
Rated conditions
Working pressure :
0.7MPag(100psig)
Inlet temp :
38°C (100°C)
Ambient temp : 38°C
(100°C)
PDP :
-40°C
Working Range
Max. Working pressure :1.0MPag(145psig)
Max. Inlet temperature :
50°C (122°C)
Max. Ambient temperature :
45°C (113°C)
Available Option
For pressure > 1.0MPag (145psig) ,please contact us.
Different power supply available
PDP -20°C / -70°C is available
Vessel Standard:GB,ASME,PED,etc.

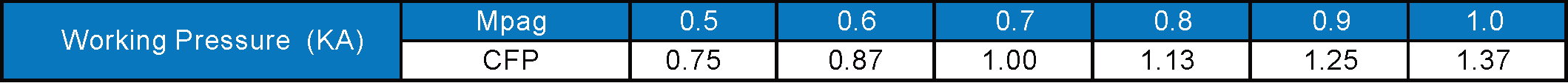

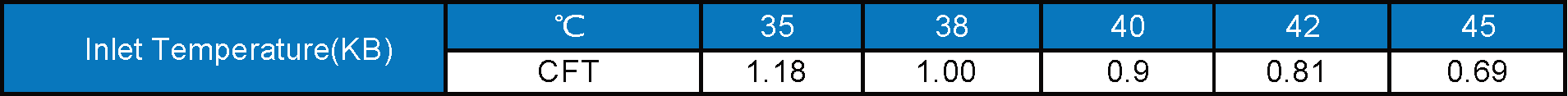

Correction Factors
To obtain dryer capacity at actual conditions, nominal
capacity x KA x KB

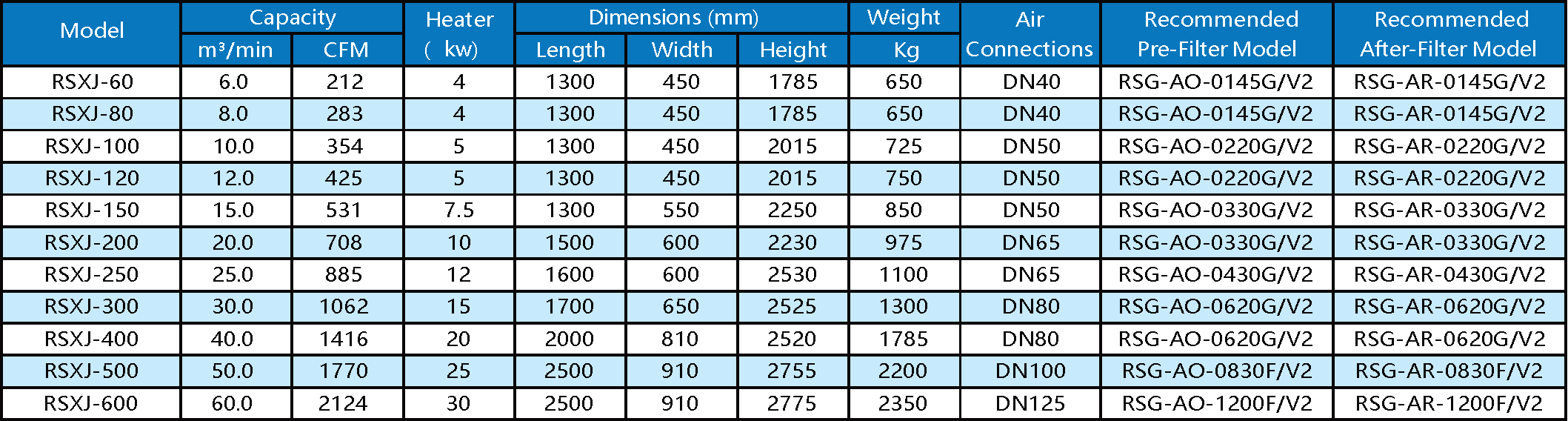

TECHNICAL SPECIFICATION
Technical Data RSXW
