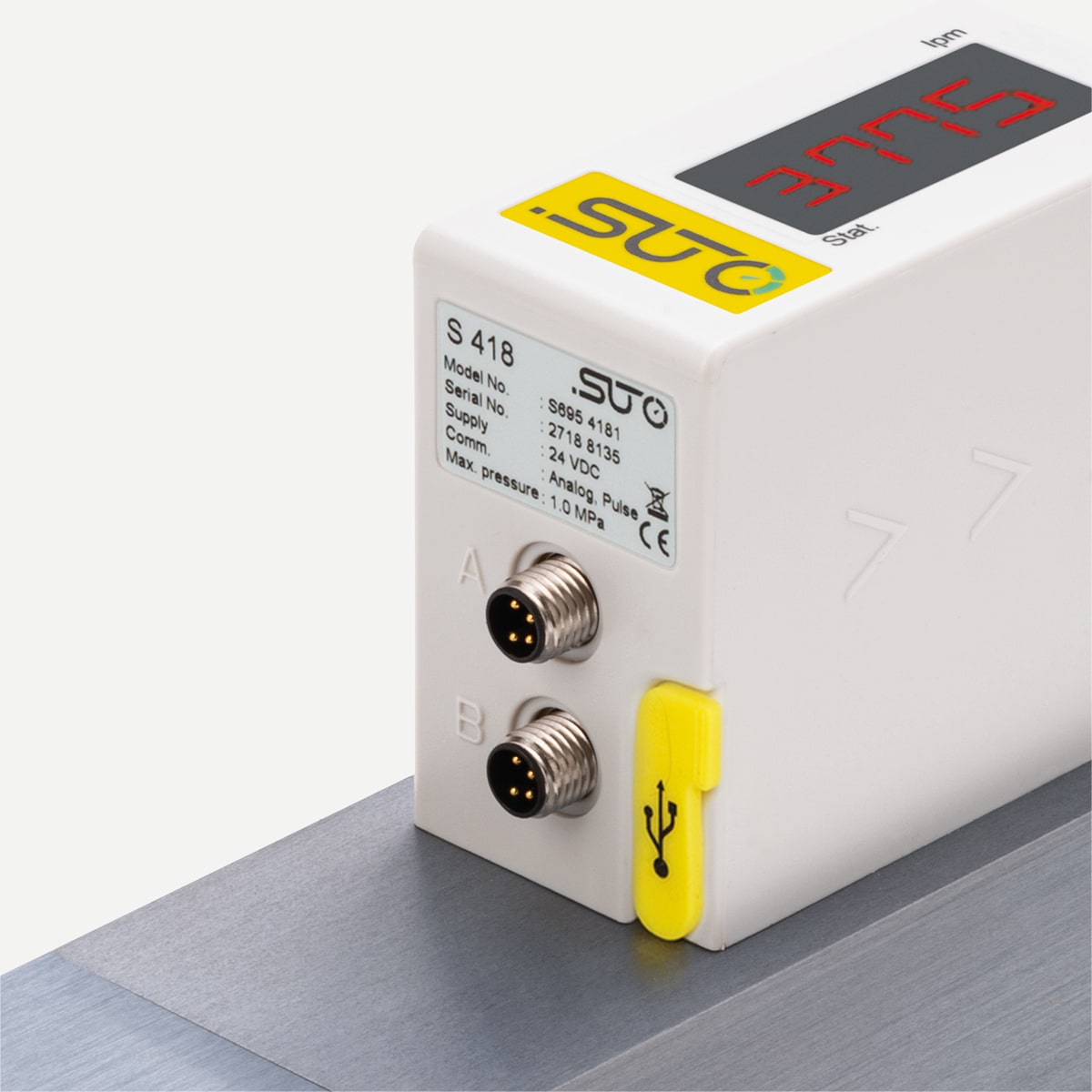

S418 Compact Flow Sensor for Compressed Air and Gases (Pro-Inline)
Compact flow meter provides accurate consumption and cost
monitoring of gas supplies and consumers.
ü Efficient monitoring for compressed air and gases
ü Economic flow and consumption metering at low investments
ü No straight inlet section needed, due to flow conditioner
ü Installation and configuration through smartphone app
ü Integrated data logger for measurement recordings
ü Accuracy of 1.5% o.RDG, measuring volume 100: 1
ü Isolated 4... 20 mA & Pulse; Modbus/ RTU; M-Bus
ü G inner thread connection: DN8, DN15, DN20, DN25, DN32, DN40 or DN50
The S418 Compact Flow Sensor provides compressed air flow
and gas monitoring directly where it is needed. The seamless integration into a
compressed air and gas system makes it an affordable and easy to install flow
measurement solution.
Get Your Compressed Air and Gas Cost Under Control
The S418 helps you to improve your compressed air system
efficiency and get your operating costs under control. By monitoring flow,
consumption, pressure and temperature in one device optimization potential can
be easily detected.

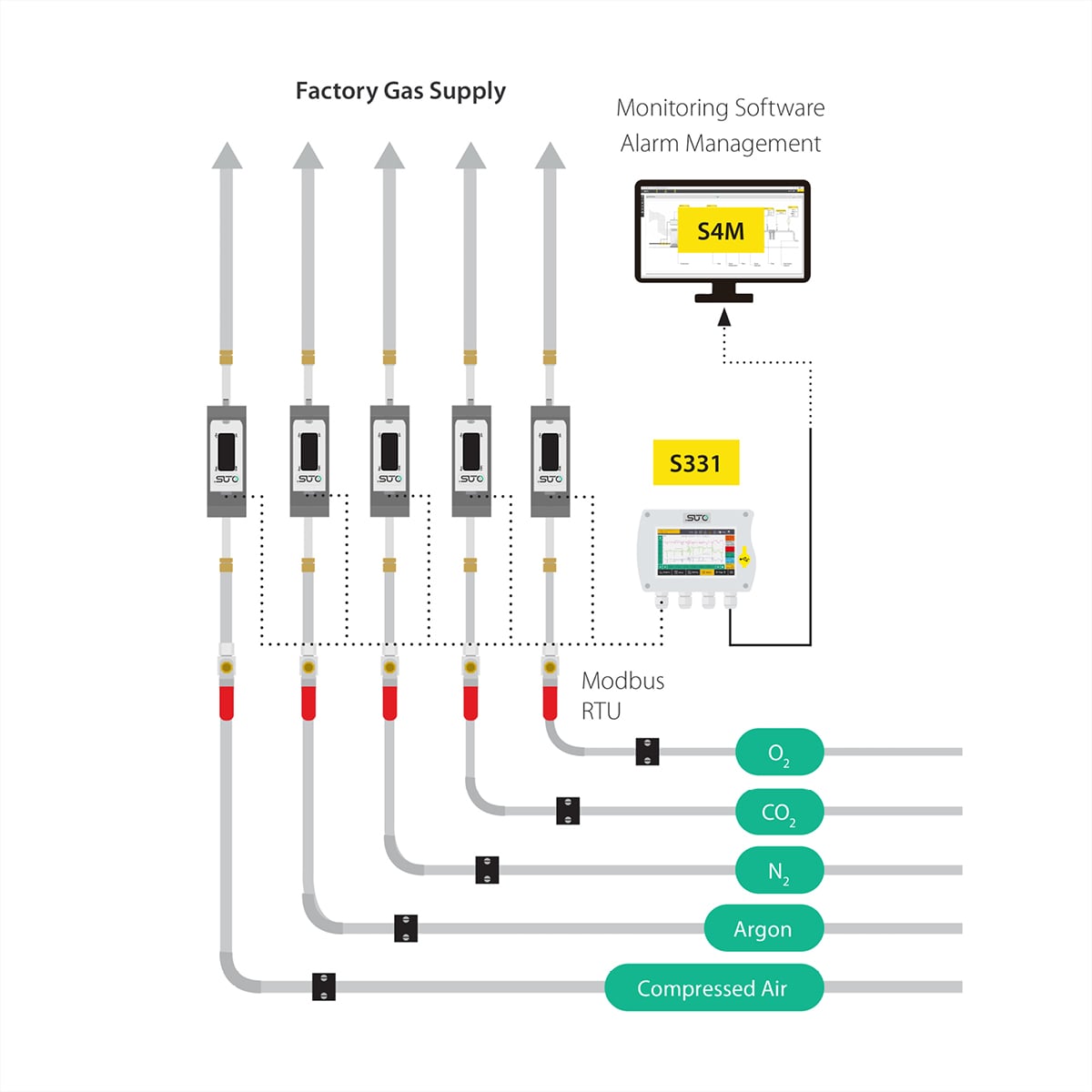

The integrated data logger helps to collect and save your
data, which can be imported into data analysis software via Modbus outputs.
The S418 helps you to improve your compressed air system
efficiency and get your operating costs under control. By monitoring flow,
consumption, pressure and temperature in one device optimization potential can
be easily detected.
The integrated data logger helps to collect and save your data, which can be imported into data analysis software via Modbus outputs.

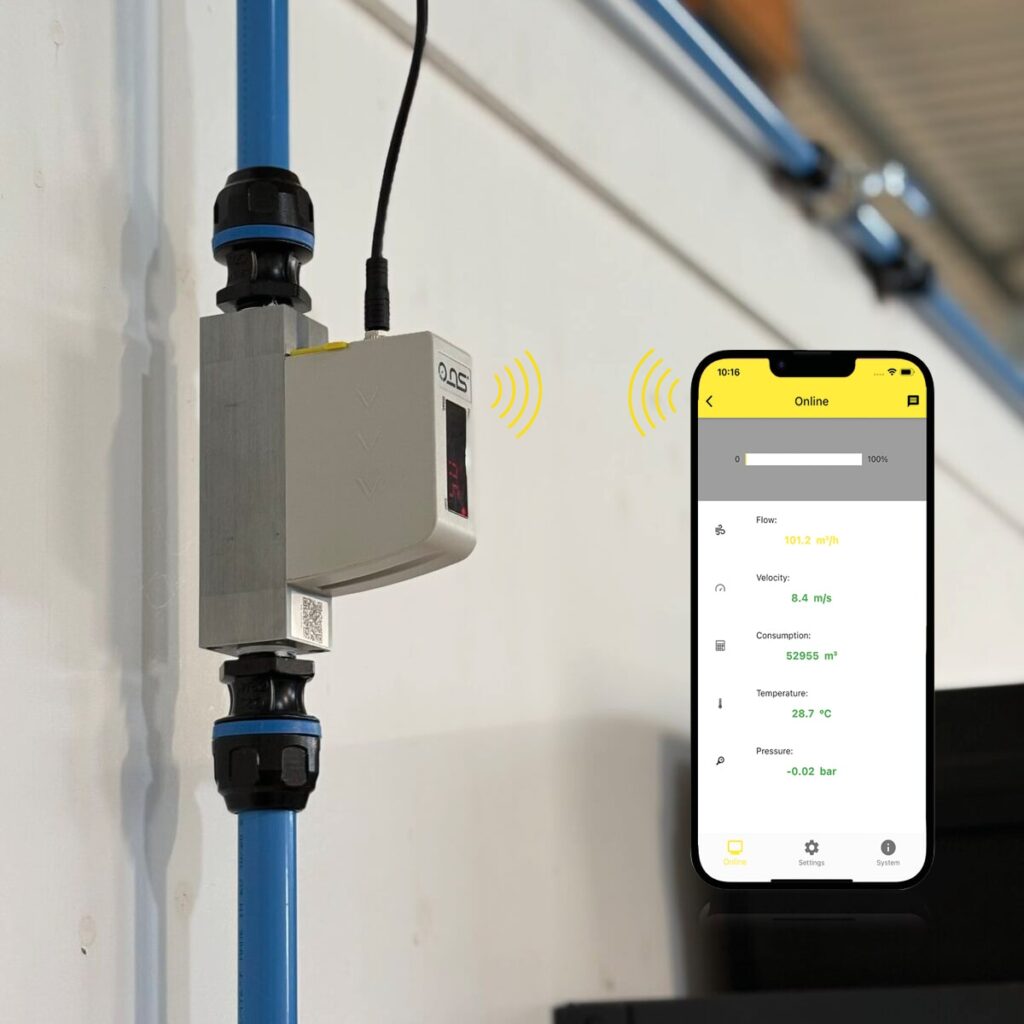

Wireless Communication and Configuration
The S418 Flow Sensor comes standard with wireless
communication interface to quickly and easily check the flow sensor readings.
This can also be used to adjust the settings via the SUTO flow sensor app S4C-FS. Flow sensor configurations and
online real-time data readings have never been easier.
Integrated Flow Conditioner
To ensure accurate readings regardless of the design of the
piping system, the S418 has a built-in flow conditioner. Due to the flow
conditioner design, no straight pipe inlet sections are needed to provide
reliable compressed air and gas flow monitoring.
Thermal Mass Flow Technology
