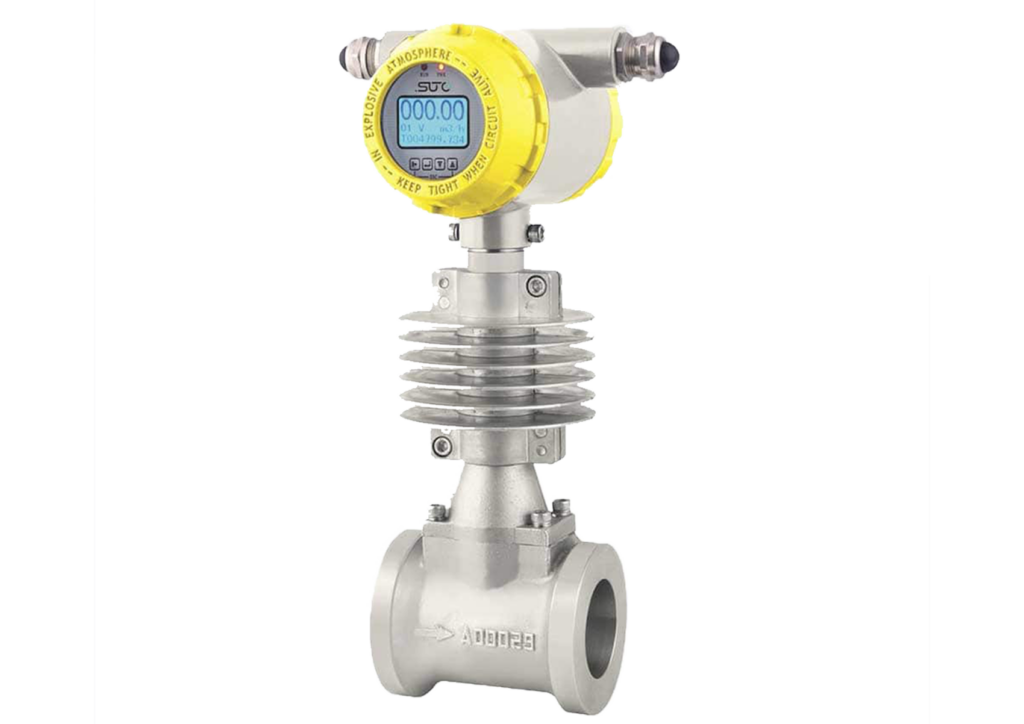

S435 Vortex Flow Meter for Saturated Steam
(Inline-Sensor)
Long-term stable measurement of mass flow and consumption in saturated steam with automatic density compensation.
ü Cost-efficient sensor solution for steam monitoring

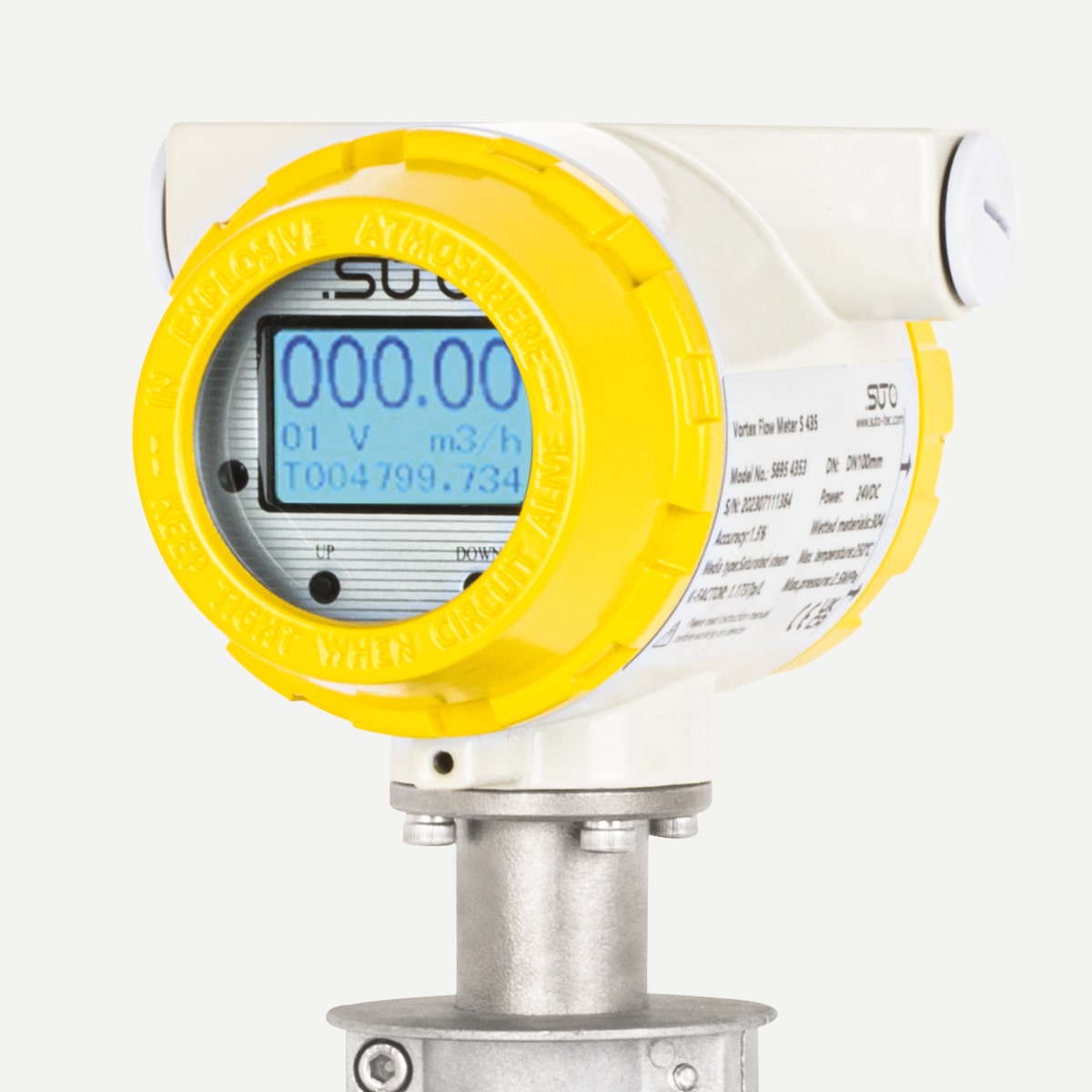

ü Local display for easy configuration and live values
ü Temperature sensor with automatic density adjustment
ü Robust industrial design with high-protection level
ü Signal Outputs: 4 ... 20 mA; Pulse; Modbus/RTU

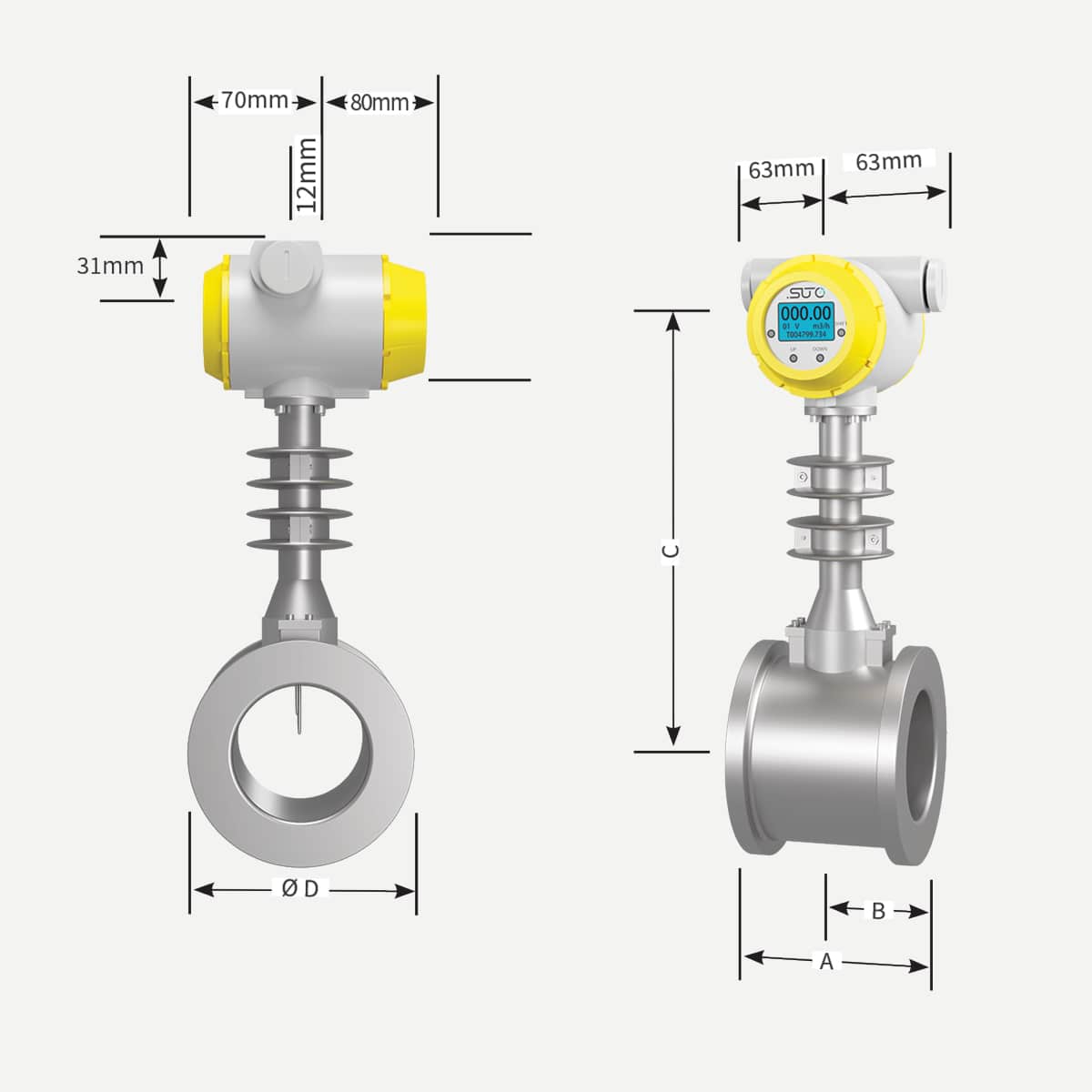

ü Easy installation for pipe sizes of DN40 ... DN300
The S435 vortex flowmeter is the ideal choice for measuring steam due to its rugged construction, absence of moving parts and high temperature/pressure resistance.
The S435 vortex flowmeter measures flow and consumption in saturated steam with automatic density compensation. This guarantees continuously accurate results. Parameter settings can be made directly on the flow meter via the user interface (keys and display). The Modbus/RTU interface or the analog output allow the S435 to be connected to a SCADA system.
ü Measures saturated steam consumption
