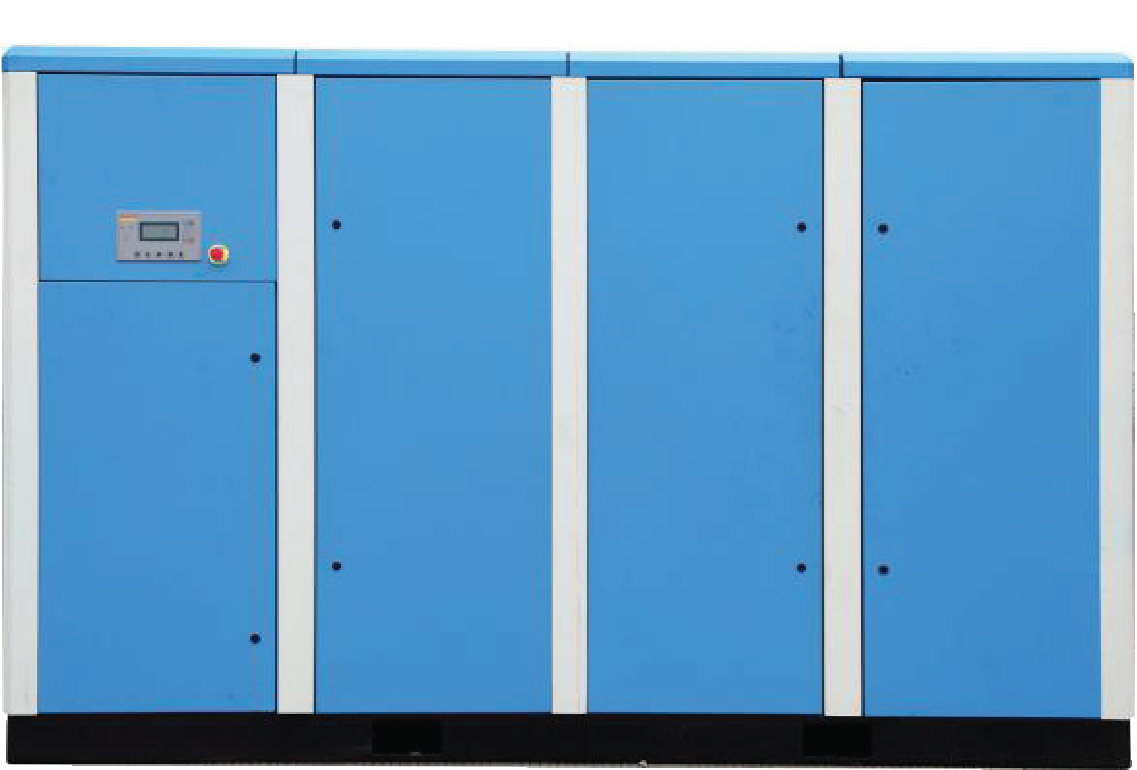

Air Cooled Stationary Screw Air Compressor
Screw SF Series
We offer more sustainable, Class 0-certified , fully oil-free air solutions for the food, beverage, chemical and electronics industries.
·
Air Cooled
·
Twin Screw Single Stage Air End — August-
Brand
·
5 Year Rotor Warranty
·
45,000-50,000 Working Hours Engineered
Lifetime
·
Energy Saving Micro Control System, Fully
Automated Operation
·
Easy Maintenance
·
Low-noise Operation, Closed Cabinet
Structure,
·
Noise Reducing Dumping Mats Made Of Fire Retardant Materials
·
Belt Drive, Direct Coupling, Gear Drive
· Efficient, Safe and Reliable Fully Enclose Motor Drive (ipS4, F Class / IPSS Optional)

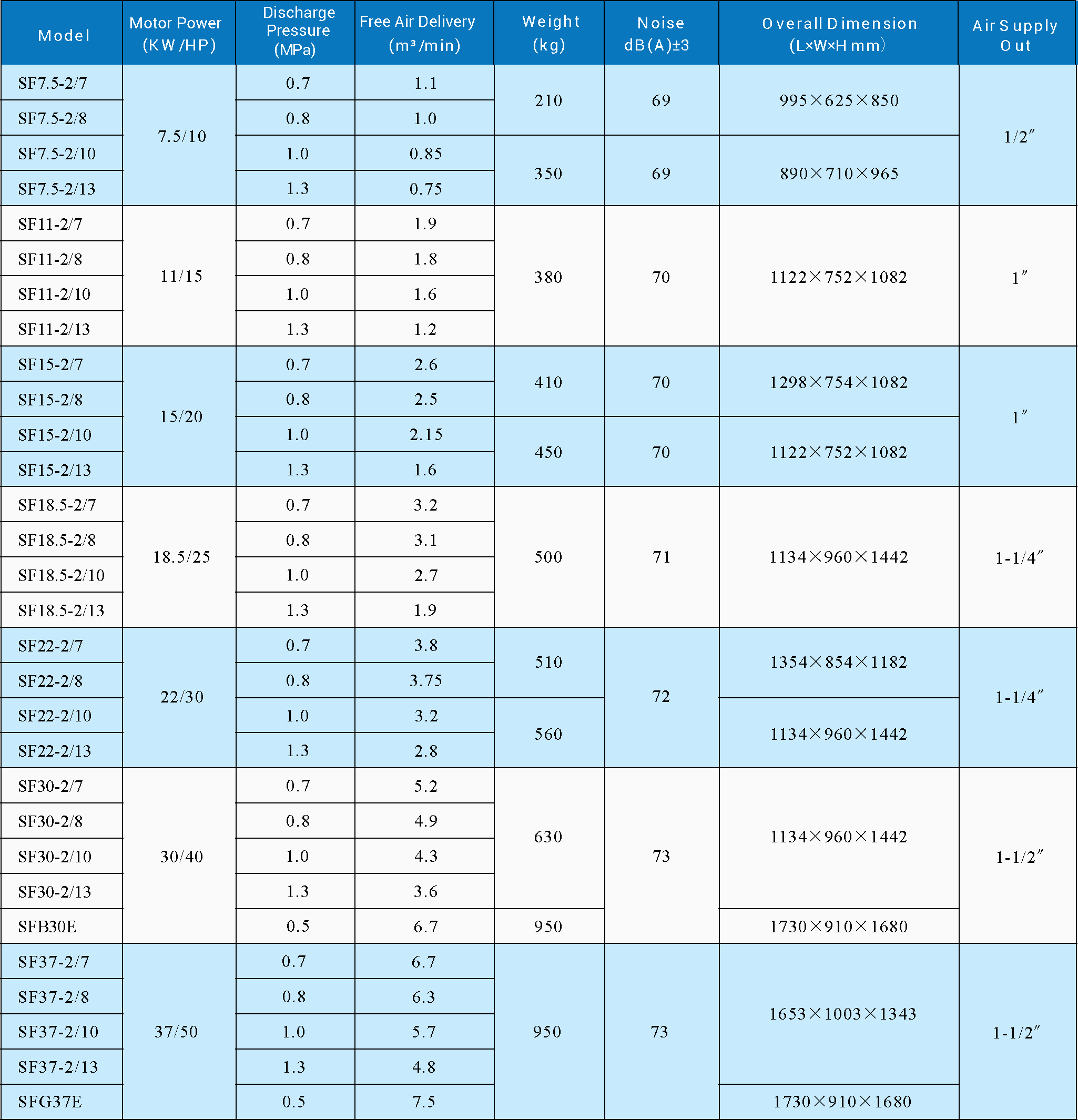

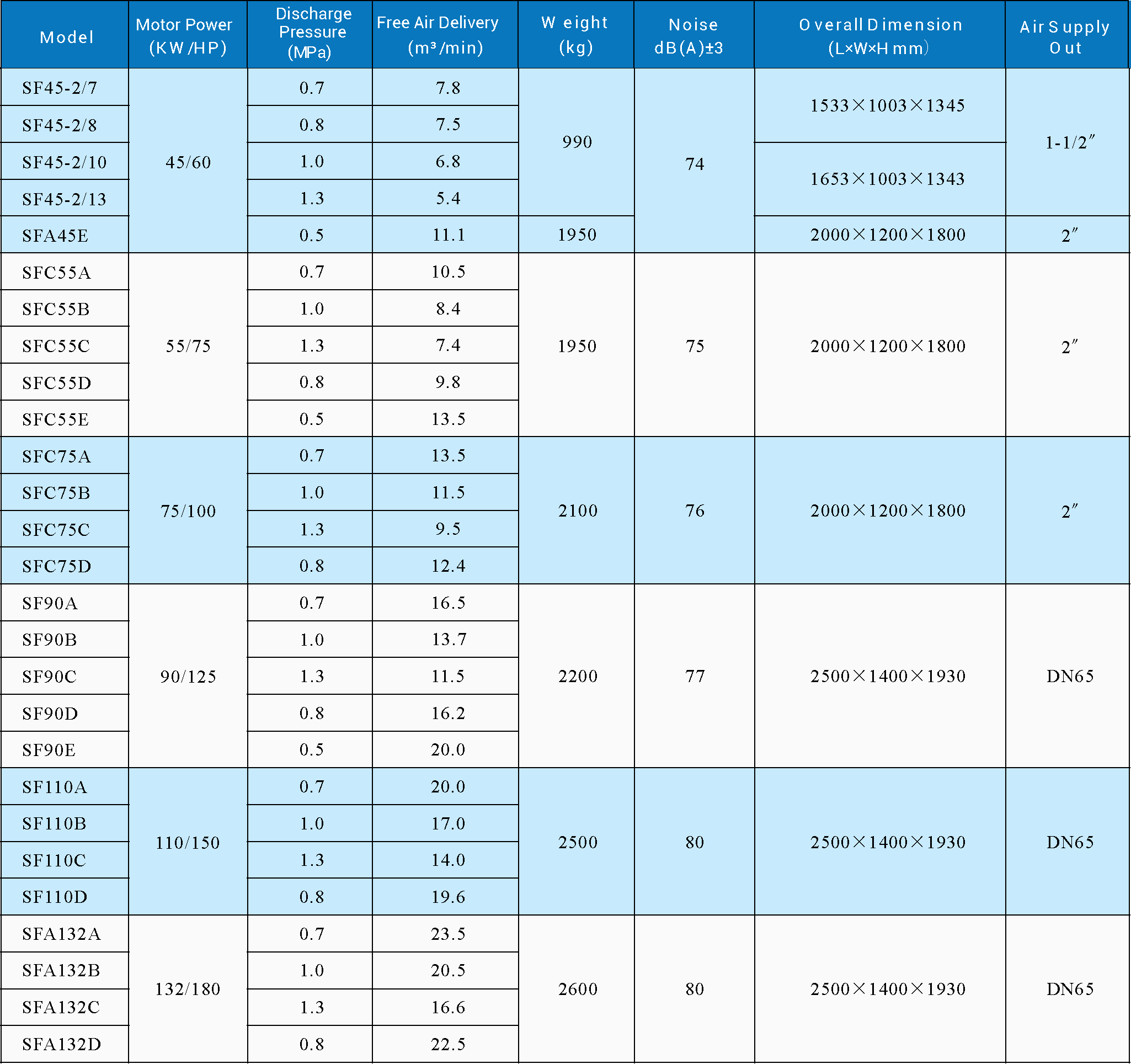

TECHNICAL SPECIFICATION
AIR FLOW
1m³/Min = 35.31467 CFM , 1 CFM=0.02832m³/Min
1m³/H = 0.01667 m³/Min, 1CFM=1.69901 m³/H
VOLUME PRESSURE
1m³ =1000 L,1L=0.001 m³ 1 KW=1.34102 HP
1m³ = 264.172 GAL(US) 1 HP (BHP)=7.7457 KW 1 GAL(US)=0.0037854 m³ 1 HP (USHP )=7.735 KW
PRESSURE
1 Mpa=10 bar
1 bar=0.1 Mpa
1 bar=14.504 psi
1 psi=0.068948 bar
NOTE :
1. SF is air-cooled series and SW is water-cooled series SF-T is air-cooled variable frequency and SW-T
2. is water-cooled frequency and SF-Y is portable series
3. In addition to the table listed, can also provide other specifications model products.
4. Under Air supply outlet 2”(including 2”) is thread, above 2-1/2” (including 2-1/2”) is flange.
5. The above model is our standard model, the parameters are subject to change without notice, special
6. exhaust pressure as required to receive orders.
