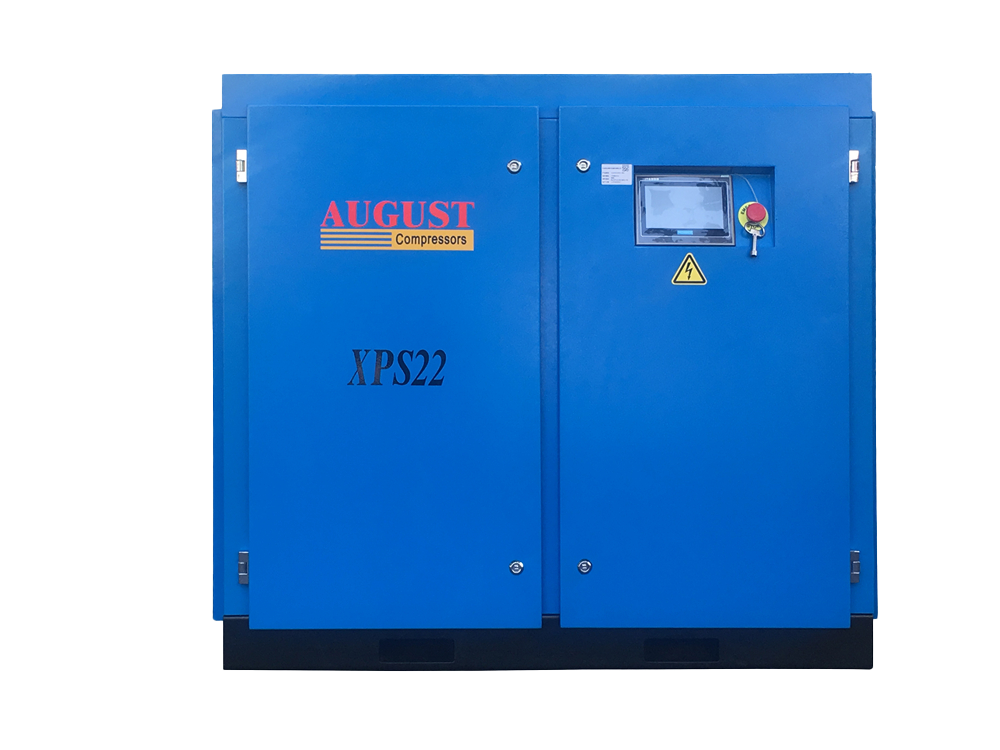

Permanent Magnet VSD XPS / EPS Series

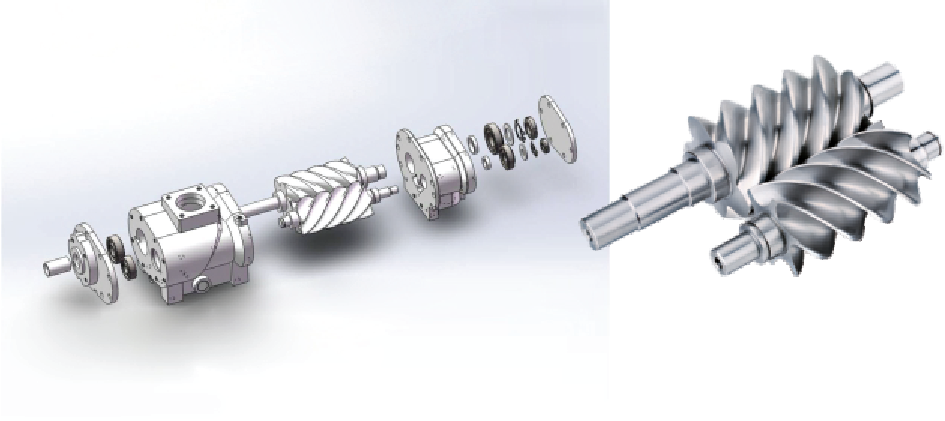

New Generation Efficiency Air End
Self-developed tooth shape, large diameter rotor, low speed, long life High precision rotor grinder and three coordinate measuring instrument to ensure the precision machining of the air endFinite element analysis of reliable key parts to optimize the quality of each part

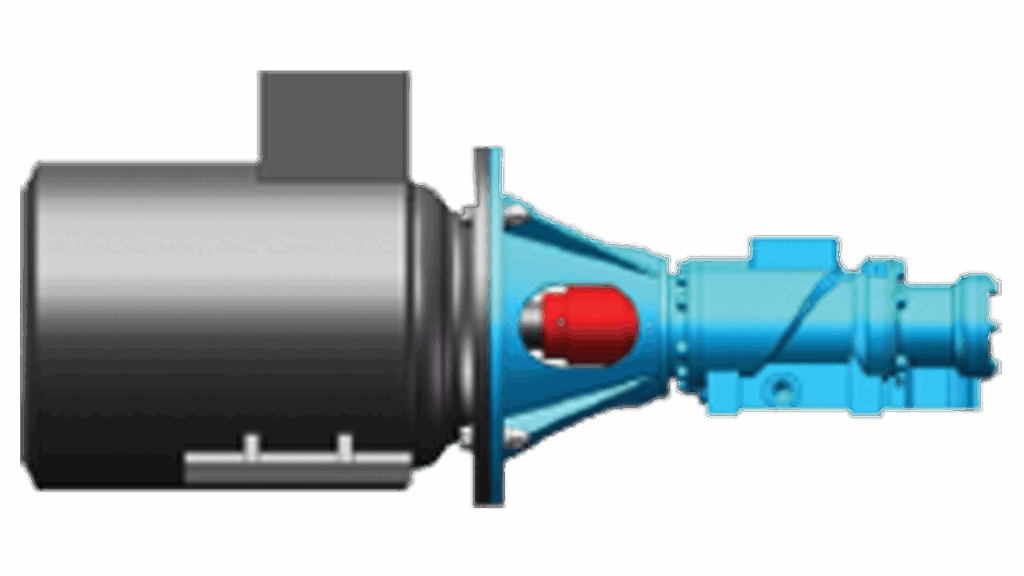

Flexible Coupling Drive
Direct display: discharge temperature, discharge pressure, operating frequency, current, power, operating state. Realtime monitoring of discharge temperature, discharge pressure, current, frequency fluctuations. The Internet of things module is optional, the intelligent management system of cloud terminal, The operation status can be mastered in real time through mobile terminal, can achieve remote start and stop, remote online monitoring functions.

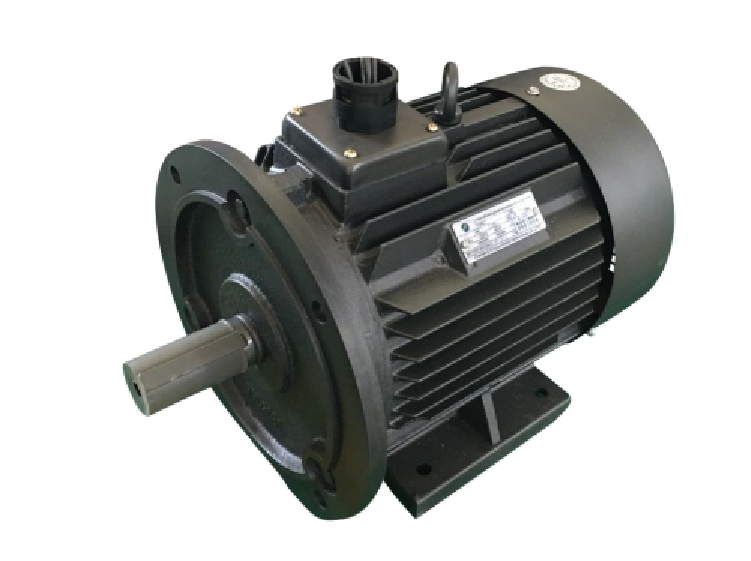

Safe, Reliable And Efficient Motor
Protection grade IP55, insulation grade F, suitable for bad working conditions. Without gear box design, the motor is directly connected with the male rotor of the air end , High transmission efficiency. High balance precision, high speed running smoothly
The Overall Design Structure Is Simple And Compact
Products are reliable, stable, cost-effective, less quick-wear part, low maintenance costs, overall appearance beautifu

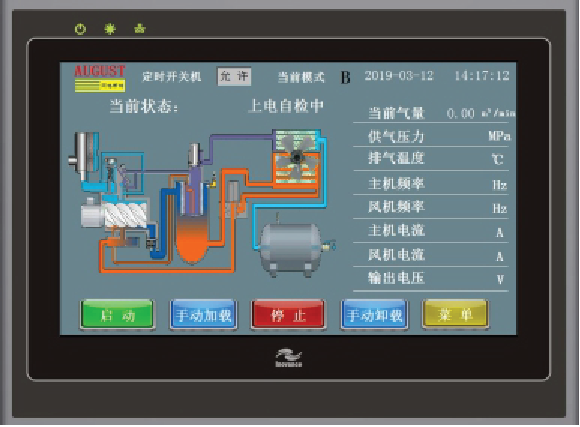

Intelligent Microcomputer Control System
Operation interface is simple, English and Chinese switch , Fully automatic operation,easy to operation
Integrated maintenance reminder, fault diagnosis to achieve unattended operation Computer remote monitoring, start - stop and multi - air compressor linked control
TECHNICAL SPECIFICATION

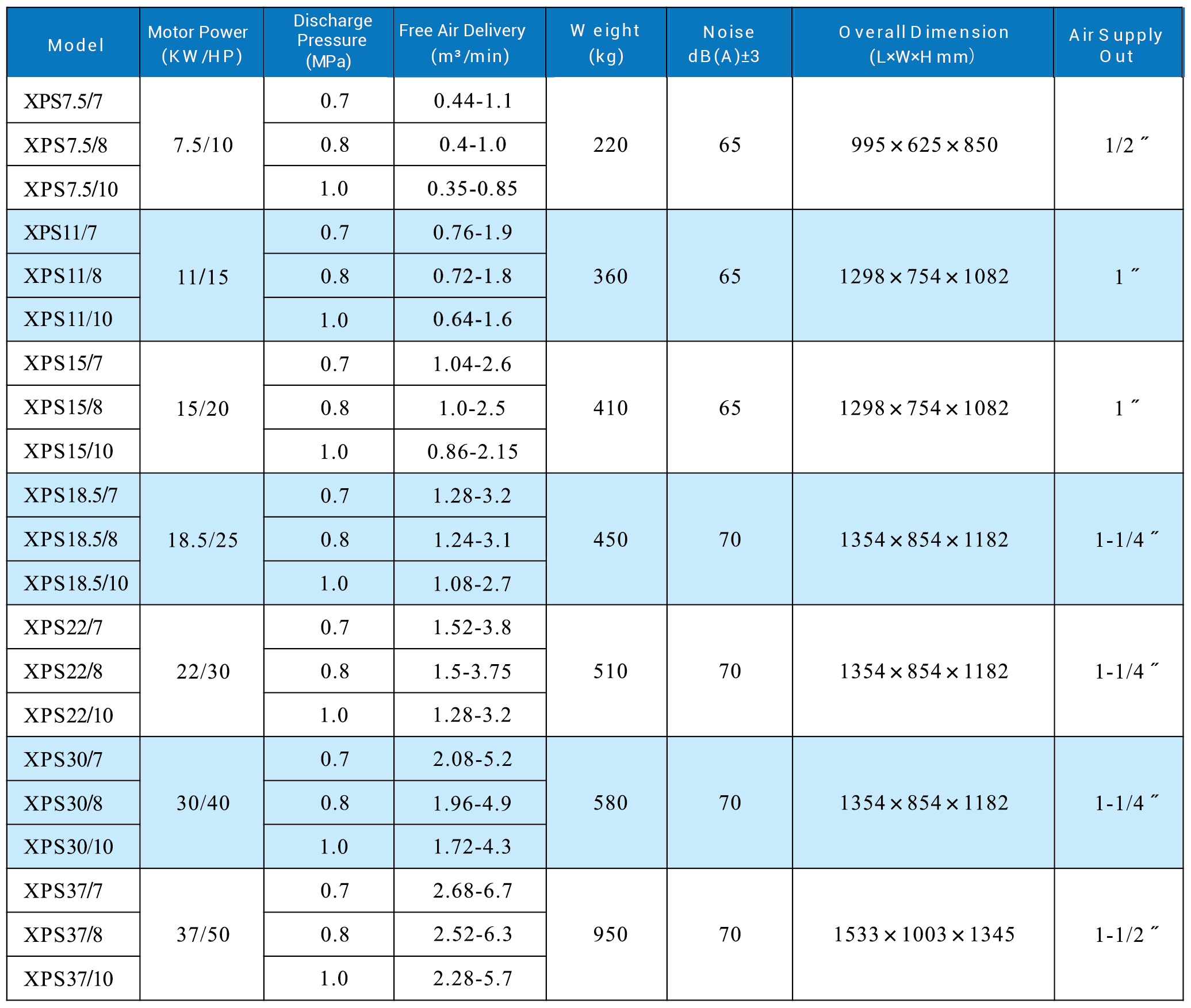

XPS Series Spesification

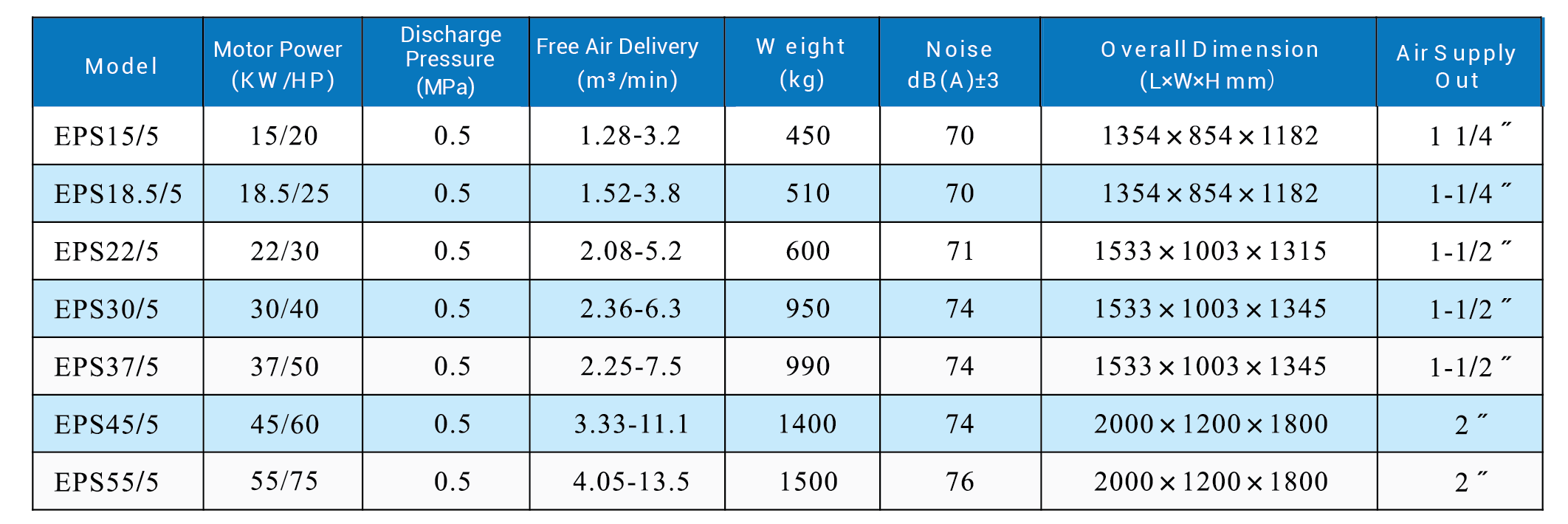

EPS Series Spesification
