Your Trust, Our Satisfaction

We understand that our customers work in a highly competitive market where equipment down-time can be costly. For. this reason, our dedicated Spare Parts Team will make sure your replacement parts are delivered as quickly as possible.

Compy

Air Dryer-02

096d7ee7-ecbb-4bac-bdae-ed92e492a2fb

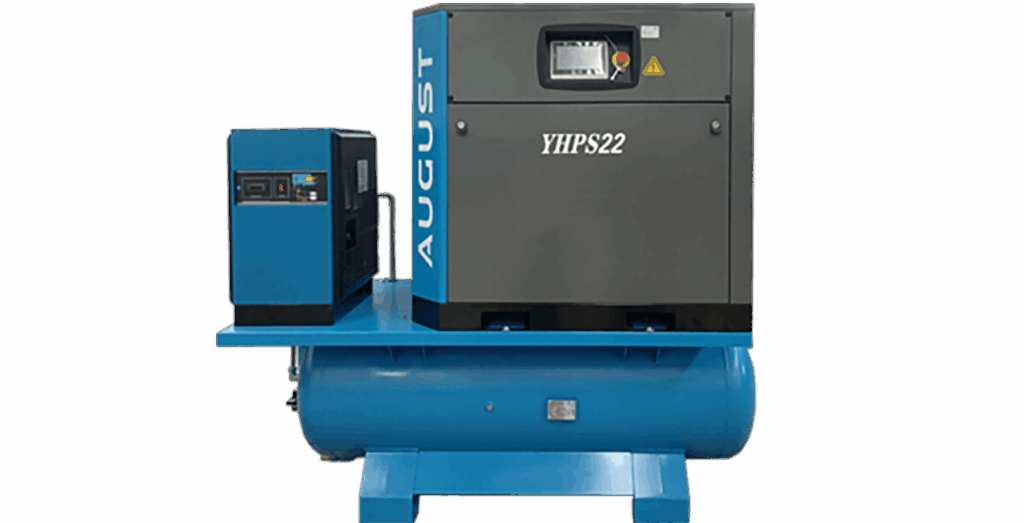

Special For Laser Cut YHPS Series

·     Air compressor, storage tank, air dryer , precision filter integrated in one , 5 levels of precision filtration (air-water separator +P class +M class +S class +H class), efficient water removal, dust removal and oil removal, to ensure the stable operation of laser machine;

·     High efficiency and energy saving aluminum alloy three-in-one heat exchange air dryer,multi intelligent monitoring of temperature and pressure, R134A environmental refrigerant, standard anti-freezing constant pressure expansion valve;

·     Simple installation, convenient, save space.

16 bar high pressure air end Air End

· Germany imported Klingelnberg rotor grinding machine 0.01mm grade grinding process,to ensure the processing accuracy of the
screw;
· High efficiency SKF/NSK imported 6 pcs bearings,bearing design life 50, 000 hours;
· The air end and motor are directly connected by the coupling, which has high transmission efficiency; Split type design, easy maintenance.

Special temperature control valve, high pressure separator element

·     Standard high pressure, high temperature type temperature control valve, to prevent oil emulsification;

·     2, 16 bar high pressure type separator element, 2 times the processing

·     capacity design, compressed air oil content＜2ppm.

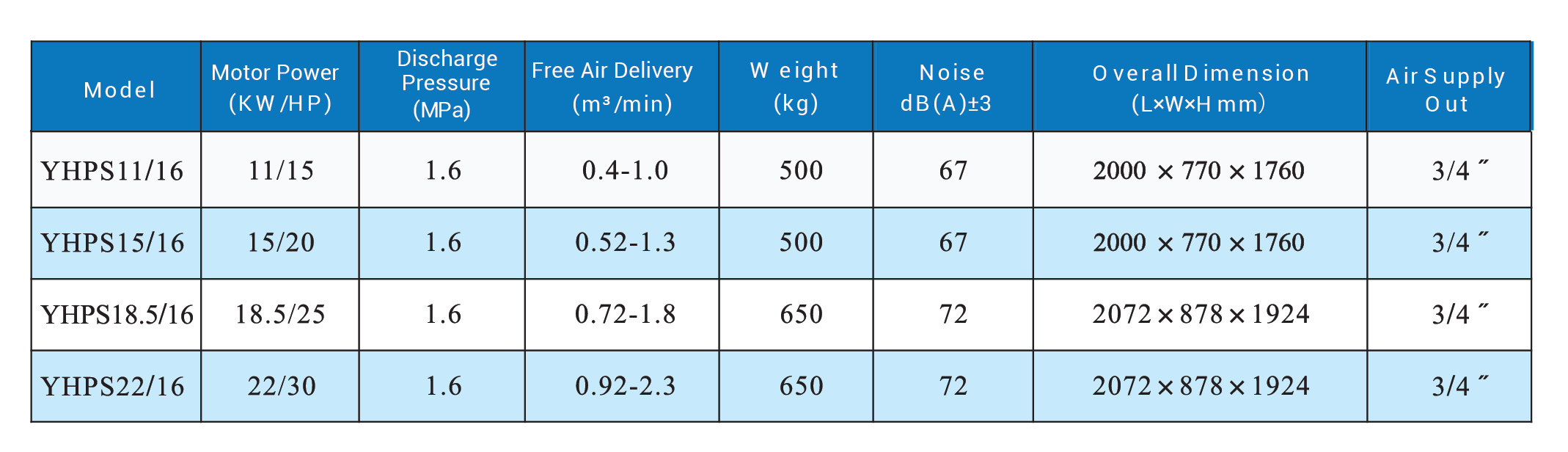

TECHNICAL SPECIFICATION

YHPS Series Spesification

Untitled-2 [Recovered]-01

NOTE

1. 11kw/15kw air tank capacity is 400L
2. 18.5kw/22kw air tank capacity is 500L
