Water Lubrication Series
Reduce Industrial Waste -Indirectly Reduce Environmental
Burden
No oil and no waste oil is required.
Oil-free filter and oil separate, reducing industrial waste
and reducing pressure loss.
The condensate contains no oil and requires no special
treatment
High precisionproduces high reliability

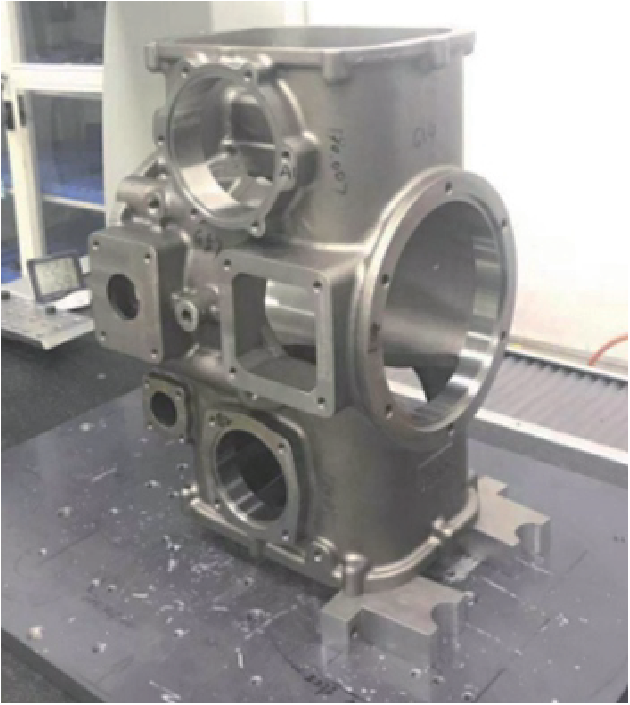

As a manufacturer of precision machining centers, BESTRAND
is known for its high-precisionmachining technology, ensuring the precision and
stability of its main components.
Reduce Industrial Waste -Indirectly Reduce Environmental
Burden
No oil and no waste oil is required.
Oil-free filter and oil separate, reducing industrial waste
and reducing pressure loss.
The condensate contains no oil and requires no special
treatment

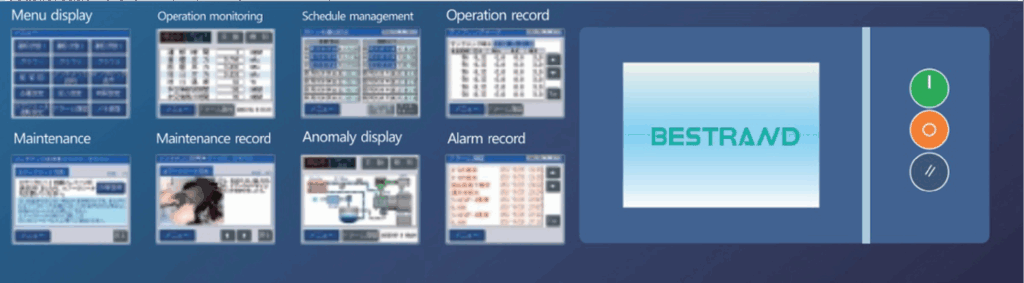

7 Inch Multi-function LCD Touch Screen Panel
Extensive Information For the Operation And Maintenance of
Realistic Air Compressors

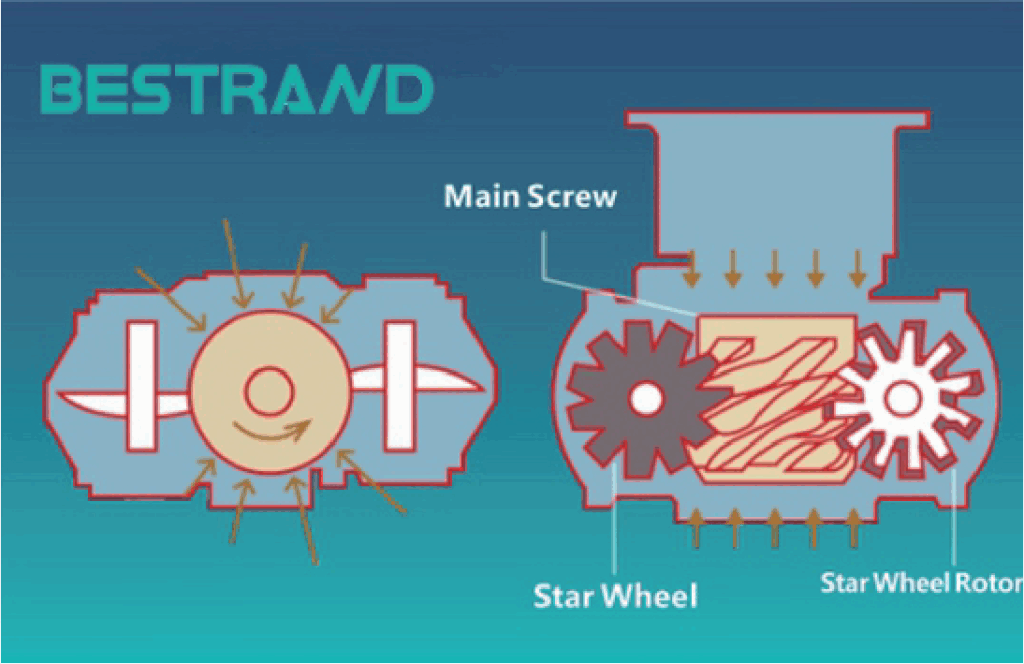

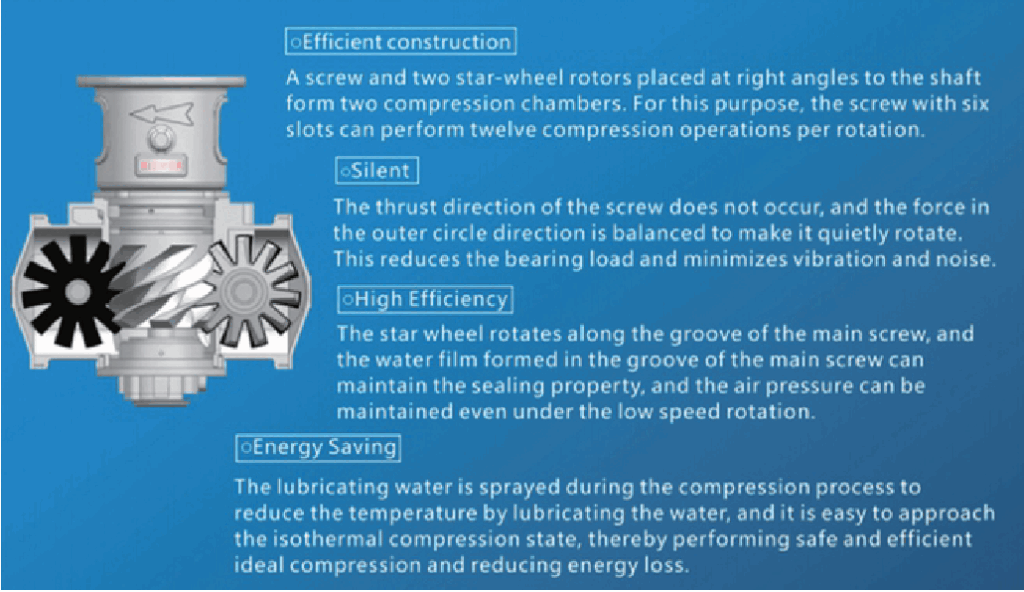

Ideal Compression Structure
Use a Lubricating Water Film Seal to Create a Higher Air Flow
The radial and axial forces generated by the gas pressure are automatically balanced, the bearing life is long, the force balance is good, the vibration is small, and the noise is small. Because of the lubrication water sealing elect, the specified pressure can be maintained at low speed, energy saving and high efficiency The host discharges compressed air at a low temperature(about 60° C), reducing energy consumption and cooling

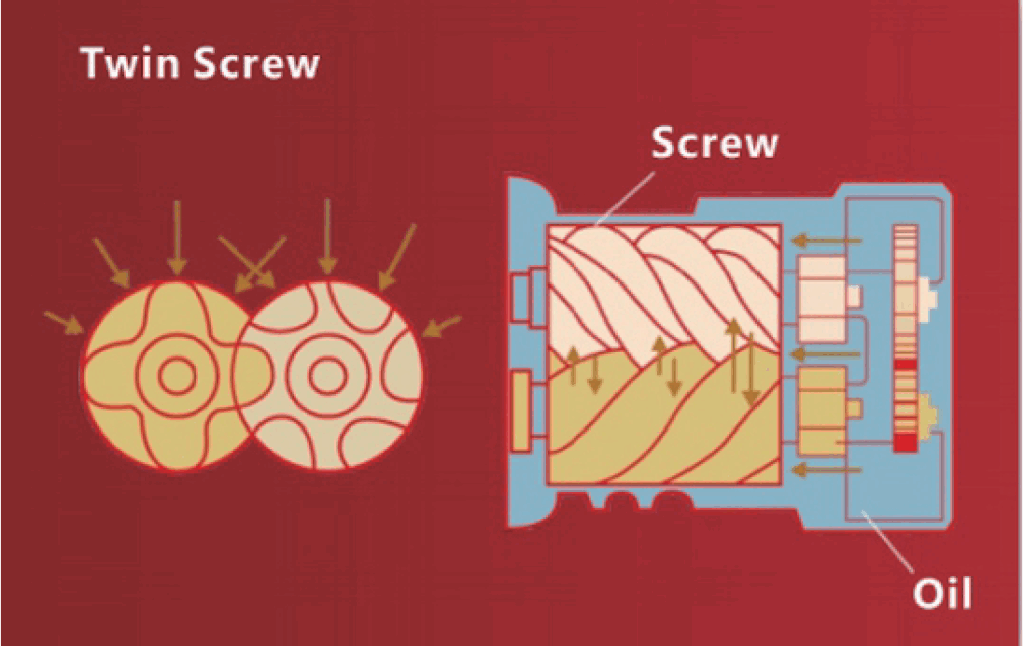

Theradialforcegenerated by thegas pressure cannotbebalanced, the axialforcen eedstobe balanced by the piston, therotorloadislarge, the bearing lifeisshort, and then oiseis large.. Thed oubles pindlem ustensure high speed state to ensure the specified pressure and highenergy consumption.. The hostexhaust gas temperature is high (about 200°C), itneedstwo cooling and cooling, and the energy consumptionislarge.
Simple Is Beautiful
Oil. free Water-lubricated Screw Air Compressor, No
ExtraMaintenance Costs
Dry twin-screw oil-fiee air compressor usually needs
two-stage compression to achieve the specified pressureand gas volume. n terms
of'structure, the twin-screw structure is complex and there are many parts,
which meansthat the later maintenance cost will be higher than single screw oil
free water lubrication machine.

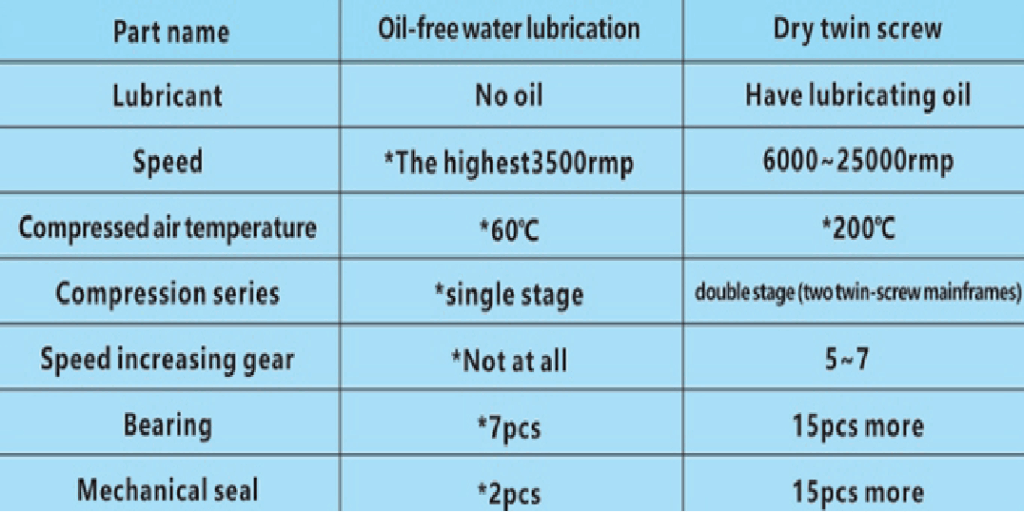

Comparison of water-lubricated single-screwoil-fiee main
engine and dry twin-screw oil-fireemain engine parts
The Cleanest Compressed Air, The Most Stringent Standard
IS08573-1 CLASSO
Only BESTRAND water lubrication guarantees 100% oil-firee
GMP food-pharmaceutical industry grade oil-free water-lubricated air
compressor, the whole series of the main engine has obtained the world-class
laboratory TUV German Rhine certification certificate, in line with
IS08573-1CLASSOhighest air quality Standards, in industries that require high
clean compressed air, such as pharmaceuticals, food, beverages, precision
electronics, biotechnology, chemicals, petrochemicals, electricity, etc., to
provide you with the safest and simpler compressed air, avoiding the production
of oil-contaminatedproducts in the air, resulting in Loss of money and
corporate reputation.
Generally, the oil-firee dry twin-screw can reach the
IOS8573-1 CLASSO grade, but because of the need to use the speed-increasing
gear, the gearbox oil has the possibility of leaking, which causes the risk of

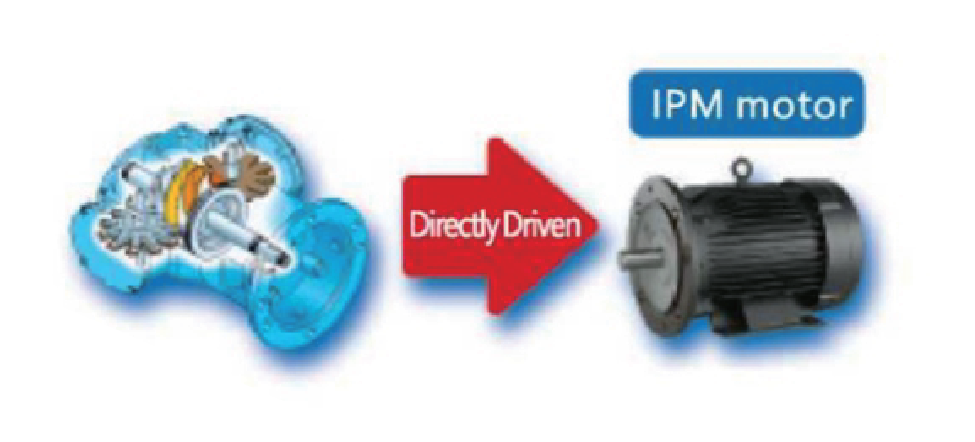

contamination of the compressed air. BESTRAND oil-freewater-lubricated
single-screw air compressor adopts the main unit and the motor directly
connected. It does not need any speed-increasing gears. The main engine only
has water and air, which greatly increases the safety, It is the best choice for
oil-free air compressors.

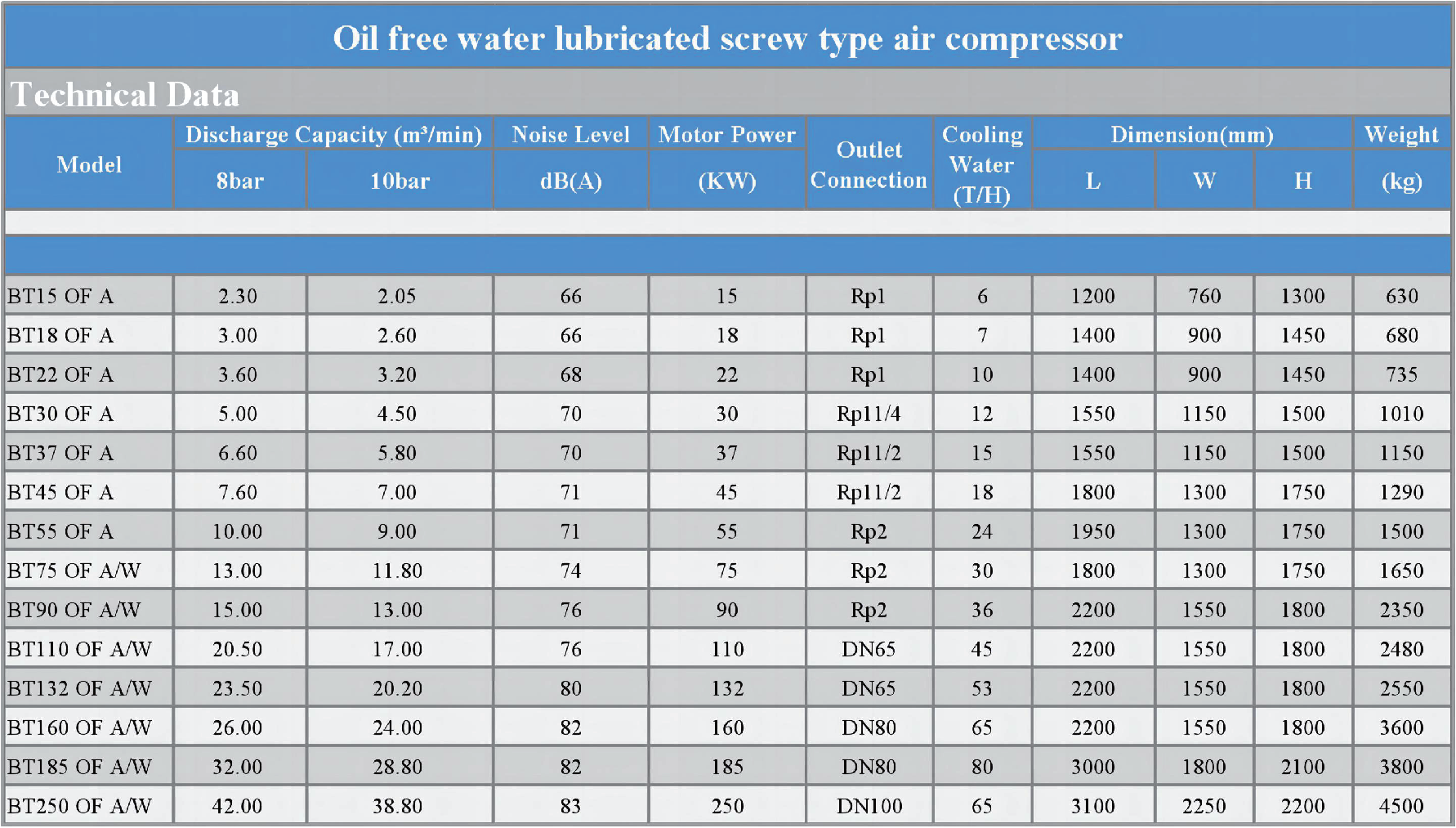

TECHNICAL SPECIFICATION
Oil Free Water Lubricated
